Slide 002: Printer Anatomy & Architecture

Slide Visual

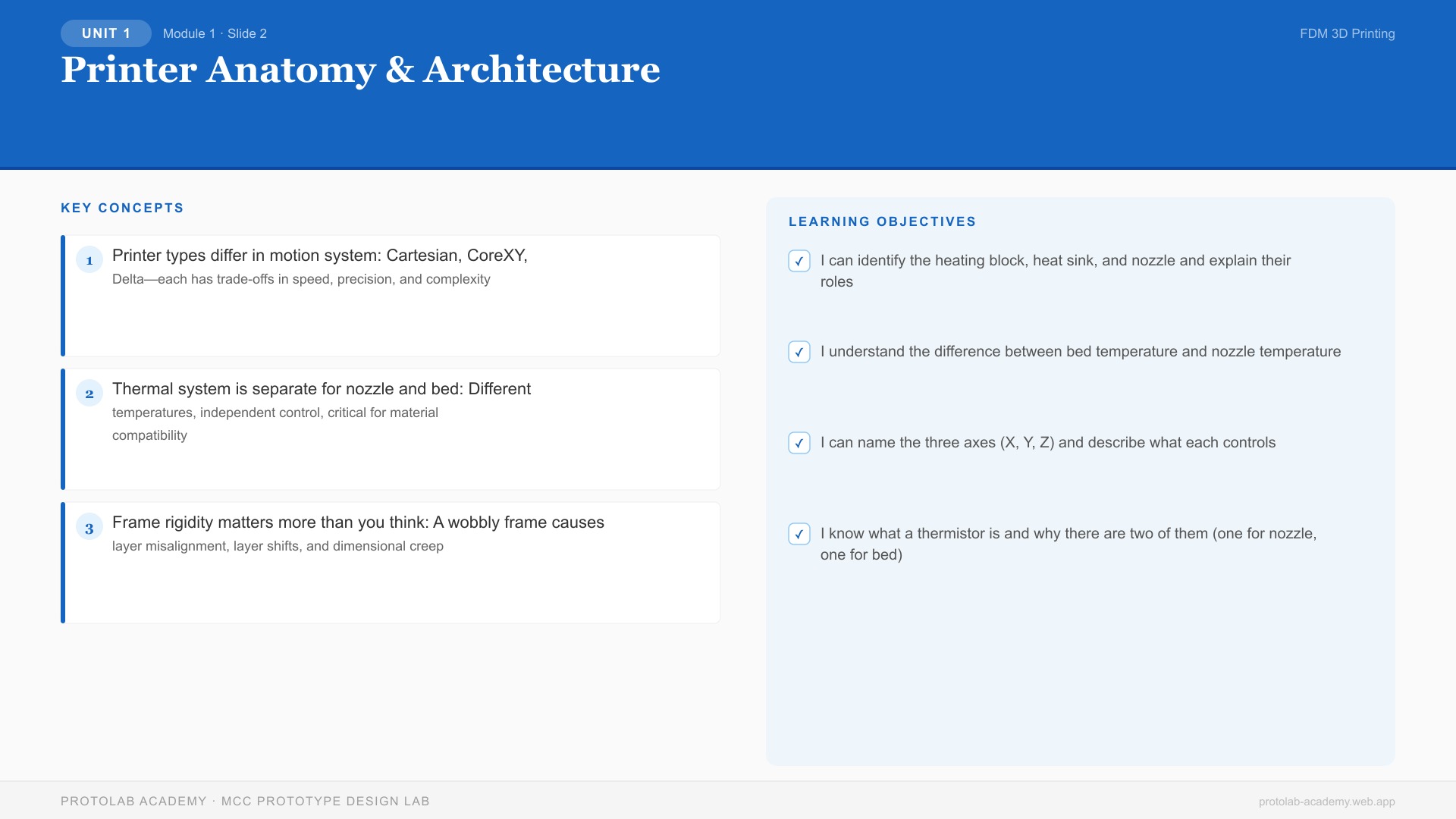

Printer Anatomy & Architecture

Slide Overview

This slide introduces the major mechanical and electrical components of a typical FDM printer, emphasizing the structural, thermal, motion, and control systems that work together to execute the extrusion process. Students learn to identify components by name and understand their functional role.

Instruction Notes

An FDM printer is an integrated system of mechanical (frame, motion, extrusion), thermal (heaters, thermistors), and electrical (stepper motors, firmware) subsystems. Understanding component relationships is essential for troubleshooting and maintenance.

Mechanical Systems

Frame & Structural Components - The frame (aluminum extrusion, steel, or plastic) provides rigid support for all moving parts - Rigid frame = accurate prints; flex in the frame causes layer shifting and dimensional inconsistency - Most printers use bolted aluminum extrusion (2020 or 2040 profiles) for modularity and adjustability - Frame must be square (checked with a diagonal measurement or level) to prevent uneven bed height

Build Platform (Bed) - Typically an aluminum plate (3-6mm thick) with glass, PEI, spring steel, or textured surface - Bed temperature is independently controlled (separate heater and thermistor from nozzle) - Surface finish affects adhesion: smooth glass requires careful leveling and adhesion aids; textured surfaces (PEI, spring steel) provide natural grip - Bed must be perfectly level relative to nozzle height (variation >0.1mm causes adhesion failures) - Heated bed melts filament base layer and reduces shrinkage/warping by maintaining temperature

Motion Systems (XY Plane) - Cartesian configuration: Separate motors for X (gantry), Y (bed movement), and Z (height) - X-axis motor drives a horizontal beam supporting the hot end - Y-axis motor moves the bed forward/backward - Z-axis stepper(s) control height via lead screws or belt drives - CoreXY configuration: Both X and Y controlled by two motors using crossed belt drive - Faster than Cartesian (both X and Y motors contribute to diagonal moves) - More complex mechanics; slightly harder to troubleshoot - Delta configuration: Three vertical motors controlling a triangular platform - Very fast; complex kinematics; less common in budget printers - Requires software compensation for non-Cartesian movements

Z-Axis (Height) Mechanism - Uses either a lead screw (slow, precise) or belt drive (fast, less precise) - Lead screw: 8mm diameter, 2-4mm pitch; lower backlash but slower speed (10-20 mm/s max) - Belt drive: MGN linear guides with toothed belt; can achieve 50+ mm/s but requires belt tension adjustment - Z-endstop sensor (mechanical switch or inductive probe) homes the Z-axis at startup - Backlash (lost motion when direction reverses) must be minimal or layer height becomes inconsistent

Thermal System

Nozzle & Heating Block - Heating block (aluminum) contains the nozzle and cartridge heaters (30-50W typical) - Thermistor (100kΩ NTC type) measures nozzle temperature and provides feedback to firmware - Nozzle typically 0.4mm, 0.6mm, or 0.8mm diameter (larger = faster but lower detail) - Heat breaks (insulating sections) separate the nozzle from the heat sink, preventing unwanted upward heat transfer - Nozzle design affects extrusion profile: narrow is precise but can jam; wide extrudes easily but less detailed

Heat Sink & Cooling Fan - Aluminum block (below nozzle) dissipates unwanted heat into the surrounding air - Fan (5000-8000 RPM) cools the heat sink to prevent filament pre-melting - Part cooling fan (separate, smaller, controllable) cools freshly printed plastic to solidify it quickly - Without part cooling, plastic cools too slowly, causing layer fusion and rounded edges

Bed Heater & Thermistor - Heating resistor (e.g., silicone heater pad, 200-500W) underneath the bed - Separate thermistor provides closed-loop temperature control - Bed heating power is critical: undersized heater means slow warm-up (wasteful); oversized heater causes temperature overshoot and bed warping - Most printers control bed temperature via PWM (pulse-width modulation), cycling on/off rapidly

Electrical Systems

Stepper Motors - NEMA 17 is standard (1.7" × 1.7" mounting face, ~2.8A typical) - Motors don't have feedback; firmware assumes each step = fixed distance traveled - Missed steps (jamming, load increase) cause layer shifting with no warning - Typically 1.8° per step (200 steps/rev) in full-step mode; firmware uses microstepping (16x, 32x) for smoother motion and finer resolution

Control Board & Firmware - Board (e.g., Melzi, Rambo, Duet) contains microcontroller (Arduino-compatible or 32-bit ARM) - Firmware (Marlin, Sprinter, Sailfish) executes G-code commands and manages temperature loops - Open-source firmware allows customization; proprietary firmware may be restricted - Firmware updates can improve reliability and add features but risk bricking if interrupted

Power Supply - Typically 24V (safer than 12V) delivering 10-30A (240-720W total) - Separate power paths: logic power (low current) and heating power (high current) - Voltage regulators convert 24V to 5V for logic circuits - Power supply failure is common in high-duty printers; 80+ Bronze efficiency rated supplies reduce thermal stress

Safety Components

  • Thermal cutoff (fuses) on heater power paths prevent runaway heating
  • Thermistor open-circuit detection in firmware triggers alarm if sensor disconnects (safety feature)
  • Endstop switches (mechanical or optical) prevent over-travel and establish coordinate frame

Key Talking Points

  1. Printer types differ in motion system: Cartesian, CoreXY, Delta—each has trade-offs in speed, precision, and complexity
  2. Thermal system is separate for nozzle and bed: Different temperatures, independent control, critical for material compatibility
  3. Frame rigidity matters more than you think: A wobbly frame causes layer misalignment, layer shifts, and dimensional creep
  4. Endstops establish home position: Firmware trusts the endstop location; if endstop is misaligned, all coordinates are wrong
  5. Stepper motors have no feedback: They assume every commanded step succeeds; if jam occurs, the motor stalls and shifts silently

Learning Objectives (Component Identification)

  • [ ] I can identify the heating block, heat sink, and nozzle and explain their roles
  • [ ] I understand the difference between bed temperature and nozzle temperature
  • [ ] I can name the three axes (X, Y, Z) and describe what each controls
  • [ ] I know what a thermistor is and why there are two of them (one for nozzle, one for bed)
  • [ ] I can explain why the frame must be rigid and square

Adaptations for Different Learning Styles

Visual Learners

  • Provide large labeled diagram with color-coding (mechanical = blue, thermal = red, electrical = yellow)
  • 360° printer model or interactive clickable diagram (if digital delivery)
  • Use photos of actual printers annotated with component names

Kinesthetic Learners

  • If safe, let students feel the bed heating (not hot enough to burn, but noticeably warm)
  • Allow hands-on inspection of a disabled/offline printer: trace motor wires, touch the frame to assess rigidity
  • Demonstrate stepper motor movement: manually turn shaft, show micro-stepping effect

Auditory Learners

  • Play recordings of printer sounds: stepper motors moving, heating fan running, cooling fan at different speeds
  • Discuss "why does my printer sound different today?" → listen for signs of problems
  • Narrative approach: "Watch what happens as the printer warms up: heating fan kicks on, bed temperature rises, nozzle stabilizes..."

Reading/Writing Learners

  • Provide detailed component datasheet handout (motor specs, thermistor resistance curves, etc.)
  • Reflection: "List 3 components that must work together for the first layer to succeed"
  • Reference chart: "XY vs. CoreXY: Comparison Table"

Standards and References

ANSI/ISO 52901:2020 - Additive Manufacturing General Principles: - Section 5.1: Machine components must be designed and maintained per manufacturer specifications - Section 5.3: Thermal systems must have fail-safes to prevent uncontrolled temperature excursions

ISO 52911-1:2019 - Design and Modeling Part 1: - Specifies tolerance requirements; machine architecture affects achievable tolerances - Cartesian & CoreXY can achieve ±0.2mm; Delta typically ±0.3-0.5mm due to kinematics complexity

NEMA 17 Motor Standard (National Electrical Manufacturers Association): - Defines physical form factor and electrical specifications - Standard holding torque: ~0.4 N⋅m; typical current draw: 2.0-2.8A

Session Details

  • Time Allocation: 25 minutes (presentation + component identification activity)
  • Activity Breakpoint: After slide, conduct 5-minute "Component Scavenger Hunt" on actual printer or high-res photo

Discussion Prompts

  1. Design Consequence: "Why is CoreXY faster than Cartesian? What trade-off did engineers make?"
  2. Troubleshooting Mindset: "If your X-axis stepper motor stops moving, list 5 things that could be wrong"
  3. Maintenance: "Why is bed leveling necessary every 10-20 prints, even on the same printer?"
  4. Component Failure: "If your thermistor fails open (disconnects), what happens and how does firmware respond?"

Instructor Notes

  • Have a dissected printer or transparent printer available to show component locations in person
  • If real printer unavailable, use interactive 3D model or detailed exploded diagram video
  • Emphasize that students don't need to memorize part numbers; they need to recognize components by function
  • Common question: "Why two separate temperature controls?" Answer: Nozzle must be hot to extrude, but bed is much cooler (except for ABS/Nylon)
  • Safety note: Active printers have hot components. Never allow students to touch nozzle, bed, or moving parts without adult supervision

Accommodations for Neurodiversity

ADHD Support

  • Provide component checklist: "Find these 10 parts on the printer [list with checkboxes]"
  • Use color-coded diagram (each system a different color)
  • Offer kinesthetic component identification game (label and place stickers)
  • Frequent transitions: 5 min slide → 2 min movement break → 5 min activity

Autism Spectrum Support

  • Provide detailed component list with definitions (e.g., "Thermistor: Resistor that changes resistance with temperature")
  • Explicit connections: "NEMA 17 motor [image] is used for X, Y, and Z axes—three motors total"
  • Offer single-component deep dive option: students choose one component to learn in detail

Dyslexia Support

  • Use visual-heavy slides with minimal text
  • Provide printed component anatomy chart with photos (not just drawings)
  • Use consistent color coding throughout all materials
  • Offer audio description: record slide narration for review

Sensory Processing Support

  • FDM printer demonstration can be loud (stepper motors, cooling fan). Offer quiet observation or noise-cancelling headphones
  • Avoid rapid color flashing or strobing in diagrams
  • Advance notice if any heating demo will occur (heat can be sensory-overloading for some)
