Slide 003: Thermoplastic Materials & Properties

Slide Visual

Slide Overview

This slide covers the fundamental properties of thermoplastic materials used in FDM printing (PLA, ABS, PETG, TPU, Nylon), including glass transition temperature (Tg), crystallinity, tensile strength, thermal expansion coefficient, and how these properties affect print settings and part performance.

Instruction Notes

Thermoplastics are polymers that soften with heat and harden when cool, reversibly. FDM printing exploits this property: melt filament, shape it, cool it. Understanding material behavior is critical to setting up printers and predicting part properties.

Fundamental Properties

Glass Transition Temperature (Tg) - The temperature at which amorphous regions of polymer transition from rigid (glassy) to soft (rubbery) - Below Tg: material is brittle, rigid, suitable for structural parts - Above Tg: material is soft, flexible, loses dimensional stability - Different materials have very different Tg values: - PLA: 60-65°C (lowest; easy to print but limited heat resistance) - ABS: 105-110°C (high; good strength retention but prone to warping) - PETG: 75-85°C (middle ground; good balance of properties) - Nylon: 47°C unfilled, 80-90°C with glass-fill (varies by formulation) - TPU (flexible): varies by durometer, typically -20 to +40°C range (very soft at room temp)

Crystallinity: Amorphous vs. Semi-Crystalline - Amorphous materials (PLA): Polymer chains are randomly oriented. Properties transition sharply at Tg. Very transparent. Easier to print because less warping. - PLA is amorphous (or partially crystalline if annealed) - Better surface finish, less warping, easier first-layer adhesion - Weakness: Lower heat deflection temperature; parts soften above 50-60°C

• Semi-crystalline materials (ABS, PETG, Nylon): Polymer chains organize into ordered regions (crystals) alongside amorphous regions. Broader transition across a temperature range. More opaque. Greater strength.
• Strength increases as crystallinity increases
• More warping during cooling because crystalline regions shrink more
• Better chemical resistance and dimensional stability at elevated temperature
• ABS: 40-50% crystalline; strength ~40 MPa
• PETG: 25-30% crystalline; strength ~50-60 MPa

Tensile Strength - Maximum stress the material can withstand before breaking under tension - PLA: 50-70 MPa injection-molded; 40-55 MPa 3D-printed parallel to layers, 20-30 MPa perpendicular (anisotropic; brittle, breaks suddenly) - ABS: 40-45 MPa (ductile; bends before breaking) - PETG: 50-60 MPa (balanced; good impact resistance) - Nylon: 60-80 MPa (ductile and tough; excellent flexibility) - TPU: 20-30 MPa (designed to stretch; extreme elongation before failure)

Important caveat: Printed parts are anisotropic—strength is directional. - Parallel to extrusion (layers stacked in Z direction): strong (close to bulk material) - Perpendicular to extrusion (between layers): weak (only as strong as layer-to-layer adhesion) - Typical anisotropy ratio: 60-80% of parallel strength when testing perpendicular direction

Thermal Expansion Coefficient (CTE) - How much material expands/contracts per degree temperature change - PLA: ~70 ppm/K (moderate shrinkage; minimal warping) - ABS: ~75 ppm/K (slightly higher; significant warping if cooled too fast) - PETG: ~80 ppm/K (moderate; similar to ABS in practice) - Nylon: ~80-100 ppm/K (high; requires heated bed and slow cooling) - Example: A 100mm ABS part cooling from 80°C to 20°C shrinks by: 100mm × 75 ppm × 60K = 0.45mm. This differential shrinkage across a part causes warping and curling.

Moisture Absorption - Hygroscopic materials absorb water from air, which affects extrusion - PLA: Low (~0.02% after 24h saturation in water) - ABS: Low (~0.15% after 24h) - PETG: Low (~0.04%) - Nylon: High (~0.8% after 24h) - Water acts as a plasticizer, lowering Tg and causing reduced tensile strength - Damp filament extrudes inconsistently (diameter varies, creating wet POP sounds and under-extrusion) - Solution: Store in dry box with desiccant; pre-dry Nylon and other hygroscopic materials

Material Selection Logic

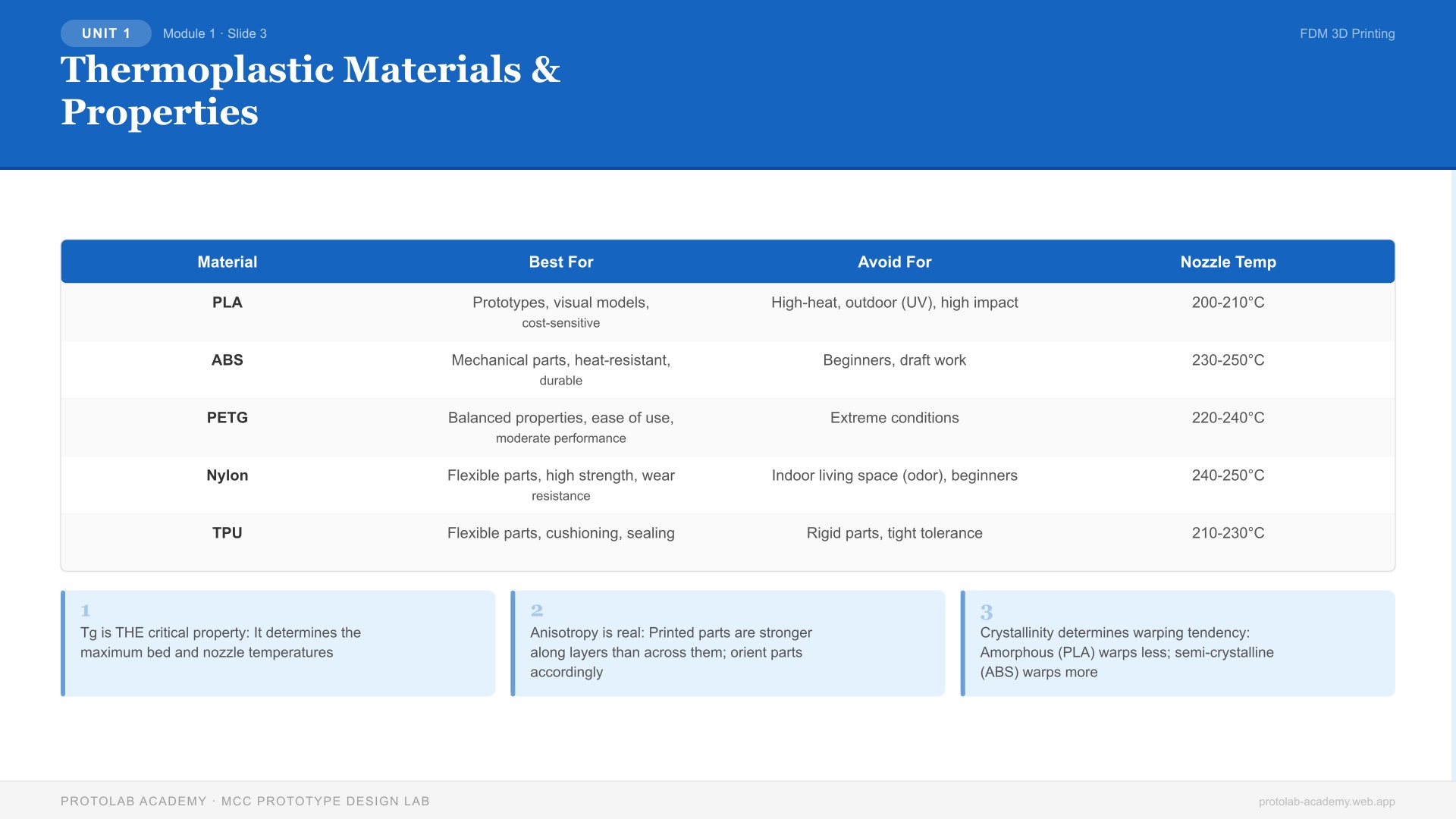

Material	Best For	Avoid For	Nozzle Temp	Bed Temp
PLA	Prototypes, visual models, cost-sensitive	High-heat, outdoor (UV), high impact	200-210°C	20-60°C
ABS	Mechanical parts, heat-resistant, durable	Beginners, draft work	230-250°C	80-100°C
PETG	Balanced properties, ease of use, moderate performance	Extreme conditions	220-240°C	70-90°C
Nylon	Flexible parts, high strength, wear resistance	Indoor living space (odor), beginners	240-250°C	70-85°C
TPU	Flexible parts, cushioning, sealing	Rigid parts, tight tolerance	210-230°C	20-60°C

Material Cost & Availability

• PLA: $15-25/kg (cheapest, widely available, bio-based option)
• PETG: $20-30/kg (slightly more expensive, excellent properties)
• ABS: $18-28/kg (variable; more difficult to source than PLA)
• Nylon: $35-60/kg (premium; specialty suppliers only)
• TPU: $40-80/kg (expensive; specific suppliers)

Key Talking Points

1. Tg is THE critical property: It determines the maximum bed and nozzle temperatures
2. Anisotropy is real: Printed parts are stronger along layers than across them; orient parts accordingly
3. Crystallinity determines warping tendency: Amorphous (PLA) warps less; semi-crystalline (ABS) warps more
4. Moisture is your enemy: Damp filament extrudes poorly; store materials dry
5. There's no "best" material: Each material is optimized for different applications

Learning Objectives

• [ ] I can explain the difference between Tg and melting point
• [ ] I know which materials are amorphous and which are semi-crystalline
• [ ] I can predict whether a material will warp based on CTE and crystallinity
• [ ] I understand why Nylon is more difficult to print than PLA
• [ ] I can select an appropriate material for a given functional requirement

Standards and References

ISO 527-2:2012 - Determination of Tensile Properties Part 2: Test Conditions for Plastic Materials: - Defines standard tensile testing methods; provides baseline values for comparison - Specifies how to test printed specimens, accounting for anisotropy

ASTM D638 - Standard Test Method for Tensile Properties of Plastics: - Mechanical properties data for unfilled thermoplastics; used as reference for bulk material comparison

DIN EN ISO 11357-1:2016 - Determination of Composition by Thermal Analysis (DSC): - Describes how Tg and crystalline transition temperatures are measured - Reference for understanding material datasheets

Session Details

• Time Allocation: 20 minutes (presentation + material datasheet analysis)
• Activity Breakpoint: Provide material samples (small pieces) and datasheets; students identify properties

Discussion Prompts

1. Material Selection: "I need a part that flexes without breaking. What material should I choose and why?"
2. Warping Prevention: "ABS warps. How can I prevent warping without changing the material?"
3. Cost vs. Performance: "PETG costs 20% more than PLA but has better properties. When is it worth the premium?"
4. Unexpected Failure: "My ABS print shattered when I bumped it. My PETG print bent. Why different behavior?"

Accommodations for Neurodiversity

ADHD Support

• Provide material comparison chart (visual, color-coded by property)
• Use physical samples students can handle to reinforce abstract properties
• Chunked content: "Let's learn one material at a time: First, PLA [5 min]. Next, ABS [5 min]..."

Autism Spectrum Support

• Provide consistent terminology: always say "Glass Transition Temperature (Tg)" not "transition point" or "softening temperature"
• Create detailed comparison table with all properties in one place (not scattered across slides)
• Explicit connections: "This property [CTE] affects this outcome [warping]"

Dyslexia Support

• Use large font (16pt) for material names and key properties
• Color-code material types (PLA = blue, ABS = red, etc.) consistently
• Provide printed material comparison chart with images of typical printed parts

Sensory Processing Support

• Material samples can have strong odors (Nylon, ABS, PETG). Offer pre-warning and option to participate without handling samples
• Avoid sudden transitions to strong images or bright colors when switching materials

---

Last Updated: 2026-03-18
