Slide 002: Filament Loading and Temperature Profiles¶

Slide Visual¶

Filament Loading and Temperature Profiles

Slide Overview¶

This slide covers the correct procedures for loading and unloading filament, material changeover protocols, and temperature profile management. Students learn how nozzle temperature, bed temperature, and cooling fan settings interact to produce optimal results for each material type.

Instruction Notes¶

The Filament Path¶

Understanding the physical path filament takes through the printer is essential for loading, unloading, and troubleshooting:

Spool → Guide Tube: Filament unwinds from the spool and enters a PTFE (Teflon) guide tube. This tube must be free of kinks, debris, and excessive friction. A kinked guide tube is a common cause of under-extrusion.
Guide Tube → Drive Gear: The filament reaches the extruder drive mechanism. The hobbed gear (toothed metal wheel) and idler bearing grip the filament from both sides. Spring tension must be calibrated — too loose and filament slips; too tight and the gear grinds into the filament.
Drive Gear → Heat Break: The filament passes through the heat break — a narrow-diameter metal tube that separates the cold end from the hot end. The heat break is actively cooled by a heat sink and fan. If the heat break gets too hot, filament softens prematurely and jams (known as "heat creep").
Heat Break → Heating Block → Nozzle: The filament enters the heating block, melts, and is forced through the nozzle orifice by the pressure from the drive gear above.

Loading Procedure (Step by Step)¶

Preheat the nozzle to the target material's printing temperature
Cut filament tip at a 45-degree angle (creates a point that feeds more easily)
Release drive gear tension (if adjustable) to allow filament insertion
Insert filament through the guide tube and into the drive gear
Engage drive gear and use the printer's "Load Filament" command or manually push
Extrude 50-100mm until the new material flows cleanly and consistently
Verify: extrusion should be straight down (not curling), consistent width, correct color

Unloading Procedure¶

Heat nozzle to the current material's printing temperature
Retract filament using the printer's "Unload" command (retracts 400-600mm)
If filament breaks: heat nozzle to 10°C above normal, push new filament through to clear the remnant
Never pull cold filament — it will snap inside the hot end and create a difficult clog

Temperature Profiles by Material¶

Each material has an optimal temperature window for nozzle, bed, and cooling:

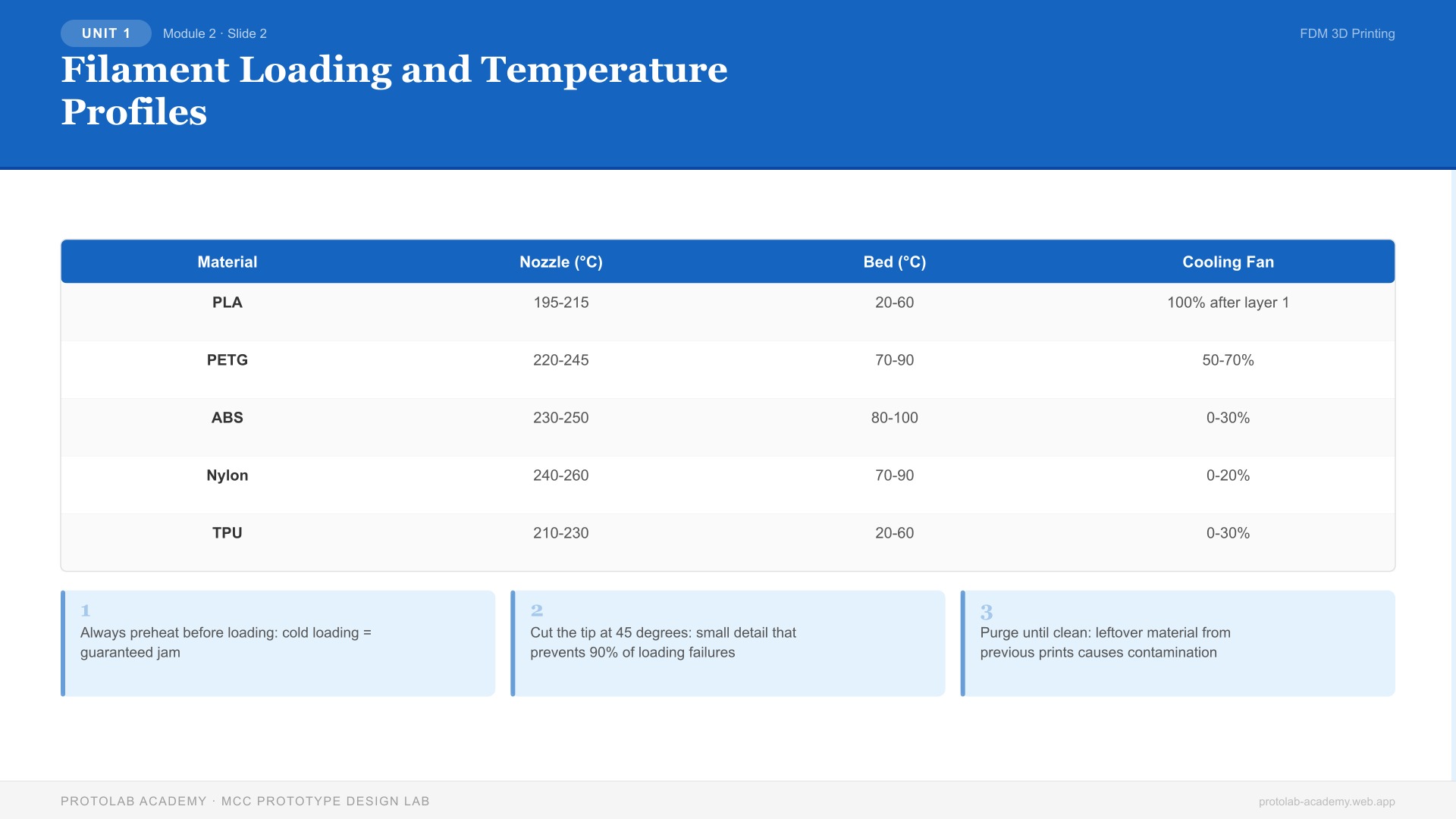

Material	Nozzle (°C)	Bed (°C)	Cooling Fan	Chamber
PLA	195-215	20-60	100% after layer 1	Open
PETG	220-245	70-90	50-70%	Open
ABS	230-250	80-100	0-30%	Enclosed preferred
Nylon	240-260	70-90	0-20%	Enclosed required
TPU	210-230	20-60	0-30%	Open

First Layer Exception: Many profiles reduce cooling fan to 0% for the first 1-3 layers to maximize bed adhesion, then ramp up to the target percentage.

Material Changeover Protocol¶

Switching between materials requires careful purging to prevent contamination: - Same material family (PLA to PLA, different color): Purge 100mm at printing temp - Similar temperature (PLA to PETG): Purge at higher material's temp until clean - Different temperature (ABS to PLA): Unload at ABS temp, load at intermediate temp (230°C), purge, then reduce to PLA temp - Critical: Nylon and ABS residue in the nozzle can contaminate PLA prints with brown specks. Always purge thoroughly.

Drive Gear Tension Calibration¶

The idler spring tension controls how firmly the drive gear grips the filament: - Too loose: Filament slips, under-extrusion, clicking sounds from skipped steps - Correct: Light tooth marks visible on retracted filament, consistent extrusion - Too tight: Deep gouges in filament, filament dust/shavings, eventual clogging

Calibration method: Tighten until clicking stops during a test print, then add 1/4 turn more. Check retracted filament for marks — light impressions are correct.

Key Talking Points¶

Always preheat before loading: cold loading = guaranteed jam
Cut the tip at 45 degrees: small detail that prevents 90% of loading failures
Purge until clean: leftover material from previous prints causes contamination
Temperature is material-specific: memorize the ranges or keep the reference chart posted
Drive gear tension is a Goldilocks problem: not too loose, not too tight

Learning Objectives (Concept Check)¶

[ ] I can load and unload filament safely and correctly
[ ] I know the temperature profiles for PLA, PETG, ABS, Nylon, and TPU
[ ] I understand why material changeover requires purging at the higher temperature
[ ] I can diagnose drive gear tension problems by examining retracted filament
[ ] I understand the role of the heat break and why heat creep causes jams

Adaptations for Different Learning Styles¶

Visual Learners¶

Cross-section diagram of the filament path with temperature zones color-coded
Photo comparison: correct vs. over-ground vs. under-gripped filament marks
Temperature profile bar chart comparing all five materials

Kinesthetic Learners¶

Live loading/unloading practice on a printer (each student performs the procedure)
Examine retracted filament samples to identify correct vs. incorrect drive gear marks
Adjust drive gear tension and observe the effect on extrusion quality

Auditory Learners¶

Verbal walkthrough of loading procedure with emphasis on "listen for the click" moments
Discuss common failure sounds: grinding = too tight, clicking = too loose or clogged
Think-pair-share: "What temperature would you set for switching from PETG to PLA?"

Reading/Writing Learners¶

Printed temperature profile reference card (laminated for station use)
Written loading/unloading procedure checklist
Journaling prompt: "Describe the filament path from spool to nozzle in your own words"

Standards and References¶

ISO/ASTM 52900:2021 - Additive Manufacturing Terminology: - Defines material extrusion process parameters including temperature control

Material Manufacturer Datasheets: - Each filament brand publishes recommended temperature ranges on the spool label - Always verify manufacturer recommendations before using generic profiles

Session Details¶

Time Allocation: 25 minutes (12 min presentation + 13 min hands-on)
Breakpoints for Discussion:
After filament path: "Where in this path would a jam most likely occur?" (Answer: heat break)
After loading procedure: "Why do we cut at 45 degrees?" (Answer: reduces catch points)
After temperature profiles: "Why does ABS need an enclosed chamber?" (Answer: maintains ambient temp, reduces warping)

Accommodations for Neurodiversity¶

ADHD Support¶

Printed loading checklist (7 steps) with checkboxes
Hands-on practice immediately after explanation (reduces passive listening time)
Use color-coded filament samples to maintain visual engagement

Autism Spectrum Support¶

Exact numeric values for all temperatures (not "about 200" but "200°C ± 5°C")
Predictable sequence: always load in the same order of steps
Clear transition signals between presentation and practice phases

Dyslexia Support¶

Temperature profile card uses large fonts and color coding (red = hot, blue = cool)
Icon-based loading procedure (pictures > text)
Pre-labeled filament samples with large-print material names

Sensory Processing Support¶

Hot end is at printing temperature during demo — maintain safe distance
Filament loading involves mechanical clicking sounds — forewarn students
Some filaments (ABS especially) have a noticeable odor when heated — ensure ventilation

Last Updated: 2026-03-19 Content Review: Q1 2026
