Slide 003: First Layer Optimization and Mechanical Alignment¶

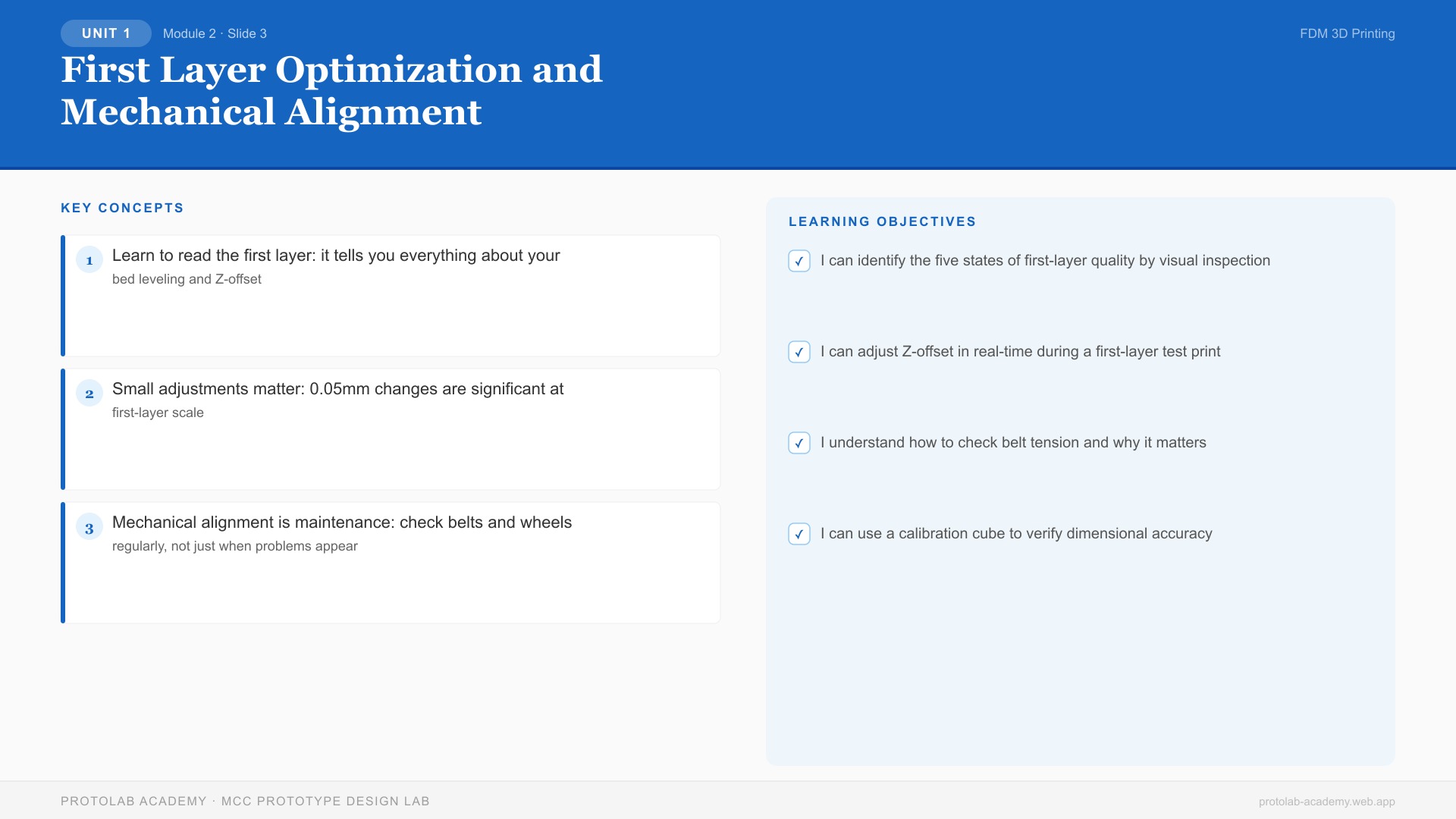

Slide Visual¶

First Layer Optimization and Mechanical Alignment

Slide Overview¶

This slide covers the critical skill of achieving a perfect first layer through Z-offset tuning, and the mechanical alignment checks that ensure dimensional accuracy. Students learn to read first-layer indicators, adjust Z-offset in real-time, and verify printer geometry through calibration prints.

Instruction Notes¶

First Layer Quality: The Visual Diagnostic¶

The first layer is the foundation of every print. Learning to "read" the first layer is the single most valuable diagnostic skill in FDM printing.

The Five States of First Layer Quality:

Way too far (Z-offset too high, >0.3mm gap): Filament falls onto the bed like spaghetti. No adhesion. Lines are round in cross-section, do not touch each other. Print will detach within minutes.
Slightly too far (gap ~0.2-0.3mm): Lines are laid down but barely pressed. Translucent appearance. Gaps visible between adjacent lines. May stick initially but fails during printing.
Perfect (gap ~0.1-0.15mm): Lines are slightly squished flat. Opaque. Adjacent lines overlap slightly with no gaps. Smooth surface when touched. Consistent width across the entire first layer.
Slightly too close (gap <0.05mm): Lines are over-compressed. Ridges form between adjacent lines (excess plastic pushed up). Nozzle may scrape through material. Surface feels rough/ridged.
Way too close (nozzle touching bed): No extrusion possible. Nozzle scrapes the bed surface, potentially damaging the build plate coating. Motor clicking as filament cannot exit.

Z-Offset Adjustment: Live Tuning¶

Most printers allow real-time Z-offset adjustment during the first layer. This is the recommended tuning method:

Start a first-layer test print (large square or grid pattern)
Observe the first few lines of extrusion
Adjust Z-offset in 0.02-0.05mm increments:
If lines are too thin/translucent: decrease Z-offset (bring nozzle closer)
If ridges form: increase Z-offset (move nozzle away)
Continue adjusting until the entire first layer is uniform
Save the Z-offset value to printer memory

Critical Rule: Make small adjustments. A 0.05mm change is significant at this scale — it represents 25% of a typical 0.2mm first layer height.

Mechanical Alignment Verification¶

After bed leveling and Z-offset, mechanical alignment ensures the printer produces dimensionally accurate parts.

Belt Tension Check: - Loose belts cause layer shifts, ringing artifacts, and dimensional errors - Test: Press the belt with a finger — deflection should be 2-3mm maximum - Sound test: Pluck the belt — it should produce a low-pitched musical note, not a dull thud - Adjustment: Most printers have belt tensioners (screw or slider mechanism) - Frequency: Check every 20-30 prints or after any transport

Frame Squareness: - The X and Y axes must be perpendicular (90 degrees) - Verify by printing a 40mm x 40mm calibration cube - Measure diagonals with calipers — they should be equal (within ±0.2mm) - If unequal: check frame bolts, gantry alignment, and rail parallelism

Lead Screw / Z-Axis Alignment: - The Z-axis lead screw must be straight and properly coupled to the motor - A bent lead screw causes periodic Z-wobble (visible as a repeating pattern in the print surface) - Verify: Slowly jog Z up 100mm and watch for lateral wobble at the coupler - Z-wobble period = lead screw pitch (typically 8mm per revolution on T8 lead screws)

Eccentric Nut Adjustment (V-Slot Printers): - V-slot wheels ride on aluminum extrusions - Eccentric nuts adjust wheel preload against the rail - Test: Try to rock the gantry/bed on its wheels — there should be zero play but no binding - Too loose: wobble and dimensional inaccuracy - Too tight: increased friction, missed steps, premature wheel wear

Calibration Print Sequence¶

A complete calibration check uses three test prints in sequence:

First-layer test (single-layer square): Verifies Z-offset and bed leveling
Calibration cube (20mm x 20mm x 20mm): Verifies dimensional accuracy in X, Y, Z
Temperature tower (multi-temp test): Identifies optimal nozzle temperature for current material

Expected results: - Calibration cube dimensions: 20.0mm ±0.1mm in all three axes - Temperature tower: identify the temperature with best overhang, bridging, and surface quality

Key Talking Points¶

Learn to read the first layer: it tells you everything about your bed leveling and Z-offset
Small adjustments matter: 0.05mm changes are significant at first-layer scale
Mechanical alignment is maintenance: check belts and wheels regularly, not just when problems appear
Calibration cubes are your truth test: print one after any maintenance or adjustment
Z-wobble has a signature: if you see a repeating pattern, check the lead screw

Learning Objectives (Concept Check)¶

[ ] I can identify the five states of first-layer quality by visual inspection
[ ] I can adjust Z-offset in real-time during a first-layer test print
[ ] I understand how to check belt tension and why it matters
[ ] I can use a calibration cube to verify dimensional accuracy
[ ] I know the signs of mechanical misalignment and how to correct them

Adaptations for Different Learning Styles¶

Visual Learners¶

Photo gallery of all five first-layer states (labeled, high-resolution close-ups)
Side-by-side comparison of calibration cubes: good vs. loose belt vs. bent lead screw
Video showing Z-offset adjustment in real-time on a live printer

Kinesthetic Learners¶

Each student adjusts Z-offset on a running printer to achieve perfect first layer
Belt tension exercise: feel the difference between loose, correct, and over-tight
Eccentric nut adjustment practice on a spare gantry assembly

Auditory Learners¶

Describe what the first layer "should look like" vs. common failures
Belt "pluck test" — listen to the difference between loose and tight
Group troubleshooting: "I'll describe a first layer symptom, you tell me the fix"

Reading/Writing Learners¶

First-layer diagnostic flowchart (symptom → cause → fix)
Written calibration procedure checklist
Reflection: "What is the relationship between Z-offset and first-layer adhesion?"

Standards and References¶

ISO 286-1:2010 - Geometrical product specifications: - Tolerance system for linear dimensions applicable to calibration cube measurements

Printer Manufacturer Guidelines: - Belt tension specifications vary by model — always consult manual - Lead screw lubrication intervals: typically every 3-6 months

Session Details¶

Time Allocation: 30 minutes (10 min presentation + 20 min calibration practice)
Breakpoints for Discussion:
After five states: "Which state is most common for beginners?" (Answer: too far)
After Z-offset: "Why do we adjust in 0.02mm steps, not 0.1mm?" (Answer: 0.1mm is half the first layer)
After mechanical alignment: "How often should you check belt tension?" (Answer: every 20-30 prints)

Accommodations for Neurodiversity¶

ADHD Support¶

Focus on one adjustment at a time — do not combine Z-offset and belt checks simultaneously
Use a physical Z-offset adjustment dial if available (tactile feedback maintains engagement)
Short bursts: 5 minutes instruction, 5 minutes practice, rotate

Autism Spectrum Support¶

Provide exact target measurements: "20.0mm ±0.1mm" not "about 20mm"
Systematic procedure: always calibrate in the same order (level → Z-offset → belts → cube)
Written criteria for "pass" vs. "fail" on each calibration step

Dyslexia Support¶

Photo-based diagnostic guide (match your first layer to the photo)
Color-coded measurement results (green = in spec, red = out of spec)
Verbal instructions available alongside written procedures

Sensory Processing Support¶

Belt plucking and adjustment involves moderate noise — forewarn
Printer homing sequence is loud — offer hearing protection option
Fine Z-offset adjustment requires patience — allow extended practice time without pressure

Last Updated: 2026-03-19 Content Review: Q1 2026
