Slide 002: Resin Chemistry and Material Types¶

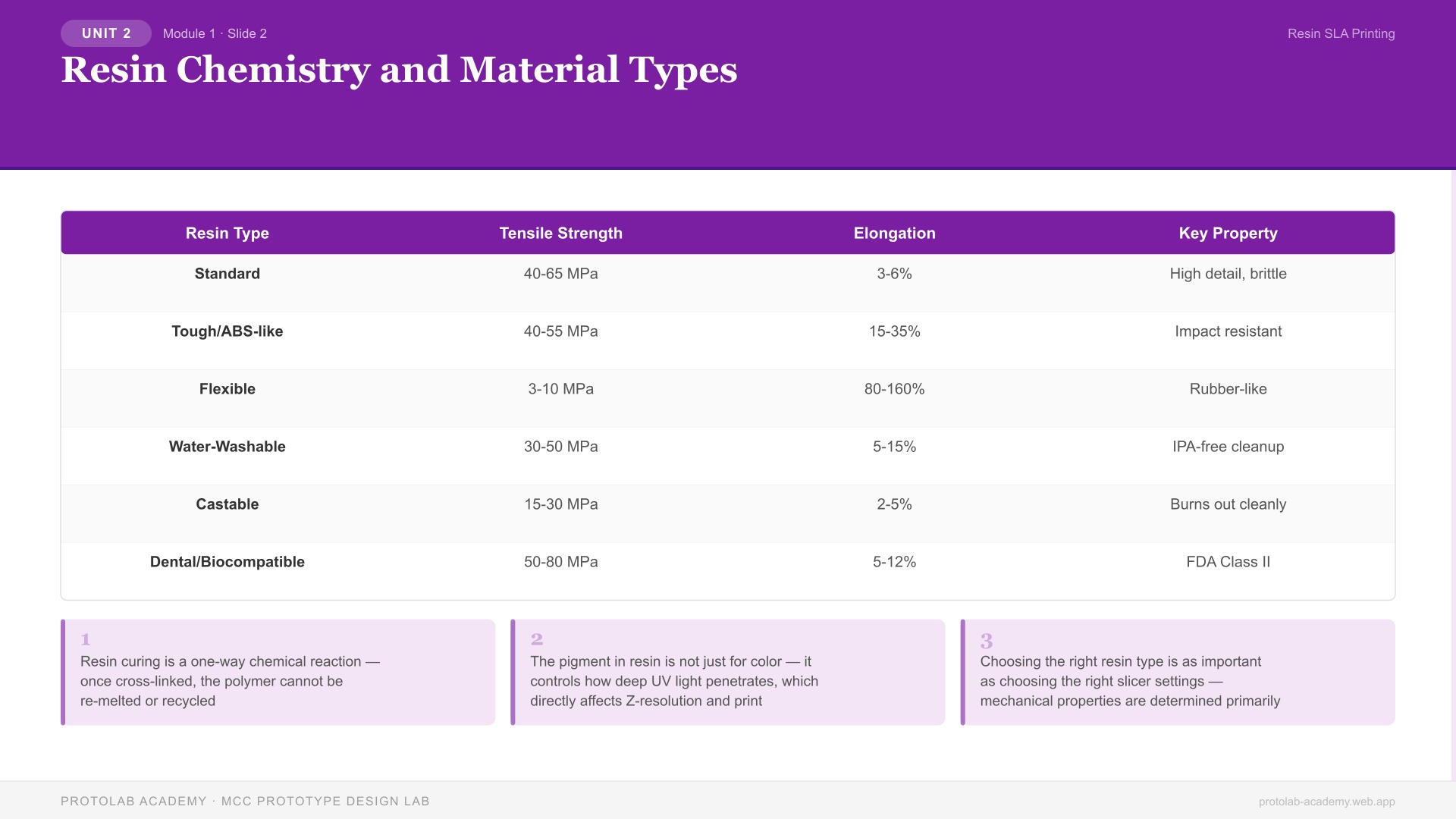

Slide Visual¶
Slide Overview¶
This slide dives into the chemistry of photopolymer resins, explaining how the three main chemical components work together. Students will learn to select the appropriate resin type based on application requirements and understand how resin chemistry affects both printing parameters and final part properties.
Instruction Notes¶
Resin Chemistry Basics¶
Photopolymer resins are complex chemical formulations with three essential components:
1. Monomers and Oligomers (70-90% of formulation) These are the building blocks of the final polymer. Monomers are small, single-unit molecules (typically acrylates or methacrylates). Oligomers are pre-linked chains of 2-20 monomer units. The ratio of monomers to oligomers controls the viscosity of the liquid resin and the cross-link density of the cured solid. Higher cross-link density = harder and more brittle. Lower density = more flexible but softer.
2. Photoinitiators (1-5% of formulation) These are the light-sensitive molecules that start the curing reaction. When a photoinitiator absorbs a UV photon at the correct wavelength (typically 385nm or 405nm), it undergoes photolysis — splitting into free radicals. These highly reactive fragments attack the carbon-carbon double bonds in acrylate monomers, starting a chain reaction that propagates through the liquid. Common photoinitiators include TPO (diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide) for 385nm and Irgacure 819 for 405nm.
3. Additives (5-20% of formulation) - Pigments/dyes: Provide color and control light penetration depth (critical for Z-resolution) - UV absorbers: Limit light penetration to prevent over-curing of lower layers - Flexibilizers: Increase elongation and impact resistance (used in tough/flexible resins) - Fillers: Ceramic or metal particles for specialty applications (dental, casting)
Resin Type Selection Guide¶
| Resin Type | Tensile Strength | Elongation | Key Property | Application |
|---|---|---|---|---|
| Standard | 40-65 MPa | 3-6% | High detail, brittle | Prototypes, miniatures, models |
| Tough/ABS-like | 40-55 MPa | 15-35% | Impact resistant | Functional parts, enclosures |
| Flexible | 3-10 MPa | 80-160% | Rubber-like | Gaskets, grips, wearables |
| Water-Washable | 30-50 MPa | 5-15% | IPA-free cleanup | Classroom/beginner use |
| Castable | 15-30 MPa | 2-5% | Burns out cleanly | Jewelry, investment casting |
| Dental/Biocompatible | 50-80 MPa | 5-12% | FDA Class II | Dental models, surgical guides |
| High-Temp | 70-120 MPa | 3-8% | HDT 200-300°C | Injection mold inserts, tooling |
Resin Shelf Life and Storage¶
Unopened resin: 12-24 months. Opened: 6-12 months. Store at 15-25°C in opaque containers, away from UV light. Shake bottle thoroughly before each use to resuspend settled pigments and additives.
Key Talking Points¶
- Resin curing is a one-way chemical reaction — once cross-linked, the polymer cannot be re-melted or recycled
- The pigment in resin is not just for color — it controls how deep UV light penetrates, which directly affects Z-resolution and print accuracy
- Choosing the right resin type is as important as choosing the right slicer settings — mechanical properties are determined primarily by chemistry, not print parameters
Learning Objectives (Concept Check)¶
- [ ] Students can name the three chemical components of photopolymer resin and explain each role
- [ ] Students can select the appropriate resin type for a given application scenario
- [ ] Students can explain why pigment affects print accuracy, not just color
Last Updated: 2026-03-19
