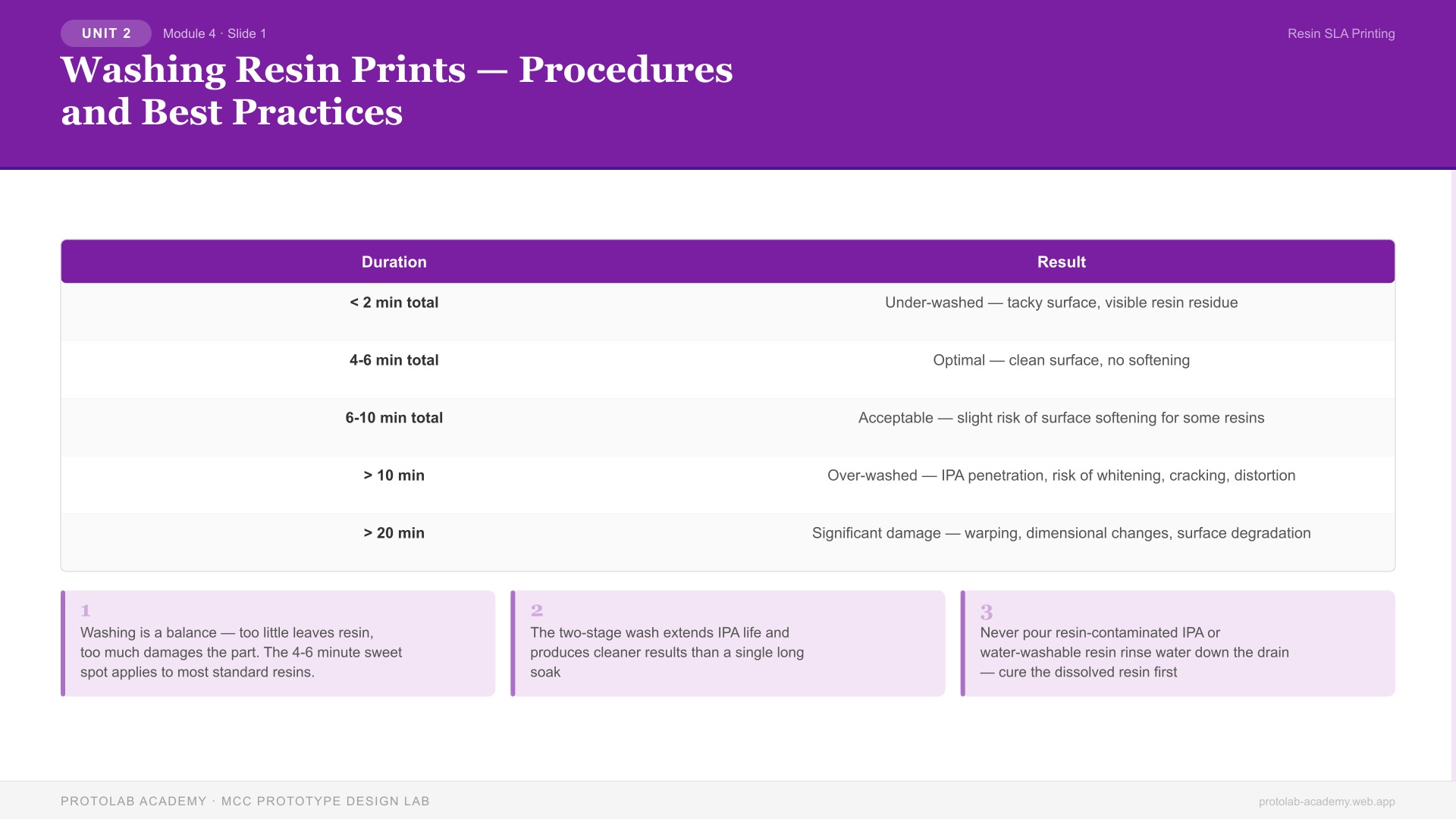

Slide 001: Washing Resin Prints — Procedures and Best Practices¶
Slide Visual¶
Slide Overview¶
This slide details the washing process that removes uncured resin from printed parts. Washing is the most time-sensitive post-processing step — both under-washing and over-washing cause distinct quality problems. Students will learn the two-stage wash method, timing parameters, and how to maintain IPA wash quality.
Instruction Notes¶
Why Washing Matters¶
A freshly printed resin part is coated in approximately 0.05-0.15mm of uncured liquid resin. This layer must be completely removed because: - Uncured surface resin prevents uniform post-curing, creating soft spots - If cured in place, it produces a rough, bumpy surface that obscures details - Uncured resin remains a skin sensitizer and environmental hazard - Trapped uncured resin in crevices continues to leach over time
Two-Stage Wash Method¶
Stage 1 — Dirty Wash (2-3 minutes): The first bath removes the bulk of uncured resin. This bath becomes contaminated quickly and is replaced more often. Use gentle agitation — swirl the part or use an ultrasonic cleaner at low power. The bath turns progressively cloudier as it absorbs dissolved resin.
Stage 2 — Clean Wash (2-3 minutes): The second bath provides a final rinse with cleaner IPA. This bath stays cleaner longer because most resin was removed in Stage 1. After this wash, the surface should feel smooth and non-tacky when touched with gloved fingers.
Critical Timing Parameters¶
| Duration | Result |
|---|---|
| < 2 min total | Under-washed — tacky surface, visible resin residue |
| 4-6 min total | Optimal — clean surface, no softening |
| 6-10 min total | Acceptable — slight risk of surface softening for some resins |
| > 10 min | Over-washed — IPA penetration, risk of whitening, cracking, distortion |
| > 20 min | Significant damage — warping, dimensional changes, surface degradation |
IPA Bath Maintenance¶
- Replace the dirty wash bath when it becomes visibly cloudy or dark
- Replace the clean wash bath when it starts to appear cloudy
- To recycle contaminated IPA: expose to UV light (sunlight) to precipitate dissolved resin, then filter through a paint strainer
- Typical IPA usage: 500mL per bath; a pair of baths can wash 20-40 small prints before replacement
- IPA concentration drops as water is absorbed from the air (hygroscopic) — replace if below ~85%
Alternative Wash Methods¶
- Water-washable resins: Use tap water instead of IPA. Wash for 3-5 minutes under running water. Do NOT pour wash water down the drain without UV-curing the dissolved resin first.
- Ultrasonic cleaners: Improve wash efficiency at 35-40kHz, 2-3 minutes. Reduce total wash time needed.
- Dedicated wash stations: Anycubic Wash & Cure, Elegoo Mercury — automate agitation and timing.
- Mean Green / Simple Green: Some users use these as less flammable IPA alternatives. Effectiveness varies by resin brand.
Key Talking Points¶
- Washing is a balance — too little leaves resin, too much damages the part. The 4-6 minute sweet spot applies to most standard resins.
- The two-stage wash extends IPA life and produces cleaner results than a single long soak
- Never pour resin-contaminated IPA or water-washable resin rinse water down the drain — cure the dissolved resin first
Learning Objectives (Concept Check)¶
- [ ] Students can perform a two-stage IPA wash within the correct time parameters
- [ ] Students can identify the signs of under-washing and over-washing
- [ ] Students can maintain and recycle IPA wash baths properly
Last Updated: 2026-03-19
