Slide 002: UV Post-Curing — Achieving Full Material Properties¶

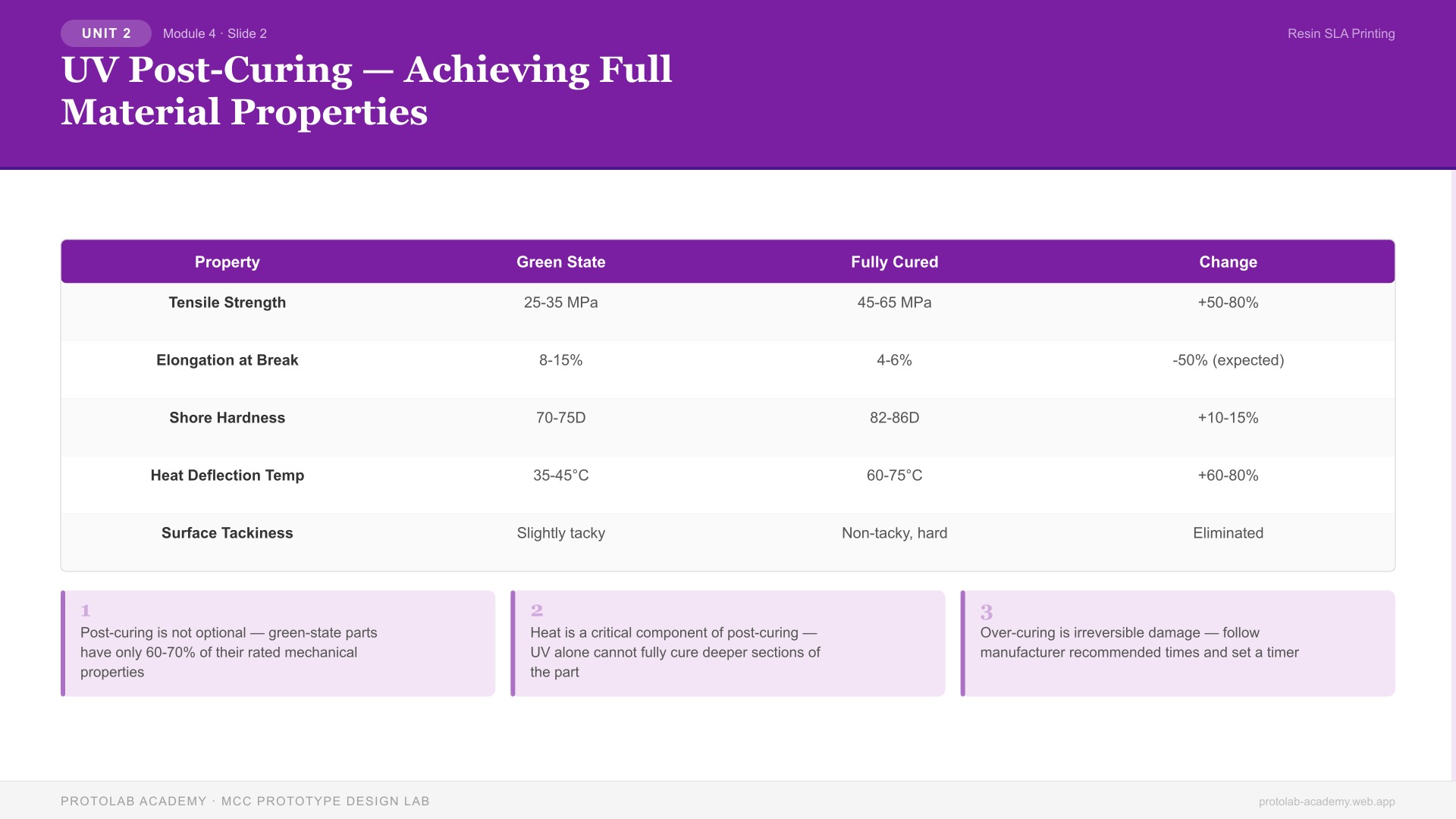

Slide Visual¶
Slide Overview¶
This slide explains the science and practice of UV post-curing — the step that transforms a partially polymerized green-state part into a fully cured component with its rated mechanical properties. Students will understand why post-curing is not optional, how to determine appropriate cure times, and how to avoid over-curing damage.
Instruction Notes¶
The Science of Post-Curing¶
During printing, each layer receives just enough UV energy to solidify — approximately 60-70% polymerization. This is intentional: over-exposing during printing would cause dimensional bloat from light bleed. The remaining 30-40% of unreacted monomers and oligomers are still dispersed throughout the part.
Post-curing exposes the entire part to intense UV light (and often heat), driving the remaining monomers to react: - UV component: 405nm light penetrates the part surface and triggers remaining photoinitiators - Thermal component: Heat (50-60°C) provides energy to overcome activation barriers for cross-linking reactions that UV alone cannot complete in deeper sections - Combined effect: UV + heat achieves 90-95% polymerization — the practical maximum for photopolymer systems
Mechanical Property Changes¶
| Property | Green State | Fully Cured | Change |
|---|---|---|---|
| Tensile Strength | 25-35 MPa | 45-65 MPa | +50-80% |
| Elongation at Break | 8-15% | 4-6% | -50% (expected) |
| Shore Hardness | 70-75D | 82-86D | +10-15% |
| Heat Deflection Temp | 35-45°C | 60-75°C | +60-80% |
| Surface Tackiness | Slightly tacky | Non-tacky, hard | Eliminated |
Note: Elongation DECREASES because increased cross-linking makes the material stiffer. This is normal and desirable for standard resins.
Curing Station Setup¶
A typical UV post-curing station includes: - UV LED array: 10-40W at 405nm wavelength, positioned to illuminate from multiple angles - Turntable: Rotates the part (1-3 RPM) for uniform exposure - Reflective interior: Aluminum foil or mirror surfaces to redirect UV to shadowed areas - Optional heater: Maintains 50-60°C during curing - Timer: Prevents over-curing
Curing Time Guidelines¶
| Resin Type | UV Only (room temp) | UV + Heat (60°C) |
|---|---|---|
| Standard | 8-15 min | 5-10 min |
| Tough/ABS-like | 10-20 min | 8-15 min |
| Flexible | 15-25 min | 10-20 min |
| Water-washable | 5-10 min | 3-8 min |
| High-temp | 15-30 min + heat cycle | Requires 60°C minimum |
Over-Curing: The Hidden Danger¶
More curing is NOT better. Over-curing (>2x recommended time) causes: - Brittleness: Excessive cross-linking eliminates all chain mobility - Yellowing: UV degradation of polymer surface and photoinitiator decomposition - Warping: Uneven internal stress from differential curing rates - Surface crazing: Micro-cracks from UV-induced polymer chain scission at the surface
Key Talking Points¶
- Post-curing is not optional — green-state parts have only 60-70% of their rated mechanical properties
- Heat is a critical component of post-curing — UV alone cannot fully cure deeper sections of the part
- Over-curing is irreversible damage — follow manufacturer recommended times and set a timer
Learning Objectives (Concept Check)¶
- [ ] Students can explain why post-curing is necessary and what it achieves at the molecular level
- [ ] Students can select appropriate post-curing time and temperature for different resin types
- [ ] Students can identify the symptoms and causes of over-curing
