Slide 002: Beam Delivery, Optics, and Focus

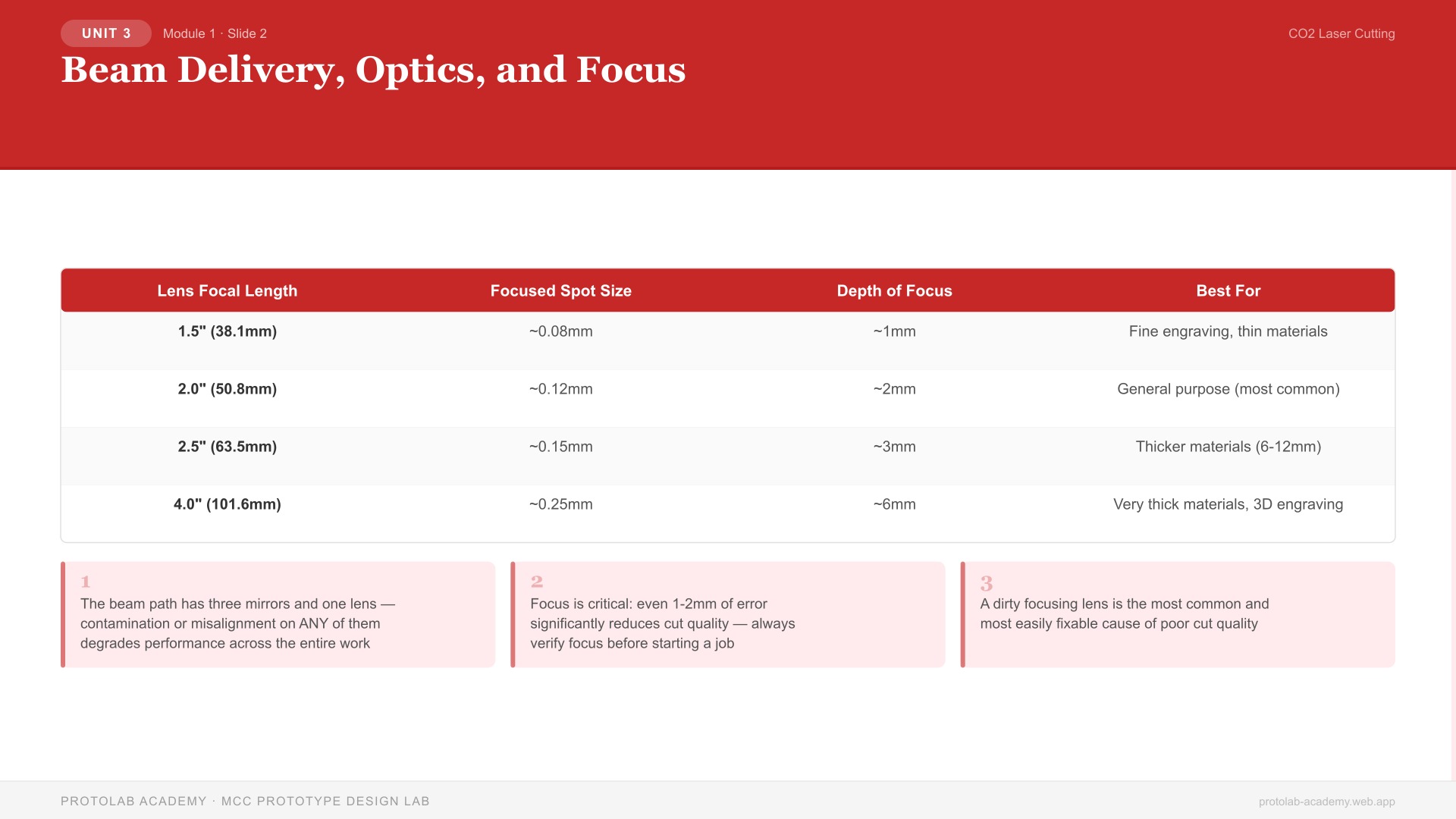

Slide Visual

Slide Overview

This slide explains how the laser beam travels from the tube to the workpiece through mirrors and a focusing lens. Understanding the beam delivery system is essential for maintaining cut quality, performing alignment, and troubleshooting performance degradation caused by dirty or misaligned optics.

Instruction Notes

The Beam Path

In a typical CO2 laser cutter with a gantry system, the beam follows this path: 1. Laser tube (fixed position): Beam exits horizontally from the output coupler 2. Mirror 1 (fixed): Redirects beam 90° from the tube to the Y-axis rail 3. Mirror 2 (moves on Y-axis): Redirects beam 90° along the X-axis gantry 4. Mirror 3 (moves on X-axis): Redirects beam 90° downward into the focusing lens assembly 5. Focusing lens: Converges the beam to a small focal point on the material surface

This arrangement of mirrors allows the beam to reach any XY position on the work bed while the tube remains stationary. All three mirrors must be precisely aligned — if any mirror is out of alignment, the beam will not hit the center of the next mirror, causing power loss, inconsistent cutting, and potential safety hazards.

Focusing Optics

Lens Focal Length	Focused Spot Size	Depth of Focus	Best For
1.5" (38.1mm)	~0.08mm	~1mm	Fine engraving, thin materials
2.0" (50.8mm)	~0.12mm	~2mm	General purpose (most common)
2.5" (63.5mm)	~0.15mm	~3mm	Thicker materials (6-12mm)
4.0" (101.6mm)	~0.25mm	~6mm	Very thick materials, 3D engraving

Spot size = the diameter of the beam at the focal point. Smaller spot = higher energy density = finer detail but shallower depth of focus.

Depth of focus = the vertical range over which the beam remains effectively focused. A 2" lens has ~2mm depth of focus — material surface must be within ±1mm of the focal plane for optimal results.

Setting the Focus

Focus is set by adjusting the distance between the lens and the material surface to match the focal length. Methods include: - Manual gauge: A calibrated spacer block placed between the nozzle and material - Motorized Z-axis: The bed or head moves up/down with electronic control - Autofocus probe: A mechanical or capacitive sensor that automatically detects the material surface

Optics Maintenance

Mirror and lens surfaces accumulate smoke residue and particulate during cutting. Dirty optics absorb laser energy (rather than reflecting/transmitting it), reducing effective power and potentially overheating the optic. Cleaning schedule: - Mirrors: Inspect weekly, clean with lens-grade acetone and cotton swabs - Focusing lens: Inspect before each session, clean as needed — a dirty lens is the #1 cause of declining cut quality

Key Talking Points

1. The beam path has three mirrors and one lens — contamination or misalignment on ANY of them degrades performance across the entire work area
2. Focus is critical: even 1-2mm of error significantly reduces cut quality — always verify focus before starting a job
3. A dirty focusing lens is the most common and most easily fixable cause of poor cut quality

Learning Objectives (Concept Check)

• [ ] Students can trace the beam path from tube to material surface through all optical elements
• [ ] Students can explain the relationship between focal length, spot size, and depth of focus
• [ ] Students can describe the importance of optics cleanliness and basic maintenance

---
