Slide 001: Laser Safety Classification and Interlock Systems

Slide Visual

Slide Overview

This slide covers the laser safety classification system, the safety interlocks built into CO2 laser cutters, and the regulatory requirements for laser safety in educational environments. Students will understand why the machine is designed as it is and why every safety feature exists for a specific, critical reason.

Instruction Notes

Laser Safety Classifications

The American National Standards Institute (ANSI Z136.1) and IEC 60825 classify lasers by their potential to cause injury:

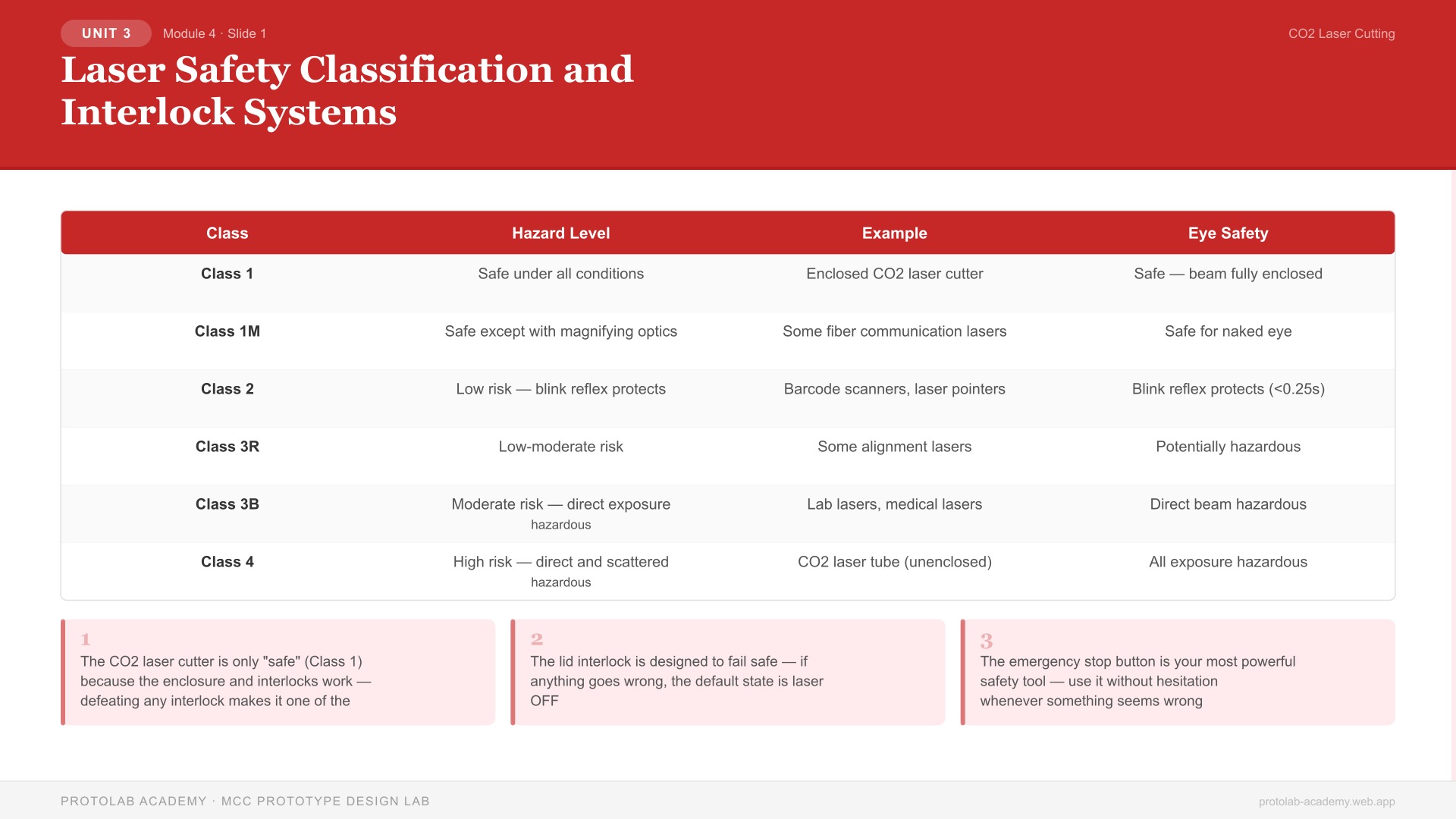

Class	Hazard Level	Example	Eye Safety
Class 1	Safe under all conditions	Enclosed CO2 laser cutter	Safe — beam fully enclosed
Class 1M	Safe except with magnifying optics	Some fiber communication lasers	Safe for naked eye
Class 2	Low risk — blink reflex protects	Barcode scanners, laser pointers	Blink reflex protects (<0.25s)
Class 3R	Low-moderate risk	Some alignment lasers	Potentially hazardous
Class 3B	Moderate risk — direct exposure hazardous	Lab lasers, medical lasers	Direct beam hazardous
Class 4	High risk — direct and scattered hazardous	CO2 laser tube (unenclosed)	All exposure hazardous

A CO2 laser cutter is Class 1 ONLY because it is enclosed. The laser tube inside is Class 4. If the enclosure is compromised or interlocks bypassed, the machine becomes a Class 4 hazard — the most dangerous laser classification.

Safety Interlock Systems

Lid Interlock (Primary) - A magnetic reed switch or microswitch detects whether the lid is closed - When the lid opens: the circuit to the laser power supply is broken - The laser CANNOT fire with the lid open - This is a "fail-safe" design: if the switch fails (broken wire, dead switch), the laser defaults to OFF

Water Flow Interlock - A flow sensor in the water cooling line detects circulation - If water flow stops or drops below the threshold: laser firing is inhibited - Protects the $200-800 laser tube from thermal destruction

Emergency Stop Button - Large red mushroom-head button, prominently placed - Immediately cuts ALL power to the laser and motion systems - Requires manual reset (twist to release) — prevents accidental restart - Does NOT cut power to the exhaust system (intentional — fumes must still be cleared)

Required Safety Labels

OSHA and ANSI require the following labels on laser equipment: - Laser classification label (Class 1 / Class 4 for enclosed/unenclosed) - Warning labels at all access panels - Aperture warning label near the beam exit point - Emergency stop label/arrow pointing to the button - "DANGER — INVISIBLE LASER RADIATION" label if any Class 3B/4 access is possible

Laser Safety Officer (LSO) Requirements

In educational settings, a designated Laser Safety Officer should: - Maintain a laser safety program - Ensure interlocks are functional and tested regularly - Train all operators before certification - Investigate and document any safety incidents - Perform or coordinate quarterly safety inspections

Key Talking Points

1. The CO2 laser cutter is only "safe" (Class 1) because the enclosure and interlocks work — defeating any interlock makes it one of the most dangerous devices in the lab
2. The lid interlock is designed to fail safe — if anything goes wrong, the default state is laser OFF
3. The emergency stop button is your most powerful safety tool — use it without hesitation whenever something seems wrong

Learning Objectives (Concept Check)

• [ ] Students can explain the laser safety classification system and identify the class of an enclosed CO2 laser cutter
• [ ] Students can describe the three primary interlock systems and how each protects the operator
• [ ] Students can locate and operate the emergency stop button

---

Last Updated: 2026-03-19
