Slide 2: Arc Transfer Modes & Stability

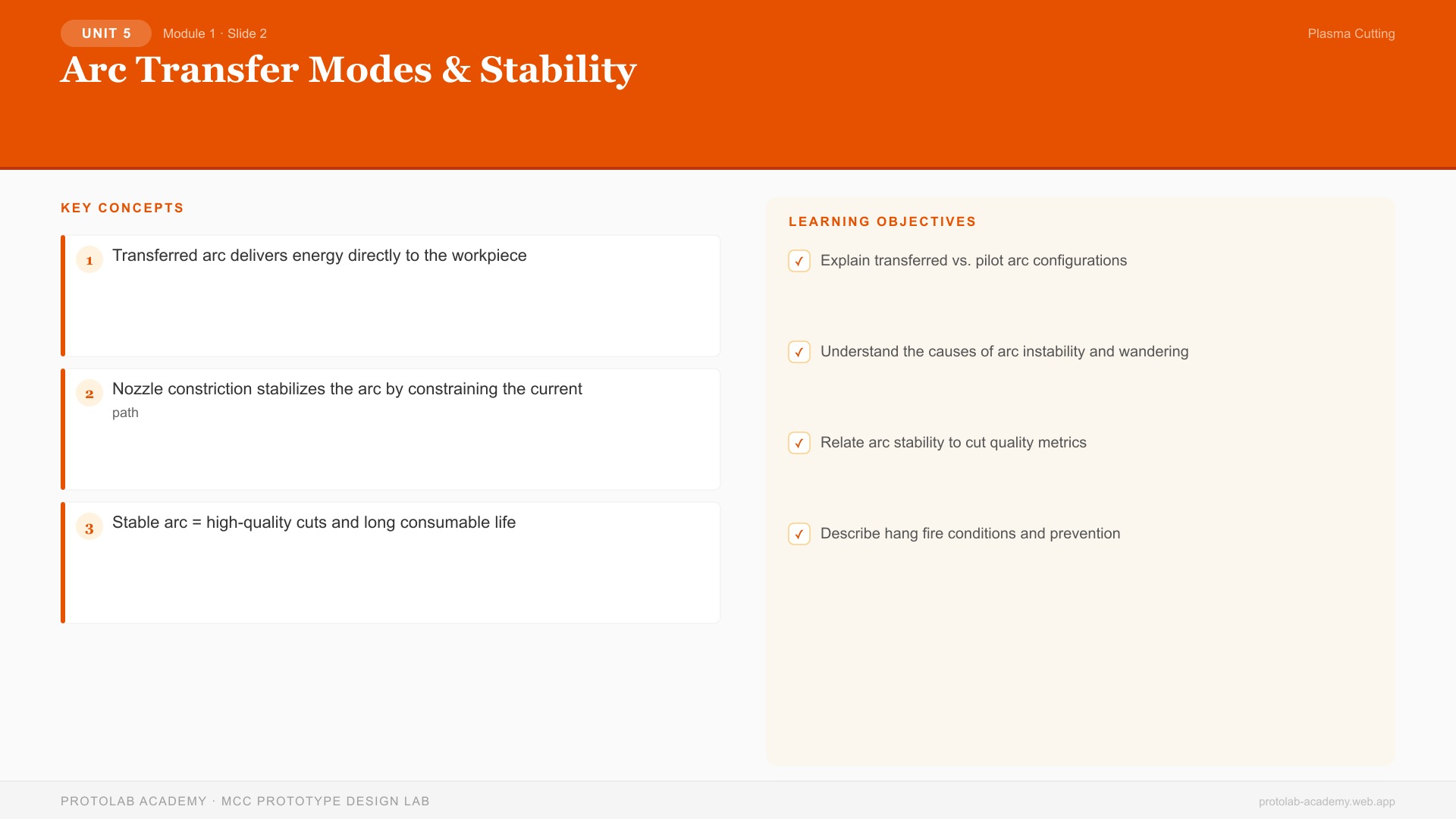

Slide Visual

Overview

This slide explores the different mechanisms by which energy transfers from the arc to the workpiece, the factors affecting arc stability, and how to recognize and correct an unstable arc. Students will understand the relationship between arc transfer mode, gas type, and cut quality.

Instruction Notes

Direct Transfer vs. Transferred Arc

In plasma arc cutting, there are two fundamental arc configurations:

Transferred Arc: The arc is established between the electrode (inside the nozzle) and the workpiece (the anode). Current flows from the power supply cathode → electrode → ionized gas column → workpiece (anode) → return to power supply. In this configuration, the workpiece is directly in the circuit and is actively heated and melted by the arc. This is the standard mode for cutting conductive materials and is used in 99% of cutting applications. The transferred arc transfers the maximum energy to the workpiece because the arc column is physically between the electrode and the material being cut.

Pilot Arc (Non-Transferred): In some systems, especially during arc initiation, a secondary arc is established between the electrode and a special pilot electrode or conductive cup, separate from the workpiece. This pilot arc ionizes the gas and heats it, creating a plasma jet that can strike the workpiece. The pilot arc is not in series with the workpiece; instead, the ionized gas from the pilot arc carries the current to the workpiece. Pilot arc systems are used for initiation or for cutting non-conductive materials (though non-conductive materials cannot be cut with standard plasma systems). Once the transferred arc is established, the pilot arc may be discontinued.

Arc Stability & Magnetic Force Effects

A bare arc (without nozzle constriction) is inherently unstable because the current-carrying arc column experiences a Lorentz force (F = I × B, where B is the magnetic field created by the current itself). This self-induced magnetic field pushes the arc away from the central axis, causing the arc to wander or rotate around the electrode. This wandering arc produces poor cut quality, excessive electrode wear, and potential safety hazards (the arc might strike the nozzle or other components).

The nozzle constriction dramatically improves stability by: 1. Providing physical walls that constrain the arc column 2. Creating a high-current-density path that overwhelms the destabilizing Lorentz force 3. Ensuring consistent contact between the arc and the electrode and nozzle

Arc stability is also influenced by: - Gas composition and ionization energy: Gases with lower ionization energy (e.g., argon) sustain more stable arcs than gases with higher ionization energy (nitrogen) - Current level: Operating at or slightly below rated amperage provides better stability than operating at elevated currents - Consumable condition: A worn electrode or nozzle produces asymmetrical current flow, causing arc wandering

Cut Quality & Arc Stability

A stable arc produces: - Straight, perpendicular cut walls (minimal bevel) - Consistent kerf width (the slot width produced by the cutting torch) - Minimal dross (adherent solidified metal on the cut edge) - Low electrode and nozzle wear

An unstable arc produces: - Jagged, angled cut walls - Variable kerf width - Heavy dross accumulation on the cut edge - Rapid consumable degradation - Noise, vibration, and visible arc wandering

Hang Fire & Arc Extinction

Hang fire occurs when the arc briefly extinguishes during cutting and must be re-ignited. This can happen if: - Gas pressure drops below the minimum required to sustain the arc - The electrode lifts too high (standoff distance too great) - Contamination or oxidation on the workpiece prevents current flow - Power supply voltage is insufficient for the arc length

Arc extinction is a serious problem because: 1. Cutting stops, wasting time 2. Partial cuts create sharp edges and are unsafe to handle 3. Repeated re-ignition wears the electrode 4. In production environments, hang fire causes scrap

Prevention includes: - Maintaining correct gas pressure (verified by regulator gauge) - Keeping standoff distance within specification (typically 5–10 mm) - Cleaning the workpiece with the torch nozzle or a wire brush to remove oxide - Operating at rated amperage and voltage

Arc Initiation Methods

There are several methods for establishing the transferred arc:

Contact Start: The electrode physically contacts the workpiece (through the nozzle), completing the circuit. This method is simple but requires the operator to retract the torch after the arc ignites, and it wears the electrode rapidly due to the mechanical contact. Contact start is rarely used in modern systems.

Pilot Arc Start (High-Frequency Assisted): A high-frequency voltage (typically 4–5 kHz, 4–5 kV) is superimposed on the DC voltage. This high-frequency voltage ionizes the gas between the electrode and the nozzle, creating a pilot arc. Once the gas is ionized, the main DC current can establish a transferred arc from the electrode to the workpiece. High-frequency start is the most common method because it is fast, reliable, and does not require electrode contact with the workpiece. However, high-frequency circuits can be sensitive to electromagnetic interference and require careful grounding.

Floating Voltage Start: Some systems use a higher open-circuit voltage (the voltage available when no current is flowing) that allows arc ignition when the electrode approaches the workpiece without physical contact. This method is less sensitive to interference than high-frequency start but slower.

Each method has different implications for safety (arc flash risk), electrode life, and cut quality. High-frequency start systems require additional safety shielding because the high-frequency voltage can couple into operator controls and skin, potentially causing electrical stimulation.

Gas Type & Arc Characteristics

Different gases produce different arc characteristics:

• Air: Compressed air (nitrogen + oxygen) is the least expensive and is suitable for low-amperage cutting and most ferrous metals. However, air produces heavy oxidation on stainless steel and aluminum. Air also produces relatively low arc stability at high amperages (above ~200 A).
• Nitrogen: Pure nitrogen is used for stainless steel and produces good cut quality. However, nitrogen requires slightly higher voltage than air for the same amperage, consuming more power.
• Oxygen: Pure oxygen is sometimes used for steel to enhance oxidation of the cut edge (exothermic reaction), increasing cut speed. However, oxygen is hazardous (increases fire risk) and is not used in most shop settings.
• Argon: Argon has the lowest ionization energy of common gases and produces the most stable arc at low amperages. However, argon is expensive and is primarily used for high-precision, low-amperage cutting systems.

Learning Objectives

1. Explain transferred vs. pilot arc configurations
2. Understand the causes of arc instability and wandering
3. Relate arc stability to cut quality metrics
4. Describe hang fire conditions and prevention
5. Compare arc initiation methods and their implications
6. Explain how gas type affects arc characteristics

Key Talking Points

• Transferred arc delivers energy directly to the workpiece
• Nozzle constriction stabilizes the arc by constraining the current path
• Stable arc = high-quality cuts and long consumable life
• Hang fire is prevented by maintaining gas pressure and standoff distance
• High-frequency pilot arc is the industry standard for initiation

Standards and References

ANSI/AWS C4.1-2012, Section 2.2—Arc Characteristics:

"Arc stability is enhanced by proper nozzle sizing and material, correct gas pressure, and operation at rated amperage. Poor arc stability results in increased electrode wear and reduced cut quality."

ANSI/AWS C4.1-2012, Section 3.1—Arc Initiation:

"Arc initiation shall use either contact start, pilot arc, or floating voltage methods. High-frequency pilot arc is preferred for operator comfort and electrode longevity."

OEM Reference (Lincoln Electric):

"Verify arc initiation every 10 cuts. If hang fire occurs, stop cutting, check gas pressure with the system running, and clean the workpiece."

Session Details

• Duration: 45 minutes
• Delivery Method: Didactic + interactive demonstration
• Equipment: Arc photos/video; stable vs. unstable arc comparisons
• Technology: Oscilloscope trace of current during stable vs. unstable arc (optional)

Discussion Prompts

1. Why is the transferred arc preferred over the pilot arc for cutting?
2. If you see the arc wandering or hear crackling, what could be wrong?
3. What is hang fire, and how would you recognize it while cutting?
4. Why does gas type matter? What happens if you use the wrong gas for a material?
5. Compare contact start and pilot arc start. Why is pilot arc safer?

Instructor Notes

• Show side-by-side videos of stable and unstable arcs if possible
• Bring a damaged electrode that shows eccentric wear (from arc wandering) and compare it to a normally worn electrode
• Emphasize that an unstable arc is not just a quality issue; it can lead to equipment damage and injury
• Discuss the relationship between arc stability and safety: a stable arc is confined to the nozzle, but an unstable arc can strike the cup, nozzle, or electrode holder, causing arc flash hazards
• If your system has high-frequency start, briefly explain that the HF voltage is separate from the cutting voltage and is only used for initiation

Adaptations for Different Learning Styles

Visual Learners

• Time-lapse comparison: stable arc vs. wandering arc side by side
• Diagram showing current path in transferred vs. pilot arc
• Color-coded map showing stable regions and instability zones

Auditory Learners

• Describe the sound differences: stable arc has a consistent "hiss," unstable arc has crackling/popping
• Discuss cause-and-effect verbally: "If pressure drops, gas ionization decreases, and the arc becomes harder to sustain."
• Peer explanations of arc initiation methods

Kinesthetic Learners

• Hands-on with a nozzle assembly and electrode: trace the current path with a finger
• Feel the weight of a worn electrode vs. a new one to sense the material loss
• (Supervised, with power off) Trace the gas flow path through the nozzle

Reading/Writing Learners

• Detailed notes on arc initiation methods and their advantages/disadvantages
• Worksheet: create a table comparing transferred arc vs. pilot arc
• Reference guide: troubleshooting hang fire (decision tree)

Accommodations for Neurodiversity

ADHD

• Use a video clip of stable arc as an anchor; reference it frequently
• Break arc stability into discrete components (Lorentz force, nozzle constriction, gas pressure)
• Provide a visual checklist: "To diagnose arc wandering, check: (1) gas pressure, (2) electrode tip wear, (3) nozzle condition."

Autism Spectrum

• Explain the relationship between physical constriction and electrical stability explicitly
• Provide a written procedure for "what to do if the arc becomes unstable" with numbered steps
• Clarify that arc initiation methods (contact, pilot, floating voltage) are three distinct categories; avoid ambiguous language

Dyslexia

• Provide diagrams of current paths; use color and arrows rather than relying on text descriptions
• Audio narration of the transferred arc concept

Anxiety

• Reassure students that high-frequency arc initiation is safe in modern systems (shielding prevents operator exposure)
• Emphasize that recognizing an unstable arc is a skill, not a judgment of competence

---

Slide Version: 1.0 Created: 2026-03-15 Last Updated: 2026-03-18
