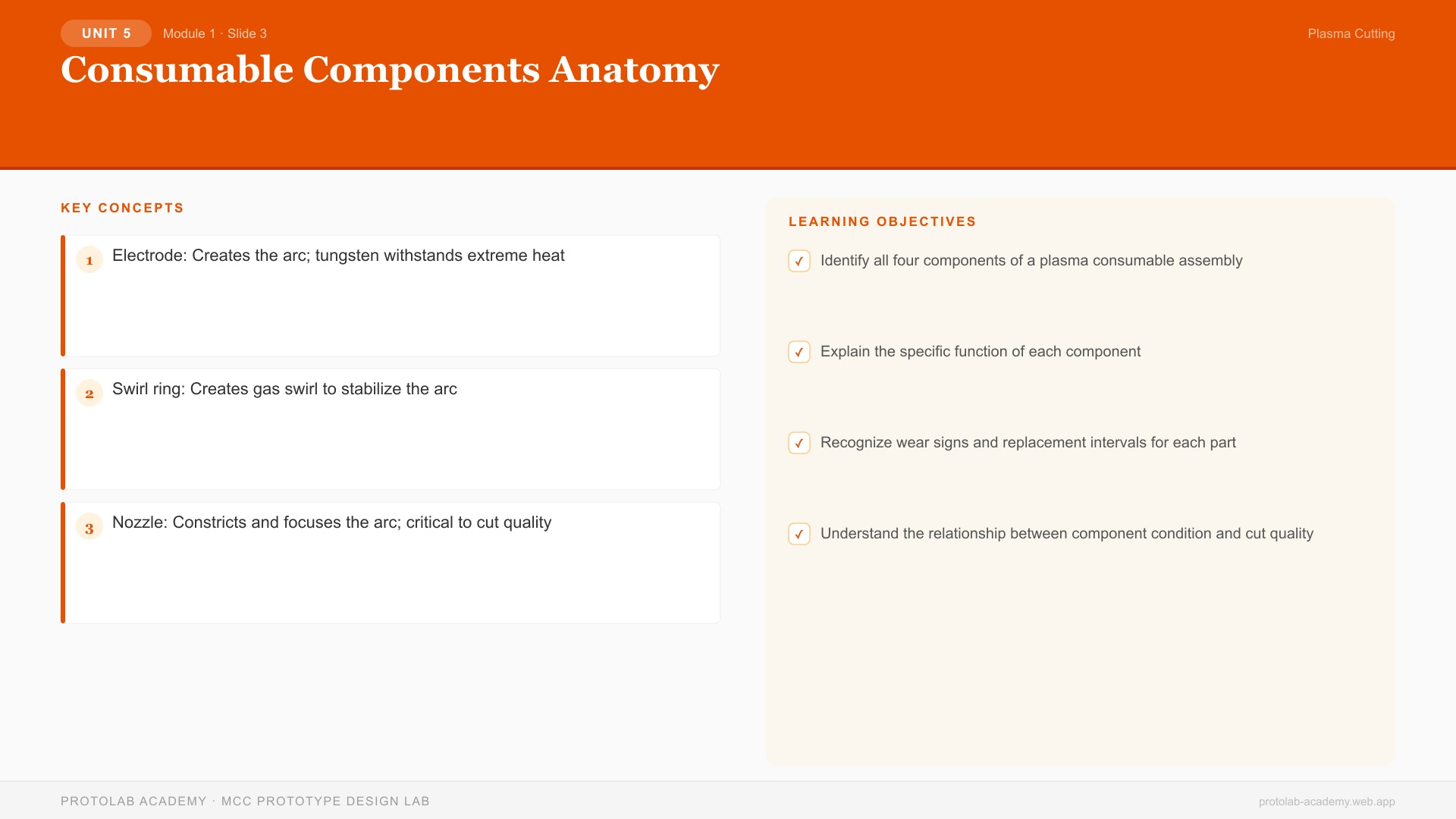

Slide 3: Consumable Components Anatomy

Slide Visual

Overview

This slide provides a detailed breakdown of all consumable parts in a plasma cutting system, their materials, functions, wear characteristics, and replacement intervals. Understanding consumable anatomy is critical for troubleshooting, ordering correct parts, and maintaining cut quality.

Instruction Notes

The Consumable Assembly

A plasma cutting torch consumable assembly consists of four main components arranged from electrode (innermost) to cup (outermost): electrode, swirl ring, nozzle, and shield cup. Each component is engineered for a specific function and operates under extreme conditions.

Electrode (Cathode) The electrode is the starting point for the arc. It is typically made of tungsten or a tungsten alloy (e.g., tungsten-thorium, tungsten-zirconium) because tungsten has: - Highest melting point of any metal (3,422°C), allowing it to survive the arc temperatures - Good thermionic emission (electron emission from heat), essential for arc initiation - Excellent thermal conductivity for heat dissipation - Low vaporization rate, minimizing contamination of the gas

Electrodes are designed with a specific tip geometry—usually a pointed cone with a defined included angle (commonly 60–90°), sometimes with a flat tip. The angle affects current distribution and arc column shape. A worn or damaged electrode (flat tip, chipped edge, or reduced tip angle) produces: - Poor arc initiation (high-frequency start may fail) - Unstable arc during cutting - Excessive electrode erosion (positive feedback)

Electrode diameter ranges from 1–6 mm, depending on the system's rated amperage. A thicker electrode can handle higher current before overheating. Electrodes are consumables; typical life is 50–200 cutting hours depending on amperage, gas type, and duty cycle. An electrode should be replaced when: - Tip is flattened or rounded (loss of the pointed geometry) - Visible erosion or pitting is present - Arc becomes difficult to initiate

Electrodes are usually held in place by a collet or compression fitting in the electrode holder and should be inspected for mechanical damage (dents, cracks, or corrosion) during each setup.

Swirl Ring The swirl ring (also called the turbulator or spiral insert) is a small, precisely machined component made of copper or brass with internal helical (spiral) grooves. Its function is to: 1. Create gas swirl: The helical grooves direct the incoming gas (shielding/cutting gas) in a spiral path around the electrode, creating swirl motion 2. Stabilize the arc: The swirling gas helps center the arc on the electrode axis and resists the destabilizing Lorentz force 3. Cool the electrode: The rapid gas motion carries heat away from the electrode tip, reducing electrode temperature and erosion

The swirl ring is a high-precision part and must be sized precisely for the gas flow rate and type. Using the wrong swirl ring (e.g., one sized for higher flow) results in insufficient swirl and poor arc stability. Swirl rings are made of copper or brass because these metals have high thermal conductivity and can be precisely machined. They typically last as long as 2–5 electrodes (100–500 hours) but can be damaged by: - Excessive heat, causing the grooves to erode - Mechanical impact, denting or bending the part - Gas contamination (moisture, oil) causing corrosion

A worn swirl ring produces the same symptoms as high gas pressure: excessive gas flow without adequate swirl, resulting in poor arc stability and wider kerf width.

Nozzle (Orifice Plate/Focusing Cup) The nozzle is the critical focusing element. It is typically made of copper or a specially formulated copper alloy (sometimes with tungsten inserts in high-amperage systems) and has a precisely sized orifice (opening) through which the electrode and arc pass. Typical nozzle orifices are 1–5 mm in diameter, depending on amperage.

The nozzle performs three critical functions: 1. Arc constriction: The physical orifice narrows the arc column, increasing current density and temperature 2. Gas acceleration: The nozzle restricts gas flow, creating back-pressure that accelerates the gas through the orifice to high velocity (hundreds of m/s) 3. Thermal management: A separate cooling circuit (recirculating water or compressed air through internal channels) protects the nozzle body from the extreme arc temperature — this is distinct from the cutting gas that passes through the orifice

The nozzle orifice diameter must match the rated amperage. A nozzle that is too large allows the arc to expand, reducing stability and cut quality. A nozzle that is too small restricts gas flow excessively, increasing back-pressure and potentially causing blow-back (gas reverse flow), poor cooling, and rapid nozzle erosion.

Nozzles are high-wear consumables, typically lasting 50–150 hours of cutting. Wear mechanisms include: - Thermal erosion: Ablation of the copper orifice edges from extreme temperature - Sputter erosion: Impact of metal splatter/dross on the orifice, gradually enlarging it - Oxidation/corrosion: If the nozzle is not kept dry, copper oxidation can increase the orifice diameter and degrade thermal conductivity

Signs that a nozzle needs replacement: - Orifice visibly enlarged or irregular in shape - Cut quality degradation (wider kerf, increased dross) - Back-pressure spike on the gas regulator (indicating restriction) - Visible torch tip discoloration or erosion

A nozzle that has reached its wear limit may appear deceptively small (only 0.5–1 mm of erosion), but this small change dramatically affects cut quality because the orifice is small to begin with.

Shield Cup (Outer Cup) The shield cup is the outermost component, surrounding the nozzle and electrode. It is typically made of ceramic (alumina) or copper and serves to: 1. Contain the gas: Direct the cutting and shielding gas toward the workpiece in a controlled manner 2. Shield the operator: The cup provides some protection against arc radiation (though it is not sufficient protection; personal PPE is always required) 3. Support other components: The cup holds the nozzle and other parts in alignment

Shield cups are available in several styles: - Standard cup: Simple cylindrical design, suitable for general cutting - Extended cup (drag cup): Longer cup that allows the torch to "drag" across the workpiece without full standoff distance contact. Drag cups are useful for irregular surfaces or operator comfort but can reduce cut quality if the arc is too close to the workpiece. - Hi-Def (High Definition) cup: Smaller, more focused cup for precision cutting, producing tighter kerf width and reduced dross

Shield cups are made of ceramic or copper. Ceramic cups are electrical insulators and are used in systems where the cup should not conduct current. Copper cups conduct current and are used in some systems where the cup provides a secondary return path.

Shield cups are also consumables but have longer life (200–500 hours) compared to nozzles (50–100 hours) and electrodes (50–200 hours for typical shop use). They wear by: - Thermal erosion (if copper) - Cracking or chipping (if ceramic) - Darkening/discoloration from oxidation

A cracked ceramic cup should be replaced immediately because: 1. The crack can propagate, causing the cup to shatter (sharp pieces) 2. Gas flow becomes irregular, degrading cut quality 3. The crack may allow gas to escape sideways, reducing shielding effectiveness

Learning Objectives

1. Identify all four components of a plasma consumable assembly
2. Explain the specific function of each component
3. Recognize wear signs and replacement intervals for each part
4. Understand the relationship between component condition and cut quality
5. Select correct replacement parts by amperage and gas type

Key Talking Points

• Electrode: Creates the arc; tungsten withstands extreme heat
• Swirl ring: Creates gas swirl to stabilize the arc
• Nozzle: Constricts and focuses the arc; critical to cut quality
• Shield cup: Directs gas and contains the arc area
• All four parts work together; a worn component degrades the entire system

Standards and References

ANSI/AWS C4.1-2012, Section 4.2—Consumable Specification:

"Electrodes shall be sized to match the power supply's rated amperage. Tungsten and tungsten-alloy electrodes are the standard for DC plasma cutting systems. Electrode tip angle and diameter shall be verified before each cutting session."

OEM Reference (Hypertherm, Table 4-1):

"Nozzle orifice diameter: 100 A = 2.0 mm; 150 A = 2.4 mm; 200 A = 3.0 mm; 300 A = 3.8 mm. Using an orifice 0.4 mm smaller or larger results in poor cut quality."

OEM Reference (Thermal Dynamics):

"Swirl ring life is typically 2–4 electrode lives. If arc stability deteriorates while electrode and nozzle are in good condition, replace the swirl ring."

Session Details

• Duration: 40 minutes
• Delivery Method: Demonstration + hands-on inspection
• Equipment: Consumable parts laid out and labeled; comparison of new vs. worn parts
• Technology: Magnified images of nozzle orifice showing wear progression

Discussion Prompts

1. Why is the nozzle made of copper rather than tungsten?
2. What would happen if you used a 200-amp nozzle (2.4 mm orifice) on a 100-amp system (rated for 2.0 mm)?
3. How does a worn swirl ring affect arc stability?
4. What is the typical lifespan of each consumable, and how would you plan a parts inventory?
5. If you observe a ceramic cup cracking, can you continue cutting? Why or why not?

Instructor Notes

• Provide samples: Pass around a new electrode and a worn one; let students see the difference
• Show comparison images: Display magnified photos of new vs. worn nozzles; the difference is often subtle to the eye but dramatic in performance
• Discuss torque: Mention that consumable parts are typically hand-tight; over-tightening can crack ceramic cups or distort the electrode holder
• Reference the OEM manual: Every system has specific consumable part numbers; always refer to the manual, not generic descriptions
• Cost perspective: A single electrode might cost $5, a nozzle $8, a cup $12. Yet using worn consumables leads to scrap and wasted cutting time worth far more

Adaptations for Different Learning Styles

Visual Learners

• Side-by-side photos: new electrode, electrode after 50 hours, electrode after 150 hours (showing progression)
• Exploded diagram showing component assembly and function
• Video: cross-section view of how gas flows through the nozzle

Auditory Learners

• Verbal walkthrough: "The gas enters at the base, gets directed by the swirl ring into a spiral, gets accelerated through the nozzle orifice, and exits as a high-velocity jet."
• Discussion: reasons each part is made of its material
• Peer teaching: have students explain the purpose of the shield cup to a partner

Kinesthetic Learners

• Hands-on: disassemble a consumable cup assembly (power off, safe to handle) and reassemble it
• Feel the smoothness of a new nozzle orifice vs. the rough edges of a worn one
• Measure nozzle orifice with calipers (optional, for students interested in precision)

Reading/Writing Learners

• Detailed reference sheet: consumable part numbers, typical life in hours, cost, function
• Worksheet: label an exploded diagram with part names, materials, and functions
• Journal prompt: "Design a consumable that lasts twice as long as current parts. What would you change?"

Accommodations for Neurodiversity

ADHD

• Provide a physical sample of each component as an anchor during the discussion
• Use a checklist: "Inspect: (1) electrode tip, (2) swirl ring grooves, (3) nozzle orifice, (4) cup cracks"
• Highlight key wear signs in color or bold text

Autism Spectrum

• Organize components in a fixed spatial arrangement (electrode center, swirl ring, nozzle, cup outer)
• Describe each component's function in terms of a single variable (swirl ring = gas flow direction; nozzle = current path constriction)
• Provide written specifications (part numbers, dimensions) in a table format

Dyslexia

• Provide consumable images with labeled callouts rather than dense text descriptions
• Audio recording or narration of the slide content

Anxiety

• Reassure students that consumable replacement is a normal, routine maintenance task—not a sign of failure
• Emphasize that the OEM manual specifies exact part numbers, so there's no guessing involved

---

Slide Version: 1.0 Created: 2026-03-15 Last Updated: 2026-03-18
