Slide 001: Machine Tool Overview and Classification¶

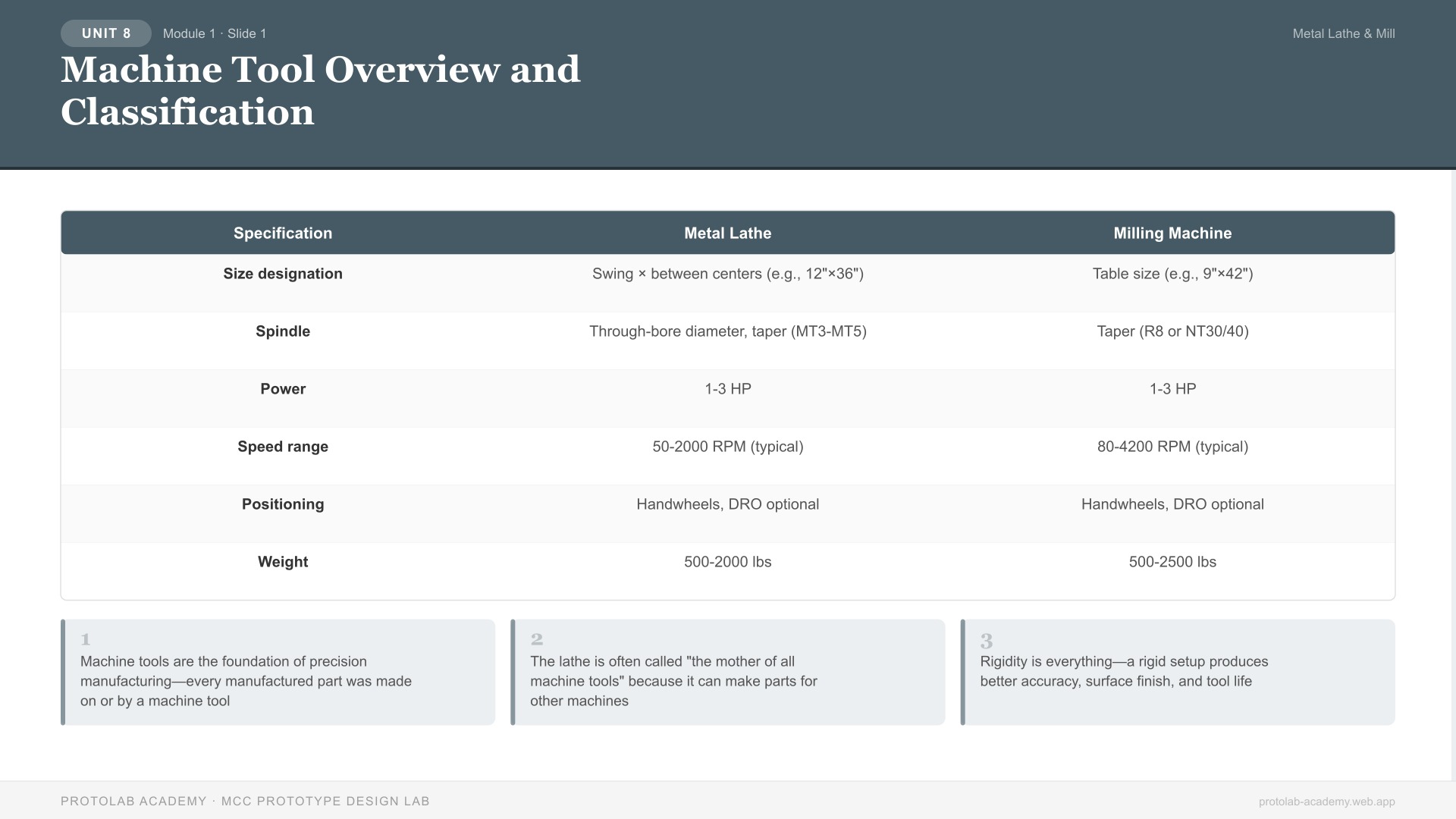

Slide Visual¶
Slide Overview¶
This slide introduces the major categories of machine tools found in a makerspace or machine shop, focusing on the metal lathe and milling machine as the two foundational machines for subtractive metalworking.
Instruction Notes¶
What Are Machine Tools?¶
Machine tools are power-driven machines that hold a workpiece and a cutting tool, producing controlled relative motion between them to remove material and create precision parts. Unlike hand tools, machine tools provide: - Rigidity: Heavy castings resist cutting forces without deflection - Precision: Graduated handwheels and digital readouts (DROs) enable positioning to 0.001" or better - Repeatability: Power feeds and stops enable consistent dimensions across multiple parts - Power: Motors provide the force needed to cut hard metals at controlled speeds
The Two Foundational Machines¶
Engine Lathe (Metal Lathe) The lathe rotates the workpiece while a cutting tool is held in a tool post on the carriage. The carriage moves longitudinally (along the Z-axis) and the cross slide moves radially (X-axis). Operations include: turning (external cylinders), boring (internal cylinders), facing (flat surfaces perpendicular to the axis), threading, knurling, drilling, and parting.
Common makerspace lathes: Grizzly G4003G (12"x36"), Precision Matthews PM-1340GT, South Bend 9" or 10K.
Vertical Milling Machine The mill holds a rotating cutter in a vertical spindle while the workpiece is clamped to a table that moves in X, Y, and Z axes. Operations include: face milling, end milling, slot cutting, drilling, boring, and profiling.
Common makerspace mills: Grizzly G0704 (mini mill), Precision Matthews PM-25MV, Bridgeport Series I (the industry standard manual mill).
Key Specifications¶
| Specification | Metal Lathe | Milling Machine |
|---|---|---|
| Size designation | Swing × between centers (e.g., 12"×36") | Table size (e.g., 9"×42") |
| Spindle | Through-bore diameter, taper (MT3-MT5) | Taper (R8 or NT30/40) |
| Power | 1-3 HP | 1-3 HP |
| Speed range | 50-2000 RPM (typical) | 80-4200 RPM (typical) |
| Positioning | Handwheels, DRO optional | Handwheels, DRO optional |
| Weight | 500-2000 lbs | 500-2500 lbs |
Cutting Tool Materials¶
- HSS (High-Speed Steel): Traditional, easily resharpened, good for low-speed operations and interrupted cuts. Max ~100 SFM for steel.
- Carbide: Cemented tungsten carbide inserts. Higher speed capability (300+ SFM for steel), excellent wear resistance. Available as indexable inserts (turn to a fresh edge) or brazed tips.
- Ceramic/Cermet: For high-speed finishing of hardened steels and cast iron. Brittle—requires rigid setups.
- CBN/Diamond: For hardened steel and non-ferrous metals respectively. Specialized applications.
Key Talking Points¶
- Machine tools are the foundation of precision manufacturing—every manufactured part was made on or by a machine tool
- The lathe is often called "the mother of all machine tools" because it can make parts for other machines
- Rigidity is everything—a rigid setup produces better accuracy, surface finish, and tool life
- Always respect these machines—they are powerful enough to cause serious injury instantly
Learning Objectives (Concept Check)¶
- Can students distinguish between lathe and milling machine operations?
- Can students identify key specifications for each machine type?
- Do students understand the hierarchy of cutting tool materials?
Last Updated: 2026-03-19
