Slide 001: Milling Machine Setup and Face Milling¶

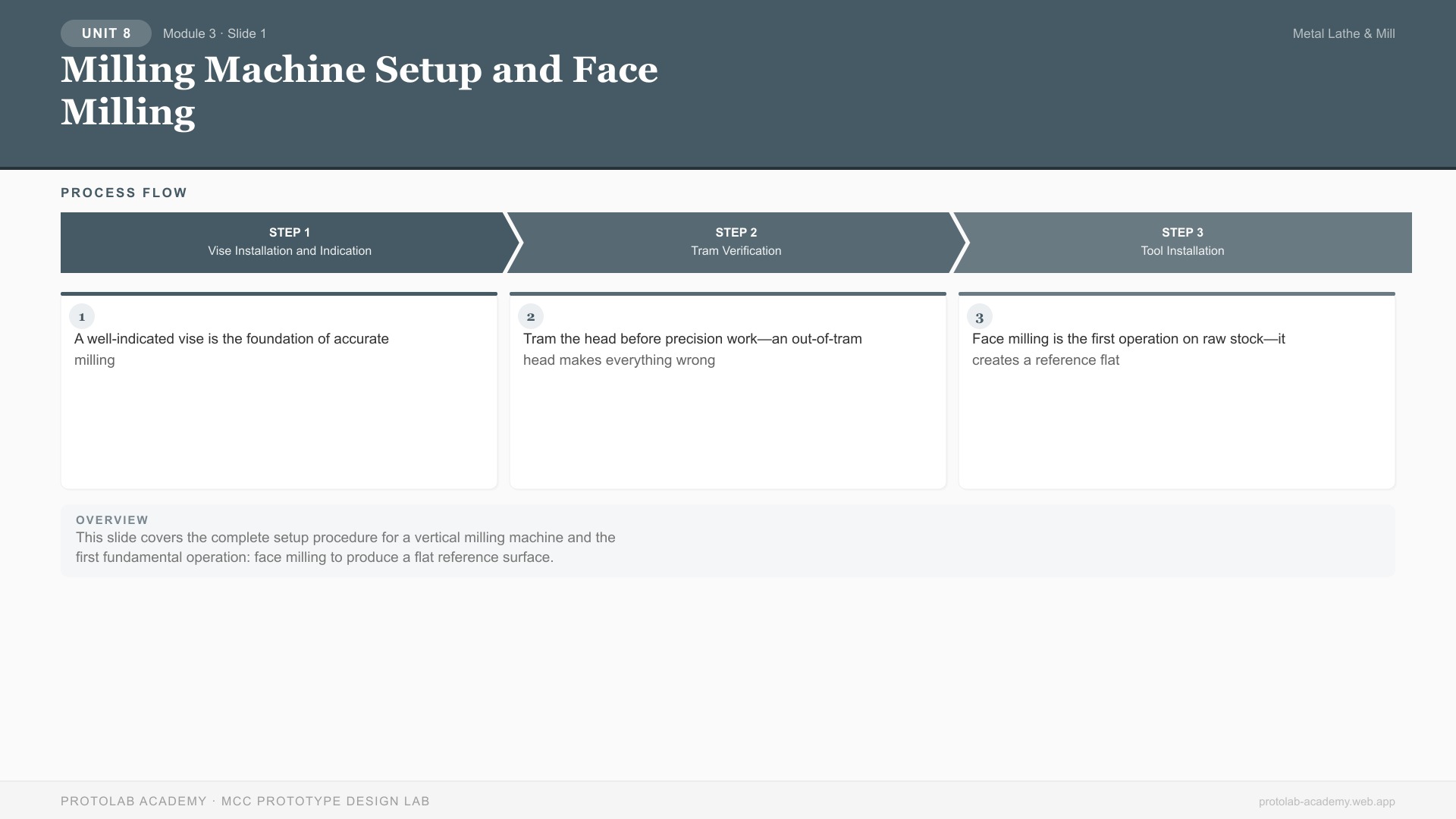

Slide Visual¶

Milling Machine Setup and Face Milling

Slide Overview¶

This slide covers the complete setup procedure for a vertical milling machine and the first fundamental operation: face milling to produce a flat reference surface.

Instruction Notes¶

Machine Setup Procedure¶

Step 1: Vise Installation and Indication Mount the precision vise on the mill table using T-slot bolts. Snug but do not fully tighten. Using a dial indicator mounted in the spindle, sweep along the fixed jaw face while moving the X-axis handwheel. Tap the vise with a brass mallet to adjust alignment. When the indicator reads within 0.001" over the full jaw length, fully tighten the mounting bolts. Re-check alignment after tightening.

Step 2: Tram Verification Mount a dial indicator in the spindle with a long arm. Lower the indicator to touch the table (or a precision parallel on the table). Rotate the spindle by hand 180° to the opposite side. Both readings should match within 0.001". If not, adjust the head tilt and re-check. Tram must be verified in both the X and Y planes.

Step 3: Tool Installation Select the appropriate R8 collet for the tool shank diameter. Insert the collet into the spindle nose. Place the tool into the collet. Thread the drawbar into the collet from the top of the spindle and tighten firmly with a wrench. A loose drawbar causes tool pullout during cutting—verify tightness.

Face Milling¶

Face milling produces flat surfaces using a large-diameter multi-insert cutter.

Setup and Parameters:

Parameter	Guideline
Cutter diameter	1.5× workpiece width (ideal overlap)
RPM	(SFM × 3.82) / Cutter diameter
Feed per tooth	0.003-0.006" (aluminum), 0.002-0.004" (steel)
Table feed (IPM)	RPM × # teeth × IPT
DOC	0.020-0.050" (roughing), 0.005-0.015" (finishing)

Procedure: 1. Clamp the workpiece in the vise on parallels. Tap down with a brass mallet to seat parallels. 2. Set the spindle speed for the face mill diameter and workpiece material. 3. Position the cutter so it overlaps the workpiece width (offset the cutter center to one side for best finish). 4. Set the Z-axis (depth): touch off on the workpiece surface, zero the dial, then lower by the desired DOC. 5. Lock the Z-axis and Y-axis. Feed with the X-axis handwheel or power feed. 6. Make passes across the full surface. Overlap each pass by 50-70% of the cutter diameter. 7. For finishing, take a single light pass (0.005") across the full surface for uniform flatness.

Surface Finish Patterns¶

The face mill leaves a characteristic pattern based on the cutter position relative to the workpiece: - Centered: Symmetrical arc pattern (most common) - Offset: Parallel arc marks (better finish, one clean edge) - Full overlap: Best finish but slower (each point is cut twice)

Key Talking Points¶

A well-indicated vise is the foundation of accurate milling
Tram the head before precision work—an out-of-tram head makes everything wrong
Face milling is the first operation on raw stock—it creates a reference flat
Always verify the drawbar is tight before starting the spindle

Learning Objectives (Concept Check)¶

Can students indicate a vise to within 0.001"?
Can students calculate face milling parameters?
Do students understand why tram matters?
