Slide 003: Drilling, Boring, and Hole Operations on the Mill¶

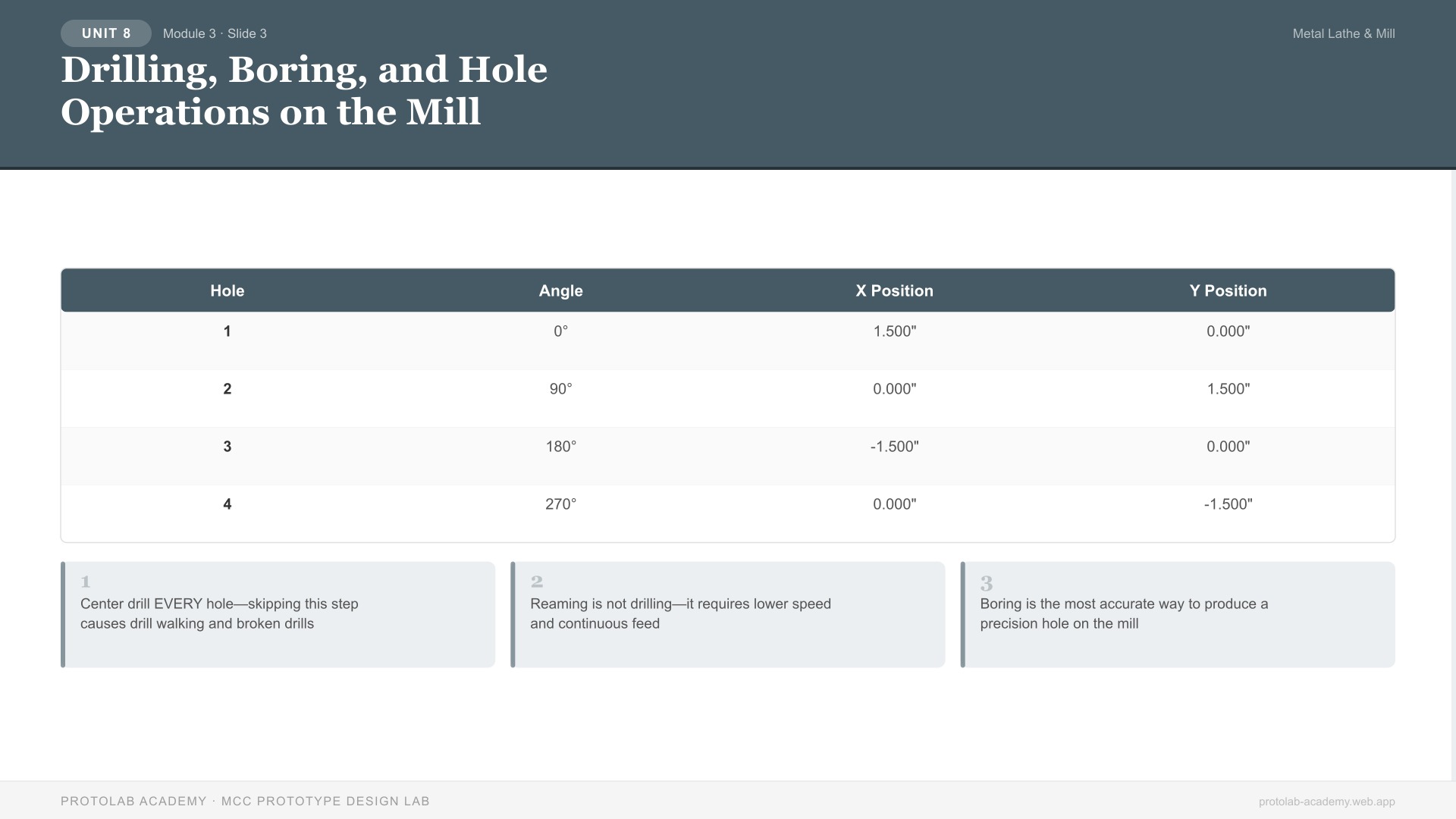

Slide Visual¶

Slide Overview¶
This slide covers hole-making operations on the milling machine including center drilling, through-drilling, reaming, boring, and bolt circle layout—operations that take advantage of the mill's precise XY positioning capability.
Instruction Notes¶
Advantages of Drilling on the Mill¶
The milling machine is often preferred over a drill press for precision hole work because: - Precise XY positioning using handwheels, dial collars, or DRO - The workpiece can be securely clamped in a precision vise - Multiple holes can be located relative to each other with high accuracy - Boring operations can follow drilling for precision diameters - The rigid spindle and table produce straighter holes
Drilling Procedure¶
- Layout: Calculate hole positions relative to a reference edge. Edge-find to establish coordinates.
- Center drill: Position the spindle over the hole location. Install a #2 center drill. Set RPM for the center drill diameter. Center-drill each location.
- Pilot drill (if needed): For holes over 1/2", drill a pilot hole first (approximately 50% of final diameter) to reduce forces on the finish drill.
- Final drill: Install the specified drill bit. Set RPM for the drill diameter and material. Peck drill: advance 1-2× drill diameter per peck, retract to clear chips. Use cutting fluid.
- Deburr: Countersink each hole to remove the entrance burr.
Reaming¶
Reaming produces a more accurate and smoother hole than drilling alone. A reamer follows a drilled hole (typically drilled 1/64" undersize) and removes a thin layer to achieve ±0.0005" diameter accuracy with excellent surface finish.
Key rules: - Drill the hole 0.010-0.015" undersize for the reamer - Run at 50% of drilling RPM (reamers cut on their full circumference—lower speed prevents chatter) - Feed continuously—never stop or reverse a reamer in the hole - Use ample cutting fluid
Boring on the Mill¶
For hole diameters that do not match standard drill or reamer sizes, boring is used:
- Drill a starting hole (approximately 1/8" undersize).
- Install a boring head in the spindle. The boring head holds a single-point boring bar.
- Adjust the boring bar to the desired radius using the graduated dial on the boring head.
- Lower the quill to bore the hole. Take light cuts: 0.010-0.020" per pass.
- Measure with telescoping gauges and micrometer or bore gauge.
- Adjust and take the finishing pass.
Bolt Circle Layout¶
A bolt circle is a pattern of evenly spaced holes on a circle of specified diameter (e.g., 4 holes on a 3" bolt circle).
Calculation: For N holes on a circle of radius R: - Hole 1: X = R × cos(0°), Y = R × sin(0°) - Hole 2: X = R × cos(360°/N), Y = R × sin(360°/N) - Continue for each hole
Example — 4 holes on a 3" diameter (1.5" radius) bolt circle: | Hole | Angle | X Position | Y Position | |------|-------|-----------|-----------| | 1 | 0° | 1.500" | 0.000" | | 2 | 90° | 0.000" | 1.500" | | 3 | 180° | -1.500" | 0.000" | | 4 | 270° | 0.000" | -1.500" |
All positions are relative to the bolt circle center. Use the DRO or dial collars to position the table for each hole.
Key Talking Points¶
- Center drill EVERY hole—skipping this step causes drill walking and broken drills
- Reaming is not drilling—it requires lower speed and continuous feed
- Boring is the most accurate way to produce a precision hole on the mill
- Bolt circles require trigonometry or a DRO with bolt circle function
Learning Objectives (Concept Check)¶
- Can students perform the complete drill-ream sequence?
- Can students set up and use a boring head?
- Can students calculate bolt circle positions?
