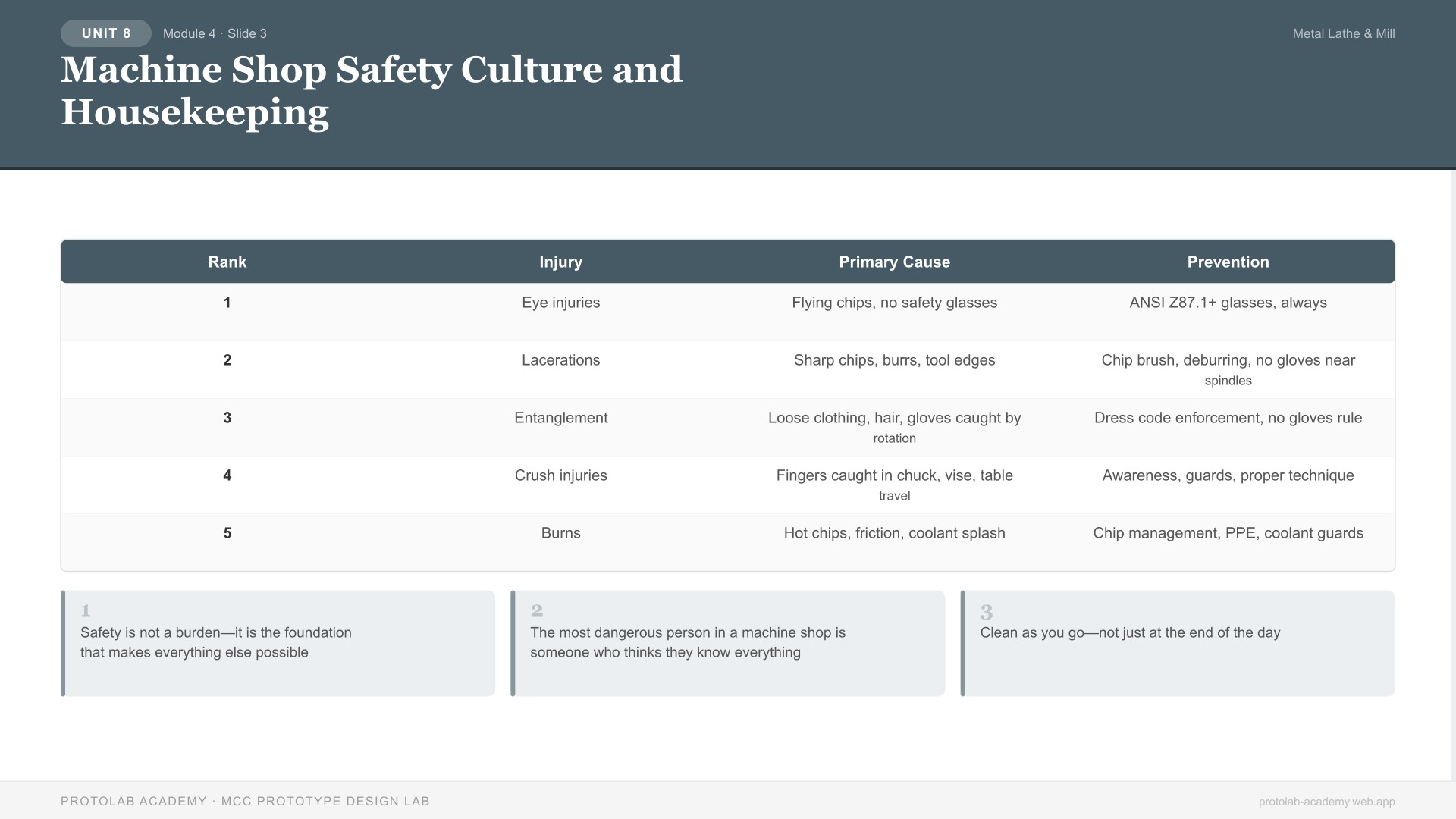

Slide 003: Machine Shop Safety Culture and Housekeeping¶
Slide Visual¶
Slide Overview¶
This slide reinforces the comprehensive safety framework for machine shop operations, covering safety culture, housekeeping standards, and the mindset required for incident-free machining.
Instruction Notes¶
Safety Culture vs. Safety Rules¶
Rules are written on paper. Culture is how you behave when no one is watching. A strong safety culture means: - Every person is responsible for their own safety AND the safety of everyone in the shop - Near-misses are reported, not hidden. Every near-miss is a free lesson that could prevent a serious injury - Stopping unsafe work is expected, regardless of who is doing it or their seniority - "I don't know" is an acceptable answer—ask for help rather than guessing on an unfamiliar operation - Shortcuts are rejected—the time saved is never worth the risk
The Top 5 Machine Shop Injuries¶
| Rank | Injury | Primary Cause | Prevention |
|---|---|---|---|
| 1 | Eye injuries | Flying chips, no safety glasses | ANSI Z87.1+ glasses, always |
| 2 | Lacerations | Sharp chips, burrs, tool edges | Chip brush, deburring, no gloves near spindles |
| 3 | Entanglement | Loose clothing, hair, gloves caught by rotation | Dress code enforcement, no gloves rule |
| 4 | Crush injuries | Fingers caught in chuck, vise, table travel | Awareness, guards, proper technique |
| 5 | Burns | Hot chips, friction, coolant splash | Chip management, PPE, coolant guards |
Housekeeping Standards¶
A clean shop is a safe shop. Housekeeping is not optional—it is a core safety practice.
During operations: - Clear chips regularly with a brush or vacuum—never let them accumulate - Wipe up coolant spills immediately—they are slip hazards - Keep the floor clear of stock, tools, and materials—trip hazards cause falls into running machines - Return tools to their designated location after each use
End-of-session checklist: 1. Machine off, all controls in neutral 2. Workpiece removed or secured 3. Chips cleaned from the machine, ways, and floor 4. Cutting tools returned to storage 5. Measuring instruments wiped clean and returned to cases 6. Coolant level checked (top up if needed) 7. Machine wiped down with a light oil on the ways to prevent rust 8. Floor swept, no slip hazards remaining
Lockout/Tagout (LOTO)¶
When performing maintenance, cleaning inside a machine, or making repairs: 1. Turn the machine off at the main power switch 2. Lock the switch in the OFF position with a personal padlock 3. Attach a tag with your name, date, and reason 4. Verify the machine cannot be started by pressing the start button 5. Only the person who applied the lock may remove it
Chemical Safety¶
Cutting fluids, degreasers, and solvents all have Safety Data Sheets (SDS): - Know the location of the SDS binder - Use barrier cream before handling cutting fluids - Wash hands thoroughly before eating, drinking, or touching your face - Report skin irritation, rashes, or respiratory symptoms immediately
Key Talking Points¶
- Safety is not a burden—it is the foundation that makes everything else possible
- The most dangerous person in a machine shop is someone who thinks they know everything
- Clean as you go—not just at the end of the day
- If something feels unsafe, STOP. Ask. It is always better to ask than to bleed.
Learning Objectives (Concept Check)¶
- Can students describe the difference between safety rules and safety culture?
- Can students perform the end-of-session cleanup procedure?
- Do students understand lockout/tagout and when it applies?
