Slide 1: Equipment Fundamentals & Anatomy

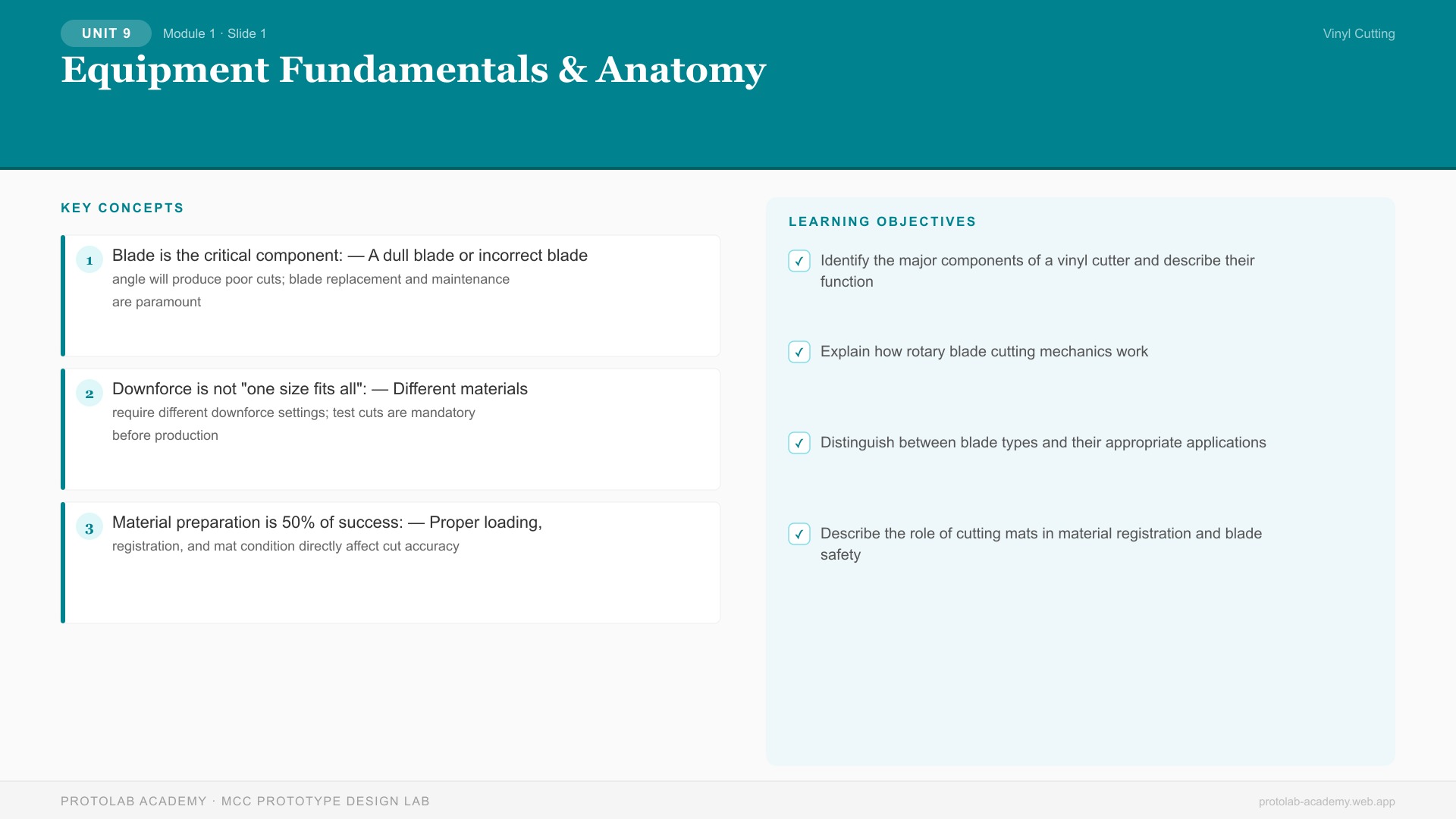

Slide Visual

Overview

Vinyl cutting machines are precision electromechanical systems that use rotating blades to cut through adhesive-backed vinyl, vinyl-like films, and thin substrates under computer control. Understanding the key components—cutting head, drive motor, material feed system, and control electronics—is essential for safe operation, maintenance, and troubleshooting.

This slide introduces the main hardware components of three popular platform types: Cricut Explore 3, Brother ScanNCut, and Silhouette Cameo 5. While specific models vary, all share core principles.

Instruction Notes (300+ words)

Machine Architecture Overview

A vinyl cutting machine consists of five main subsystems:

1. Cutting Head Assembly The cutting head houses the rotary blade, blade holder, and blade clamp mechanism. The blade is a small circular knife rotating at 5,000–15,000 RPM (depending on material and settings). The blade holder accepts different blade styles: standard 45°, specialty 60° (precision detail), 30° (deep cuts for thick materials), and drag knife (for metallic/holographic vinyl).

The rotary blade is driven by a stepper motor that advances the cutting head along an X-axis rail. As the blade spins, a second motor (Y-axis) moves the entire cutting carriage side-to-side, and a third motor (or servo system) advances the material forward and backward on the cutting mat. These three axes coordinate to cut arbitrary paths across the material.

A downforce mechanism (typically a spring-loaded spindle or servo-controlled lever) presses the blade downward into the vinyl and backing. Downforce is measured in grams (typically 20–300 grams depending on material thickness and blade type). Too little downforce and the blade skips; too much and the blade dulls rapidly or cuts through the backing.

2. Material Feeding System Materials are loaded onto a cutting mat (a sticky, adhesive-coated surface that grips vinyl without permanent bonding). The mat is fed into the machine either by hand (manual feed) or via an automated cutting mat feeder (on professional models). Some machines feature a pinch roller system: rotating wheels on the rear of the cutting head that grip the leading edge of the material and help feed it through the machine.

Registration marks printed on the mat or material align the cutting head to the precise starting position. Optical sensors on some models (Brother ScanNCut, Cricut Explore 3) read these marks and auto-register, ensuring cut accuracy if material has shifted slightly.

3. Control Electronics & Communication The cutting head, motors, and blade drive are controlled by an embedded microcontroller that interprets commands from design software (Cricut Design Space, Silhouette Studio, etc.). Modern machines communicate via USB, WiFi, or Bluetooth. Software sends geometry data (X, Y coordinates, blade down/up signals, speed/pressure commands) in real time, allowing the machine to follow complex paths at high speed while maintaining accuracy.

4. Power & Ventilation Vinyl cutters require stable AC power (110–240V depending on market). Most machines draw 30–100 watts during cutting. Some machines have integrated fans to clear vinyl dust from the blade and cutting area—this prevents dust buildup and blade dulling. Professional models may have external dust collection hookups.

5. Safety Features Most modern machines include: - Emergency stop button (large red button to halt all motors) - Blade auto-shutoff when lid is opened (prevents accidental blade contact) - Low-speed carriage movement during manual operation (hand-feed mode on some models) - Thermal shutdown (if internal temperature exceeds safe limits)

Common Machine Types in Makerspaces

Cricut Explore 3 (home/prosumer market) - Cutting width: 11.5 inches - Smart Set Dial for automatic material detection (proprietary, requires Cricut materials) - Integrated tools (scoring stylus, knife blade, pen attachments) - Bluetooth wireless cutting from Design Space app - ~$350–$450

Brother ScanNCut (professional prosumer) - Cutting width: 12 inches - Optical scanner for auto-registration of designs - USB and wireless options - Native support for SVG, PDF, DXF (more design freedom) - Robust build, suitable for daily production - ~$350–$600

Silhouette Cameo 5 (popular prosumer/entry professional) - Cutting width: 12 inches - Auto-adjusting blade (pressure-sensitive downforce) - Intuitive Silhouette Studio software (free + paid versions) - Excellent material compatibility (works with most adhesive vinyl brands) - ~$300–$450

All three are appropriate for educational settings and serve as the basis for this module's examples.

Key Talking Points

1. Blade is the critical component — A dull blade or incorrect blade angle will produce poor cuts; blade replacement and maintenance are paramount
2. Downforce is not "one size fits all" — Different materials require different downforce settings; test cuts are mandatory before production
3. Material preparation is 50% of success — Proper loading, registration, and mat condition directly affect cut accuracy
4. Software and hardware work as a system — Design file quality, software export settings, and hardware configuration are all interdependent

Learning Objectives

• [ ] Identify the major components of a vinyl cutter and describe their function
• [ ] Explain how rotary blade cutting mechanics work
• [ ] Distinguish between blade types and their appropriate applications
• [ ] Describe the role of cutting mats in material registration and blade safety
• [ ] Identify safety features on vinyl cutting equipment

Adaptations for Different Learning Styles

Visual Learners: - Provide labeled diagrams and cross-sections of cutting head, blade assembly, drive system - Use color-coded exploded views showing each major subsystem - Display side-by-side comparison of three common machine types - Embedded video walkthrough of hardware assembly (2–3 min)

Kinesthetic Learners: - Hands-on equipment tour: physically point out each component while discussing function - Blade handling demonstration (safe removal, inspection, reinstallation—with dummy blade first) - Mat loading and registration walkthrough with real materials - Optional: disassembled blade cartridge to examine blade geometry under magnification

Auditory Learners: - Instructor narration of each subsystem with technical depth - Discussion: common problems learners have encountered or heard about - Q&A session on equipment operation and troubleshooting - Optional: audio-described version of slide content

Read/Write Learners: - Detailed printed handout: "Vinyl Cutter Anatomy & Components" with full descriptions - Vocabulary glossary: downforce, registration, stepper motor, blade holder, cutting mat - Note-taking prompts: "What is the function of downforce?" "Why does blade type matter?"

Standards and References

OSHA Standards: - 29 CFR 1910.1200 (Hazard Communication) — Vinyl dust labeling and SDS availability - 29 CFR 1910.95 (Occupational Noise Exposure) — Vinyl cutters: ~80 dB, acceptable for continuous 8-hour exposure

Equipment Manufacturer Resources: - Cricut: "Cricut Maker & Explore 3 Setup & Maintenance" manual - Brother: "ScanNCut DX Series Technical Specification" document - Silhouette: "Cameo 5 Owner's Manual" with blade installation guide

Related Standards: - ANSI/ASSE A10.49 — Safety Requirements for Powered Tools - ISO 11161 — Safety of Machinery — Integrated Manufacturing Systems — Basic Requirements

Session Details

Time Allocation: - Introduction & safety briefing: 5 minutes - Equipment anatomy overview (slides): 15 minutes - Live hardware demonstration: 10 minutes - Hands-on equipment tour (small groups): 20 minutes - Q&A and troubleshooting preview: 10 minutes

Equipment Needed: - Vinyl cutting machine (Cricut, Brother, or Silhouette) - Sample cutting mat (loaded with practice material) - Spare blade (display only) - Dummy blade cartridge (for safe handling practice) - Large format printout of machine anatomy diagram

Room Setup: - Center cutting machine on large demo table, visible from all seats - Have backup machine powered on and ready for troubleshooting live demo (if equipment malfunctions) - First-aid kit visible and accessible - Blade disposal container clearly marked and positioned

Discussion Prompts

1. "Why do you think the blade angle matters?" — Explore how blade geometry affects material interaction; 45° standard, 60° for precision, 30° for thick materials
2. "What happens if downforce is too high?" — Lead to understanding blade dulling, equipment wear, poor cut quality
3. "How does the machine know where to cut?" — Introduce design-to-hardware pipeline, registration marks, optical sensors
4. "Why do we use a cutting mat instead of cutting directly on a hard surface?" — Discuss blade safety, material retention, blade longevity

Instructor Notes

Safety-Critical Points to Emphasize:

• Blade Hazard: Vinyl cutter blades are extremely sharp. Never touch blade with bare fingers. Always use blade guards. Demonstrate safe blade removal/insertion with dummy cartridge first, then (if confident in learner readiness) with a real blade.
• Pinch Points: The cutting head moves continuously. Do not place hands near the cutting head during operation. Treat the machine like an automated CNC: assume it will move and plan accordingly.
• Dust Management: Vinyl dust can accumulate in the blade and carriage. Use provided brush and vacuum to clean after each session. Dust buildup reduces cut quality and can damage electronics.
• Emergency Stop: Show the red emergency stop button (if present) and walk through how to use it. Make sure learners know: "If anything goes wrong, hit this button."

Troubleshooting Preview (for later modules):

If time allows, briefly mention common issues: - "Skipped cuts" — Usually low downforce or dull blade - "Cut goes through backing" — Usually high downforce or wrong blade type - "Design doesn't align with mat" — Usually registration mark misplacement or optical sensor issue

These are explored in detail in Module 2 (blade calibration) and Module 5 (testing & troubleshooting).

Inclusive Facilitation Tips:

• Provide a written summary of equipment components (handout) for learners who need to process information in multiple formats
• Offer a quiet practice round with a dummy blade before handling a real blade (reduces anxiety)
• Encourage peer explanations: "Can someone explain what downforce does?" — builds retention
• Watch for disengagement; check in with quiet learners: "Do you have questions about the cutting head?"

Accommodations for Neurodiversity

ADHD: - Break the 25-minute overview into 3–4 shorter segments (5–7 min each) with movement breaks - Use the tangible blade cartridge to maintain attention during abstract explanations - Offer a hands-on "build a blade cartridge" mock activity (assembling parts with tape on a demo board)

Dyslexia: - Provide printed handout with key vocabulary (blade, downforce, carriage, stepper motor) in large, dyslexia-friendly font - Use color-coded diagrams (all motors = blue, cutting head = red, material feed = green, etc.) - Offer audio description of slide content (pre-recorded or instructor narration)

Autism Spectrum: - Provide a detailed, step-by-step written outline of the session in advance (predictability) - Explicitly state social expectations: "You'll be working in small groups for the equipment tour. Each group will spend 5 minutes at the machine." - Offer a solo practice option if group work feels overwhelming

Anxiety: - Emphasize that blade handling is optional; learners can observe demonstrations without touching equipment - Provide a "safe word" for learners who feel overwhelmed during hands-on work - Reassure: "This is a learning environment. It's okay to ask questions. No one will judge."

---

Next Steps

After this slide, learners will move to Slide 2: Blade Types & Downforce Mechanics, which explores how blade geometry and cutting force interact with material properties to achieve clean, accurate cuts. They will then perform Activity 1: Machine Setup & Test Cuts, applying these concepts in hands-on practice.
