Slide 002: Blade Types, Downforce Mechanics, and Material Interaction

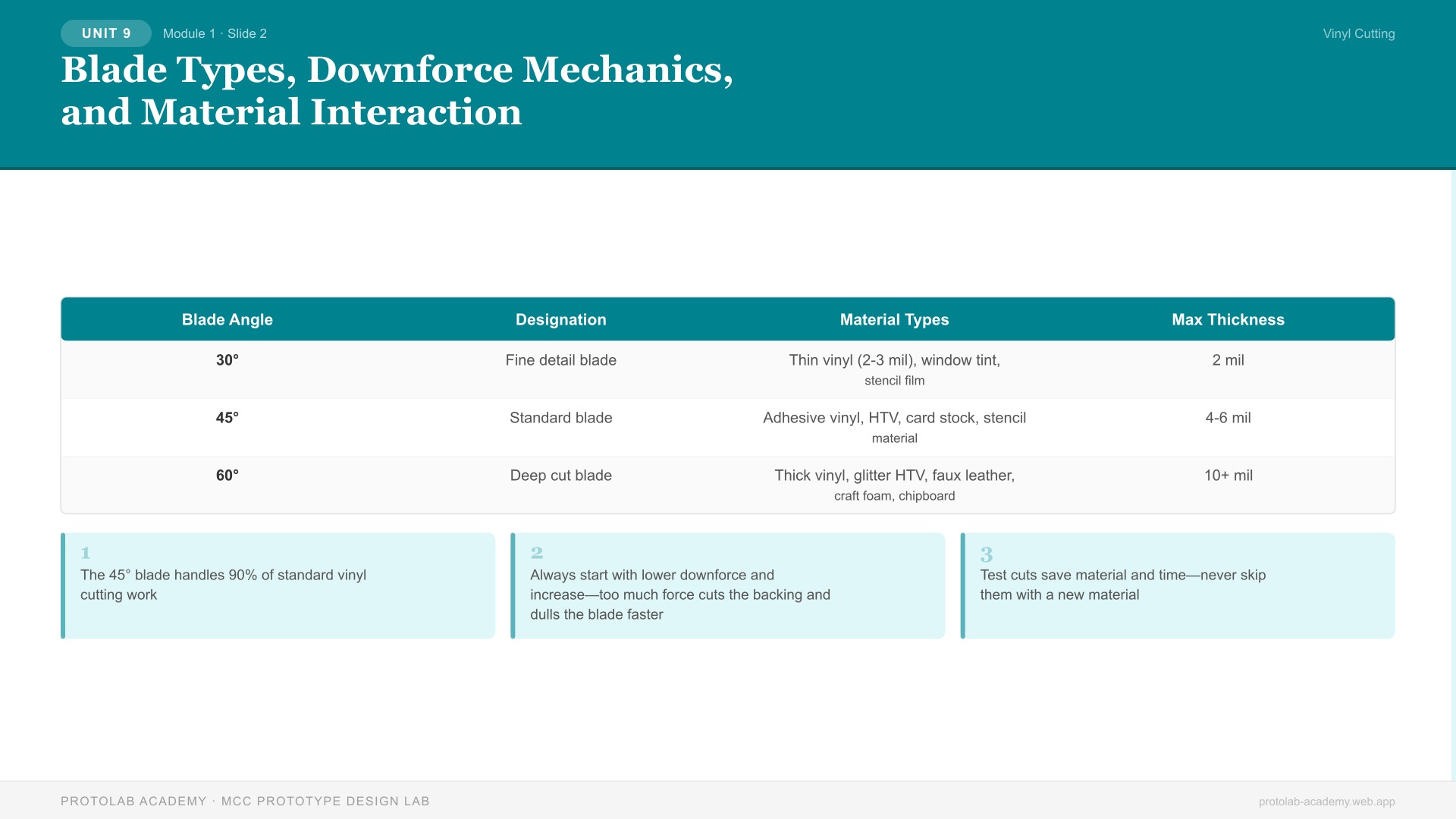

Slide Visual

Slide Overview

This slide covers the different blade types used in vinyl cutting, how cutting force (downforce) is calibrated for different materials, and the physics of how rotary blades interact with vinyl and other sheet materials.

Instruction Notes

Blade Types and Angles

Vinyl cutter blades are small carbide or tungsten steel blades mounted in a spring-loaded holder. The blade angle determines cutting depth capability and material compatibility.

Blade Angle	Designation	Material Types	Max Thickness
30°	Fine detail blade	Thin vinyl (2-3 mil), window tint, stencil film	2 mil
45°	Standard blade	Adhesive vinyl, HTV, card stock, stencil material	4-6 mil
60°	Deep cut blade	Thick vinyl, glitter HTV, faux leather, craft foam, chipboard	10+ mil

Blade offset: The blade tip does not align exactly with the blade center axis. The offset distance (typically 0.25-0.50mm) compensates for the difference between the pivot point and the actual cutting tip. Incorrect offset causes rounded corners or overcut corners. Each blade type requires a specific offset setting.

Downforce (Cutting Pressure)

Downforce is the vertical pressure applied by the blade holder to the material. Measured in grams-force (gf):

Material	Typical Downforce	Notes
Standard adhesive vinyl (Oracal 651)	80-120 gf	Cut through vinyl, not through backing
HTV (Siser EasyWeed)	100-150 gf	Mirror cut; blade through carrier, not liner
Card stock (65 lb)	150-200 gf	Full cut through material
Glitter HTV	180-250 gf	Thicker material requires more force
Stencil film (Oramask 813)	60-80 gf	Very thin, low force needed
Faux leather	250-350 gf	Multiple passes may be needed

The key principle: For vinyl with a backing (adhesive vinyl, HTV), the blade should cut completely through the vinyl layer but NOT through the backing/carrier sheet. This is called a kiss cut. Proper downforce calibration achieves this.

Test Cut Procedure

Every new material and blade combination requires a test cut before production:

1. Load the material and set initial downforce to a conservative value.
2. Run the built-in test cut pattern (typically a small square with a triangle inside).
3. Weed (peel away) the triangle. If it lifts cleanly without lifting the backing, the downforce is correct.
4. If the triangle does not cut through: increase downforce by 10-20 gf and retest.
5. If the backing is scored or cut through: decrease downforce and retest.
6. Also check the triangle corners: if corners are rounded, adjust blade offset. If corners overshoot, reduce offset.

Blade Maintenance

• Replace blades when cuts become ragged or require excessive downforce
• Clean blade holders regularly—vinyl residue builds up and affects spring tension
• A single blade typically lasts 500-1000 linear feet of cutting, depending on material
• Store spare blades in protective containers to prevent tip damage

Key Talking Points

• The 45° blade handles 90% of standard vinyl cutting work
• Always start with lower downforce and increase—too much force cuts the backing and dulls the blade faster
• Test cuts save material and time—never skip them with a new material
• Blade offset is the most commonly overlooked setting for new users

Learning Objectives (Concept Check)

• Can students select the correct blade angle for a given material?
• Can students perform a test cut and interpret the results?
• Do students understand the concept of a "kiss cut"?

---
