Slide 003: Design Software Workflow and File Preparation

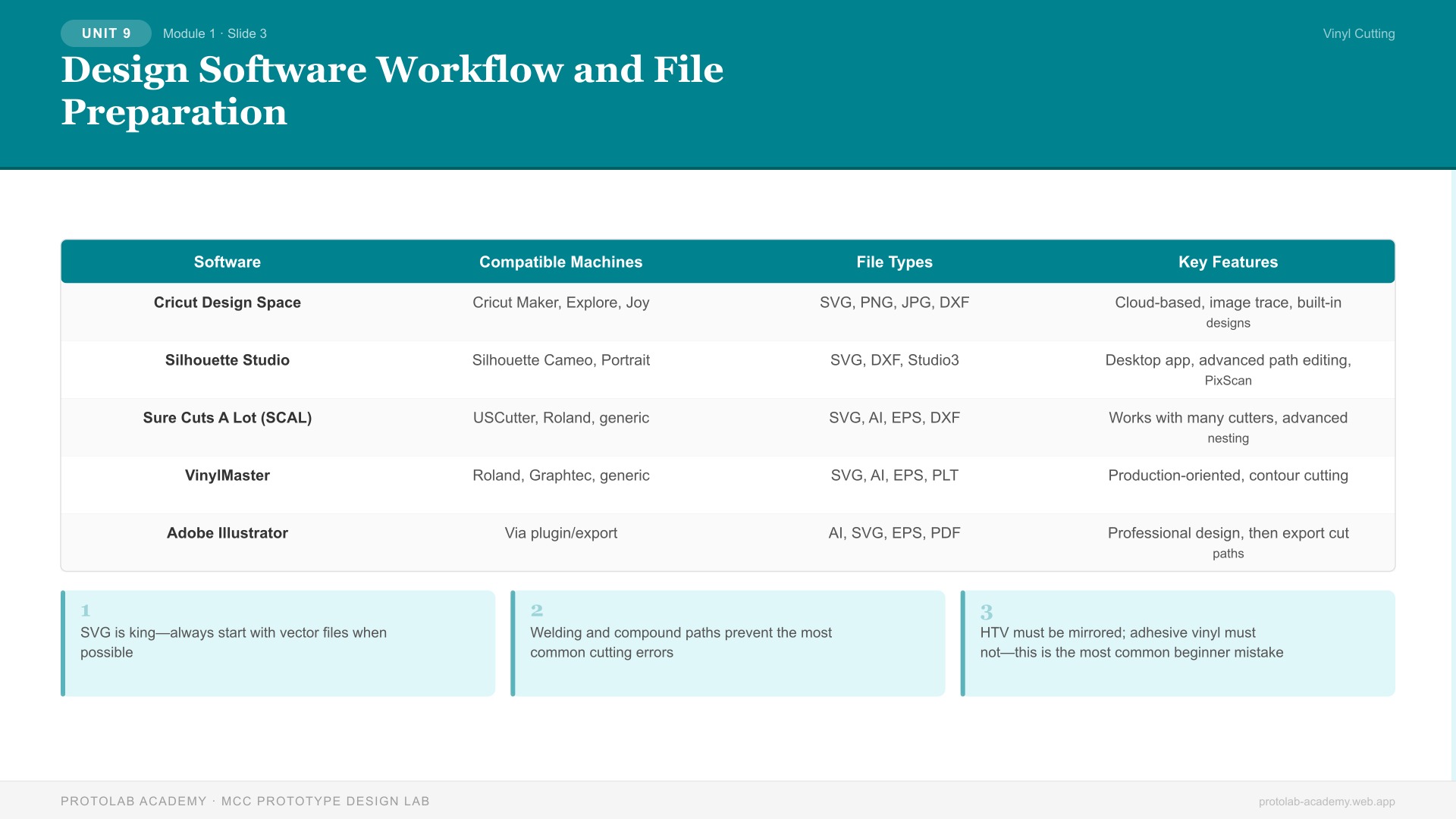

Slide Visual

Design Software Workflow and File Preparation

Slide Overview

This slide covers the design-to-cut workflow using common vinyl cutting software platforms, file format considerations, and path optimization techniques for clean, efficient cuts.

Instruction Notes

Design Software Platforms

Software Compatible Machines File Types Key Features
Cricut Design Space Cricut Maker, Explore, Joy SVG, PNG, JPG, DXF Cloud-based, image trace, built-in designs
Silhouette Studio Silhouette Cameo, Portrait SVG, DXF, Studio3 Desktop app, advanced path editing, PixScan
Sure Cuts A Lot (SCAL) USCutter, Roland, generic SVG, AI, EPS, DXF Works with many cutters, advanced nesting
VinylMaster Roland, Graphtec, generic SVG, AI, EPS, PLT Production-oriented, contour cutting
Adobe Illustrator Via plugin/export AI, SVG, EPS, PDF Professional design, then export cut paths

File Formats for Vinyl Cutting

SVG (Scalable Vector Graphics): The preferred format. SVG files contain mathematical path descriptions that scale without quality loss. Every vinyl cutting software accepts SVG.

DXF (Drawing Exchange Format): CAD-originated format. Good for technical/geometric designs. May require path cleanup when imported.

PNG/JPG (Raster Images): Must be traced (auto-trace or manual trace) to convert to cut paths. Auto-trace quality depends on image contrast and complexity. Clean, high-contrast black-and-white images trace best.

Path Optimization Workflow

  1. Import or create the design: Start with an SVG or trace a raster image.
  2. Verify paths are closed: Open paths will not cut correctly. Use the "close path" or "join nodes" function to ensure every shape is a closed contour.
  3. Weld overlapping shapes: If shapes overlap, weld/union them into a single path. Unwelded overlaps create internal cuts that weaken the design.
  4. Compound paths: Group multi-element designs (letters with counters like "O", "A", "B") as compound paths so the interior shapes (counters) are subtracted, not cut as separate pieces.
  5. Size and position: Set the design to the correct physical size. Position on the virtual mat to match the material location.
  6. Mirror (if needed): HTV designs MUST be mirrored before cutting because they are applied face-down. Adhesive vinyl is NOT mirrored.
  7. Set cut parameters: Select the material preset or manually set blade type, downforce, speed, and multi-pass settings.
  8. Send to cutter: Transmit the job. Many cutters have a USB or Bluetooth connection.

Design Best Practices

  • Minimum feature size: Lines thinner than 1/4" (6mm) are very difficult to weed. Avoid text smaller than 1/2" height for standard vinyl.
  • Weeding lines: For complex designs, add weeding boxes or lines to divide the design into manageable sections.
  • Font selection: Sans-serif fonts (Arial, Helvetica, Montserrat) cut and weed more reliably than serif or script fonts.
  • Path direction: Some cutters perform better when paths are cut inside-out (smallest features first). Check your software's cut order settings.

Key Talking Points

  • SVG is kingβ€”always start with vector files when possible
  • Welding and compound paths prevent the most common cutting errors
  • HTV must be mirrored; adhesive vinyl must notβ€”this is the most common beginner mistake
  • Test your design at the intended size before committing to expensive material

Learning Objectives (Concept Check)

  • Can students prepare an SVG file for cutting with proper path closure and welding?
  • Can students explain when to mirror a design?
  • Do students understand the difference between vector and raster files for cutting?
