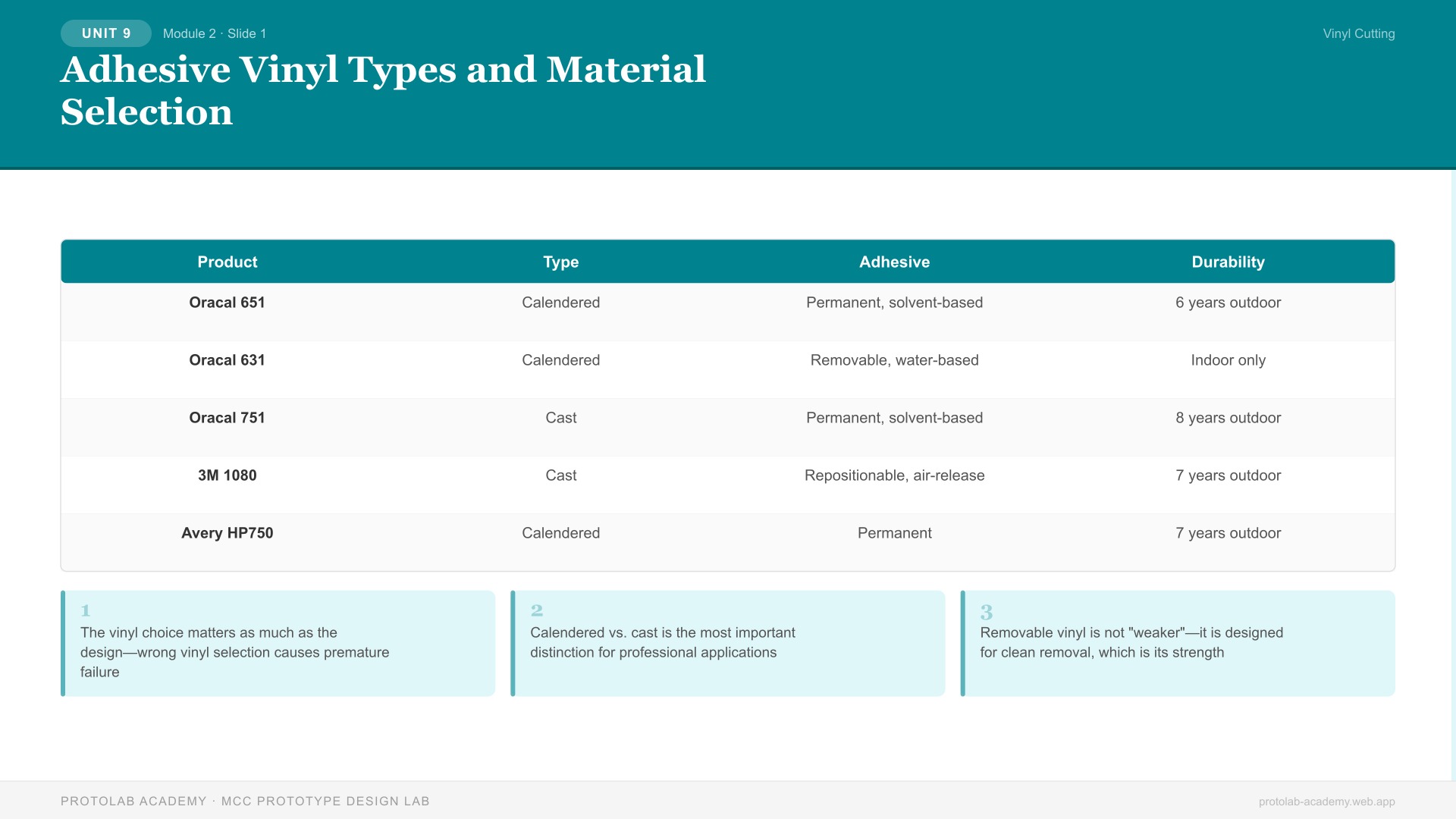

Slide 001: Adhesive Vinyl Types and Material Selection¶
Slide Visual¶
Slide Overview¶
This slide covers the different types of adhesive vinyl, their properties, and how to select the correct vinyl for each application based on durability, surface type, and environmental exposure requirements.
Instruction Notes¶
Adhesive Vinyl Categories¶
Calendered Vinyl: Manufactured by extruding PVC through rollers. The most common type for craft and small-format signage. Characteristics: cost-effective, wide color range, 2-7 mil thickness, 1-6 year outdoor durability. Limitations: tends to shrink over time (especially in heat), does not conform well to compound curves.
Cast Vinyl: Manufactured by pouring liquid PVC onto a casting sheet and baking. Premium material for vehicle wraps and contoured surfaces. Characteristics: thinner (2-3 mil), more conformable, 7-12 year durability, minimal shrinkage. Limitations: more expensive (3-5x calendered cost), requires more skill to apply.
Common Product Lines¶
| Product | Type | Adhesive | Durability | Best Applications |
|---|---|---|---|---|
| Oracal 651 | Calendered | Permanent, solvent-based | 6 years outdoor | Signs, decals, tumblers, mailboxes |
| Oracal 631 | Calendered | Removable, water-based | Indoor only | Wall decals, stencils, temporary signs |
| Oracal 751 | Cast | Permanent, solvent-based | 8 years outdoor | Vehicle graphics, outdoor signs |
| 3M 1080 | Cast | Repositionable, air-release | 7 years outdoor | Vehicle wraps, contoured surfaces |
| Avery HP750 | Calendered | Permanent | 7 years outdoor | Fleet graphics, banners |
Selection Criteria¶
Choose vinyl based on these factors: 1. Indoor vs. outdoor: Indoor-only applications can use removable or permanent. Outdoor requires permanent with UV-resistant pigments. 2. Surface type: Flat surfaces β calendered is fine. Curved/contoured β cast vinyl required (it conforms without lifting). 3. Duration: Temporary (< 1 year) β removable. Semi-permanent β calendered permanent. Long-term β cast. 4. Surface material: Most smooth, non-porous surfaces accept vinyl well. Textured surfaces, fresh paint, and low-energy plastics require special adhesive types. 5. Temperature exposure: Standard vinyl adhesive works from -40Β°F to 180Β°F. Higher temperatures require specialty high-temp vinyl.
Adhesive Chemistry¶
- Solvent-based adhesive: Aggressive bond, good outdoor performance, difficult to remove after aging. Standard for permanent applications.
- Water-based adhesive: Gentle bond, clean removal, repositionable during application. Indoor/temporary use.
- Air-release adhesive: Contains microchannels that allow air bubbles to escape. Essential for large graphics. Premium feature on cast vinyl.
Key Talking Points¶
- The vinyl choice matters as much as the designβwrong vinyl selection causes premature failure
- Calendered vs. cast is the most important distinction for professional applications
- Removable vinyl is not "weaker"βit is designed for clean removal, which is its strength
- Air-release channels make large applications dramatically easier
Learning Objectives (Concept Check)¶
- Can students distinguish between calendered and cast vinyl?
- Can students select the correct vinyl type for a given application scenario?
- Do students understand why surface type affects vinyl selection?
Last Updated: 2026-03-19
