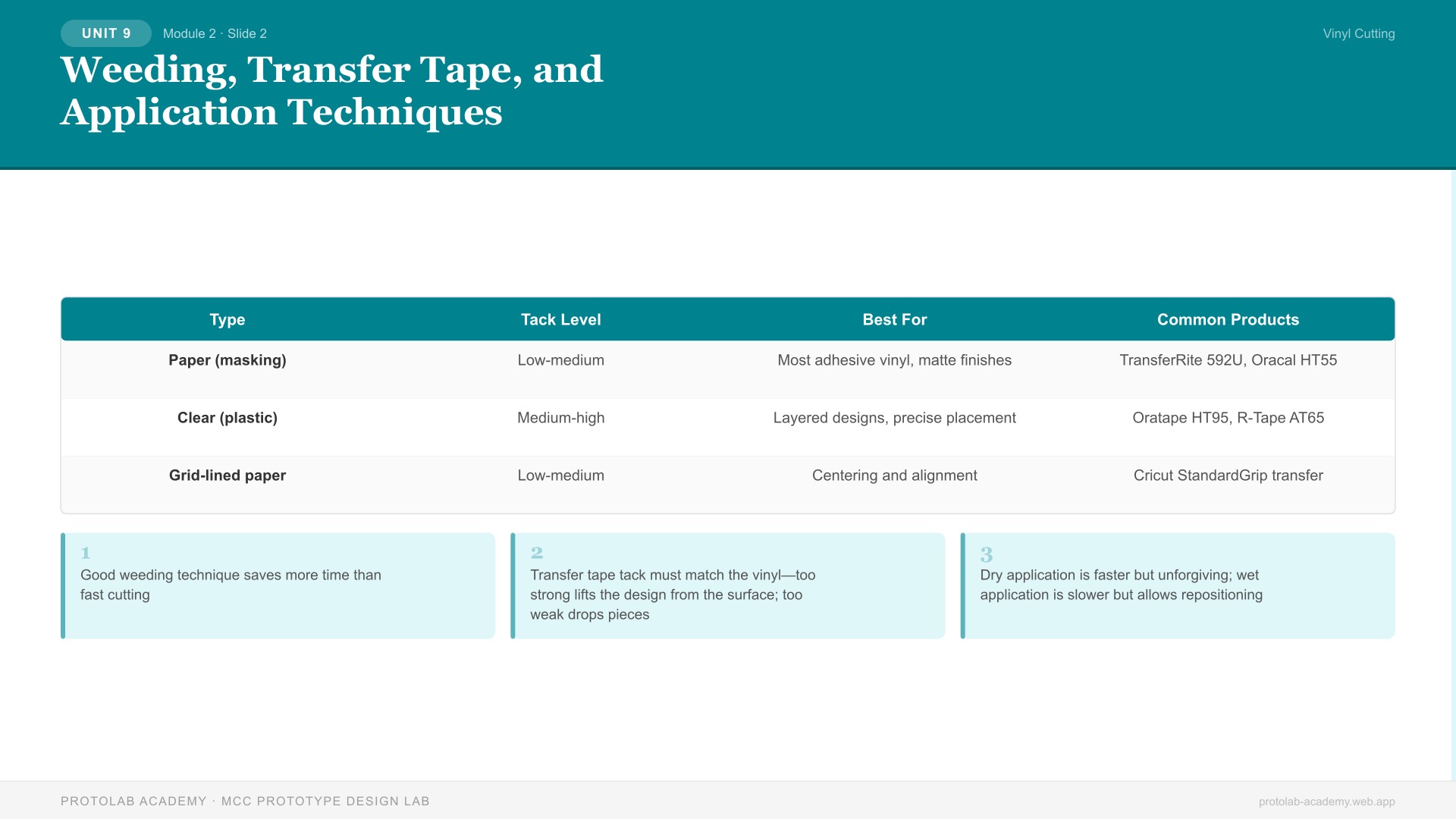

Slide 002: Weeding, Transfer Tape, and Application Techniques¶
Slide Visual¶
Slide Overview¶
This slide covers the complete post-cutting workflow: weeding technique, transfer tape selection and application, surface preparation, and both dry and wet application methods.
Instruction Notes¶
Weeding Technique¶
Weeding removes the negative space (unwanted vinyl) from the cut design. It is often the most time-consuming step in vinyl work.
Tools: Weeding hook (fine-point pick), X-Acto knife (for stubborn areas), tweezers (for small pieces), light pad or bright light source (to see cut lines clearly).
Process: 1. Start at a corner or edge of the design. Use the hook to lift the edge of the waste vinyl. 2. Pull slowly at a 45° angle. Fast pulling can lift the design pieces from the backing. 3. For complex designs, work in sections—add weeding lines to the design file to divide large waste areas into manageable strips. 4. Use the light pad to verify all small interior pieces (counters in letters, small details) are removed. 5. Check that all design elements remain firmly on the backing.
Transfer Tape Types¶
| Type | Tack Level | Best For | Common Products |
|---|---|---|---|
| Paper (masking) | Low-medium | Most adhesive vinyl, matte finishes | TransferRite 592U, Oracal HT55 |
| Clear (plastic) | Medium-high | Layered designs, precise placement | Oratape HT95, R-Tape AT65 |
| Grid-lined paper | Low-medium | Centering and alignment | Cricut StandardGrip transfer |
Application: Cut a piece of transfer tape slightly larger than the design. Peel the backing from the tape and lay it over the weeded design. Use a squeegee to firmly press the tape onto the vinyl, working from center outward. The vinyl should adhere more strongly to the transfer tape than to its original backing.
Dry Application Method¶
Best for small-to-medium designs on flat surfaces: 1. Clean the surface with isopropyl alcohol. Let dry completely. 2. Peel the design+transfer tape assembly from the vinyl backing. 3. Position over the target location. Once contact is made, the adhesive bonds immediately—placement must be accurate. 4. Press from center outward with a squeegee. Apply firm, overlapping strokes. 5. Wait 30-60 seconds, then peel the transfer tape slowly at a 180° angle (back on itself). If the vinyl lifts with the tape, press again and wait longer.
Wet Application Method¶
Essential for large graphics where repositioning is needed: 1. Clean the surface. 2. Spray a solution of water + 2-3 drops of dish soap onto the surface. 3. Peel the design+transfer tape from the backing and place on the wet surface. 4. Slide the design into precise position—the soapy water prevents immediate bonding. 5. Squeegee from center outward, pushing water and air toward the edges. 6. Allow to dry for 30-60 minutes before removing transfer tape. 7. Re-squeegee after transfer tape removal to ensure edge adhesion.
Critical note: Wet application delays full adhesive bond by 24-48 hours. Do not wash or expose to weather during this extended curing period.
Key Talking Points¶
- Good weeding technique saves more time than fast cutting
- Transfer tape tack must match the vinyl—too strong lifts the design from the surface; too weak drops pieces
- Dry application is faster but unforgiving; wet application is slower but allows repositioning
- Always peel transfer tape at 180° (back on itself), not straight up
Learning Objectives (Concept Check)¶
- Can students weed a multi-element design cleanly?
- Can students select the correct transfer tape for a given vinyl type?
- Can students perform both wet and dry application methods?
Last Updated: 2026-03-19
