Slide 003: Layered Vinyl Designs and Troubleshooting¶

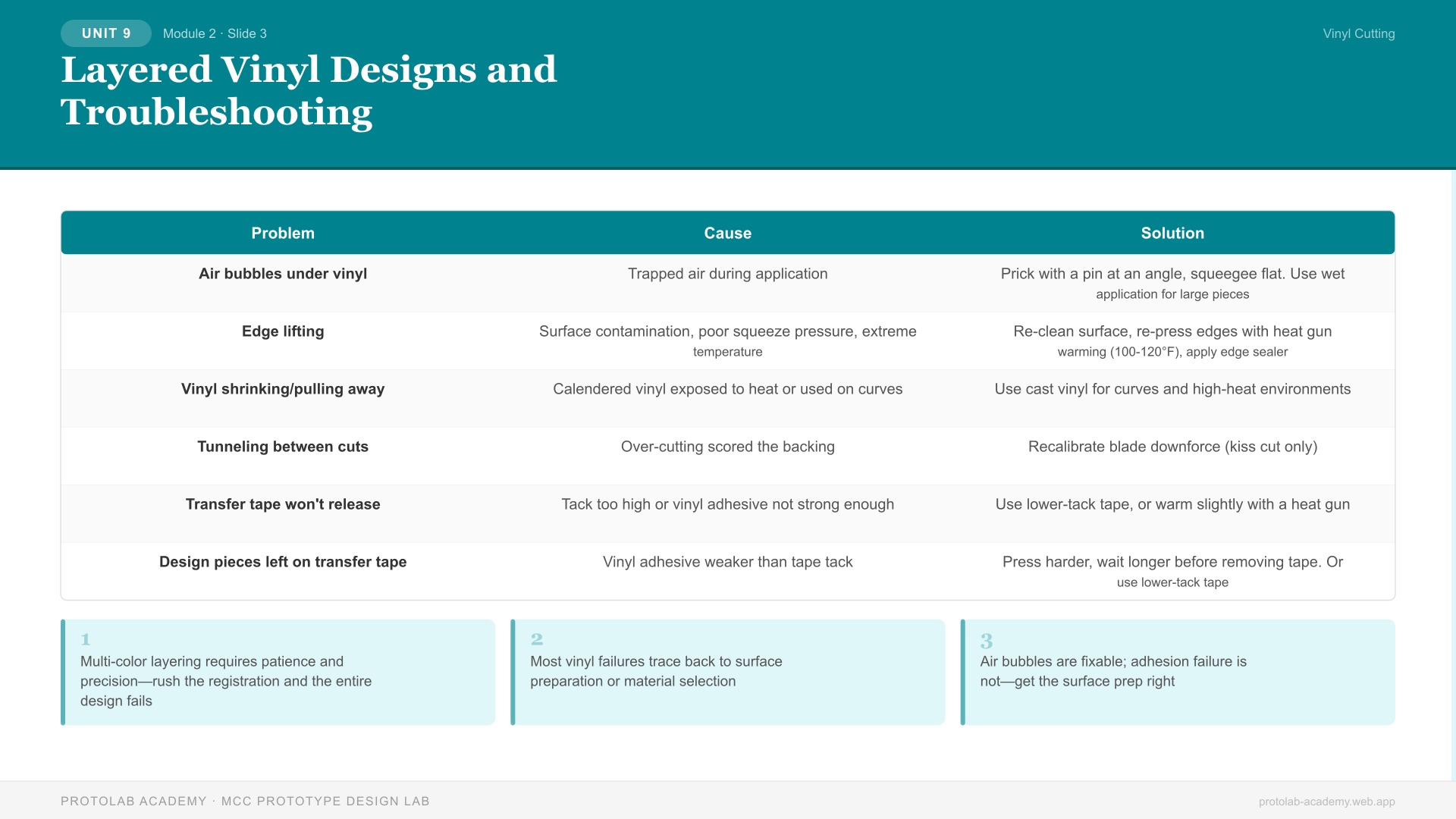

Slide Visual¶
Slide Overview¶
This slide covers multi-color layered vinyl techniques using registration marks, and provides a comprehensive troubleshooting guide for common adhesive vinyl failures.
Instruction Notes¶
Multi-Color Layered Vinyl¶
Since vinyl cutters cut one color at a time, multi-color designs require layering individual color cuts. This technique builds complex graphics from separate single-color elements.
Design file preparation: 1. Create the full design in the design software with all colors visible. 2. Separate each color into its own layer. 3. Add registration marks (small crosses or circles) at identical positions on each color layer—these marks align the layers during application. 4. Cut each color layer separately. Include registration marks in each cut.
Application sequence: 1. Apply the base (background) layer first. Position using the registration marks. 2. Weed and transfer-tape the second color layer. 3. Align the registration marks of the second layer over the first layer's marks. Press down. 4. Remove transfer tape. 5. Repeat for each additional color. 6. Trim or cover registration marks if they fall outside the design area.
Tips for accurate registration: - Use clear transfer tape for layers 2+ so you can see the registration marks below - Hinge method: tape one edge of the transfer tape sheet as a hinge, align marks, then lower like a book page - Keep layer count to 3-4 maximum—more layers create thickness that affects durability
Troubleshooting Guide¶
| Problem | Cause | Solution |
|---|---|---|
| Air bubbles under vinyl | Trapped air during application | Prick with a pin at an angle, squeegee flat. Use wet application for large pieces |
| Edge lifting | Surface contamination, poor squeeze pressure, extreme temperature | Re-clean surface, re-press edges with heat gun warming (100-120°F), apply edge sealer |
| Vinyl shrinking/pulling away | Calendered vinyl exposed to heat or used on curves | Use cast vinyl for curves and high-heat environments |
| Tunneling between cuts | Over-cutting scored the backing | Recalibrate blade downforce (kiss cut only) |
| Transfer tape won't release | Tack too high or vinyl adhesive not strong enough | Use lower-tack tape, or warm slightly with a heat gun |
| Design pieces left on transfer tape | Vinyl adhesive weaker than tape tack | Press harder, wait longer before removing tape. Or use lower-tack tape |
| Vinyl won't stick to surface | Low surface energy (some plastics, silicone, powder coat outgassing) | Use surface activator/primer. Verify surface is cured (30+ days for paint) |
| Colors misaligned in layered design | Registration marks not aligned | Use clear transfer tape, slow down alignment, use hinge method |
| Vinyl cracking after application | Calendered vinyl on compound curve | Must use cast vinyl for 3D curves |
| Ghosting/residue on removal | Permanent vinyl left too long | Use heat gun to warm adhesive, peel slowly. Use adhesive remover for residue |
Vinyl Longevity Factors¶
| Factor | Impact | Mitigation |
|---|---|---|
| UV exposure | Fading, brittleness | Use UV-rated vinyl, laminate for maximum life |
| Temperature extremes | Adhesive failure, shrinkage | Use appropriate vinyl grade for the environment |
| Chemical exposure | Adhesive breakdown | Use solvent-resistant vinyl or laminate |
| Abrasion | Surface damage | Apply clear laminate over high-wear areas |
| Moisture (edges) | Edge lifting | Seal edges with clear coat or edge sealer |
Key Talking Points¶
- Multi-color layering requires patience and precision—rush the registration and the entire design fails
- Most vinyl failures trace back to surface preparation or material selection
- Air bubbles are fixable; adhesion failure is not—get the surface prep right
- Cast vinyl is always the safe choice when in doubt about surface contours
Learning Objectives (Concept Check)¶
- Can students prepare a multi-color design with registration marks?
- Can students diagnose common adhesive vinyl failures?
- Do students understand the relationship between vinyl type and application surface?
Last Updated: 2026-03-19
