Slide 003: Heat Press Application and Multi-Layer Techniques¶

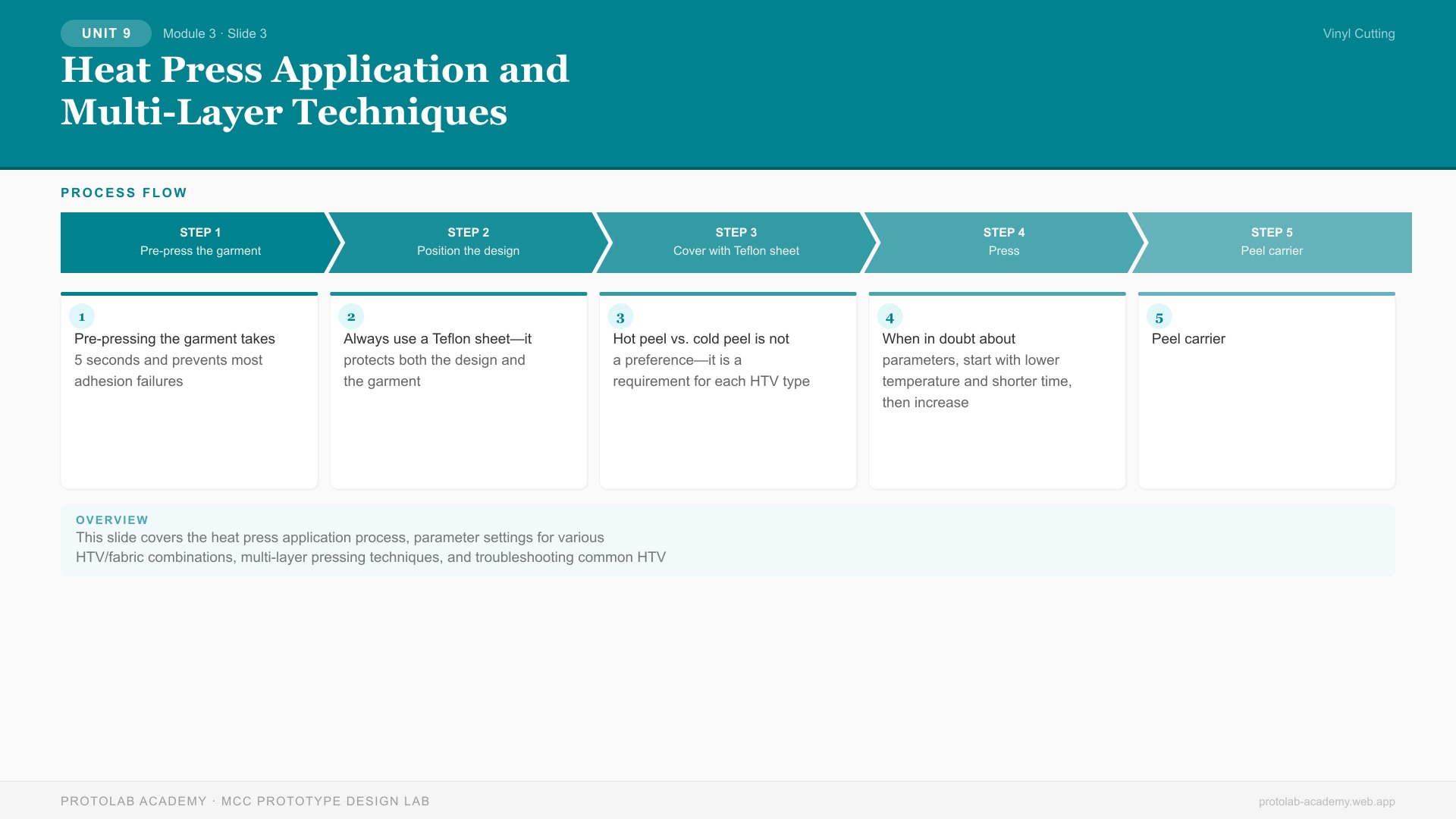

Slide Visual¶
Slide Overview¶
This slide covers the heat press application process, parameter settings for various HTV/fabric combinations, multi-layer pressing techniques, and troubleshooting common HTV failures.
Instruction Notes¶
Heat Press Application Process¶
Step 1: Pre-press the garment (5 seconds at operating temperature) - Removes moisture, wrinkles, and sizing chemicals - Creates a smooth, warm surface for better adhesion - Skip this step = risk of adhesion failure from trapped moisture
Step 2: Position the design - Place the garment on the heat press platen - Position the HTV design (carrier side up, vinyl/adhesive side touching the fabric) - Use a ruler or placement template to center the design - Smooth any wrinkles in the fabric under and around the design
Step 3: Cover with Teflon sheet - Place a Teflon (PTFE) sheet or parchment paper over the design - This prevents direct heat contact with the carrier and protects the garment
Step 4: Press - Close the heat press firmly - Timer starts automatically or manually - Do not lift or adjust during the pressing cycle
Step 5: Peel carrier - Hot peel: Open the press, immediately peel the carrier at a 45° angle while the HTV is warm - Cold peel: Open the press, wait 30-60 seconds for the HTV to cool to room temperature, then peel
Step 6: Post-press (optional but recommended) - Place the Teflon sheet over the pressed design - Close the press for 3-5 seconds - This ensures complete adhesive activation, especially at edges
Parameter Reference Table¶
| HTV Type | Temperature | Time | Pressure | Peel |
|---|---|---|---|---|
| Siser EasyWeed | 305°F (150°C) | 10-15 sec | Medium | Hot |
| Siser Glitter | 320°F (160°C) | 15-20 sec | Medium-firm | Cold |
| Siser Flock | 320°F (160°C) | 15-20 sec | Medium-firm | Cold |
| Siser Stretch | 305°F (150°C) | 10-15 sec | Medium | Hot |
| Siser Puff | 300°F (149°C) | 10 sec | Light | Cold |
| Generic standard HTV | 310°F (155°C) | 15 sec | Medium | Varies |
| Low-temp HTV (nylon) | 280°F (138°C) | 15-20 sec | Light | Cold |
Multi-Layer HTV Pressing¶
For multi-color designs without printable HTV:
- Layer 1 (base): Press at full recommended time and temperature. Peel carrier.
- Layer 2: Position on top of Layer 1. Cover with Teflon sheet (protects Layer 1 from re-melting).
- Press Layer 2 at recommended temperature but reduce time by 2-3 seconds (Layer 1 gets additional heat exposure).
- If cold peel, wait to cool. If hot peel, peel immediately.
- Layer 3 (if needed): Same process, reduce time another 2 seconds.
Maximum recommended layers: 2-3. Beyond 3 layers, the stack becomes stiff and prone to cracking.
Troubleshooting HTV Failures¶
| Problem | Cause | Fix |
|---|---|---|
| HTV peels off after pressing | Insufficient time, temp, or pressure | Re-press with correct parameters + Teflon cover |
| HTV peels off after washing | Incomplete adhesive activation | Re-press; wash inside-out, no bleach, tumble dry low |
| Scorched garment | Temperature too high, pressed too long | Lower temperature, reduce time, always use Teflon sheet |
| Vinyl lifting at edges | Uneven pressure, wrinkles underneath | Re-press with firm pressure, ensure flat surface |
| Carrier won't release (cold peel) | Not cooled sufficiently | Wait until fully cool (60+ seconds) |
| Carrier pulls vinyl off (hot peel) | Over-pressed or vinyl defective | Reduce time, try different brand |
| Dye migration (yellow/pink tint) | Polyester dye sublimating into HTV | Use sublimation-blocking HTV on polyester |
| Design cracking after washing | HTV not flexible enough for fabric stretch | Use stretch HTV, wash inside-out on gentle |
Key Talking Points¶
- Pre-pressing the garment takes 5 seconds and prevents most adhesion failures
- Always use a Teflon sheet—it protects both the design and the garment
- Hot peel vs. cold peel is not a preference—it is a requirement for each HTV type
- When in doubt about parameters, start with lower temperature and shorter time, then increase
Learning Objectives (Concept Check)¶
- Can students set correct heat press parameters for standard and specialty HTV?
- Can students explain the multi-layer pressing procedure?
- Can students diagnose common HTV failure modes?
