Slide 001: Heat Press Types and Equipment Anatomy¶

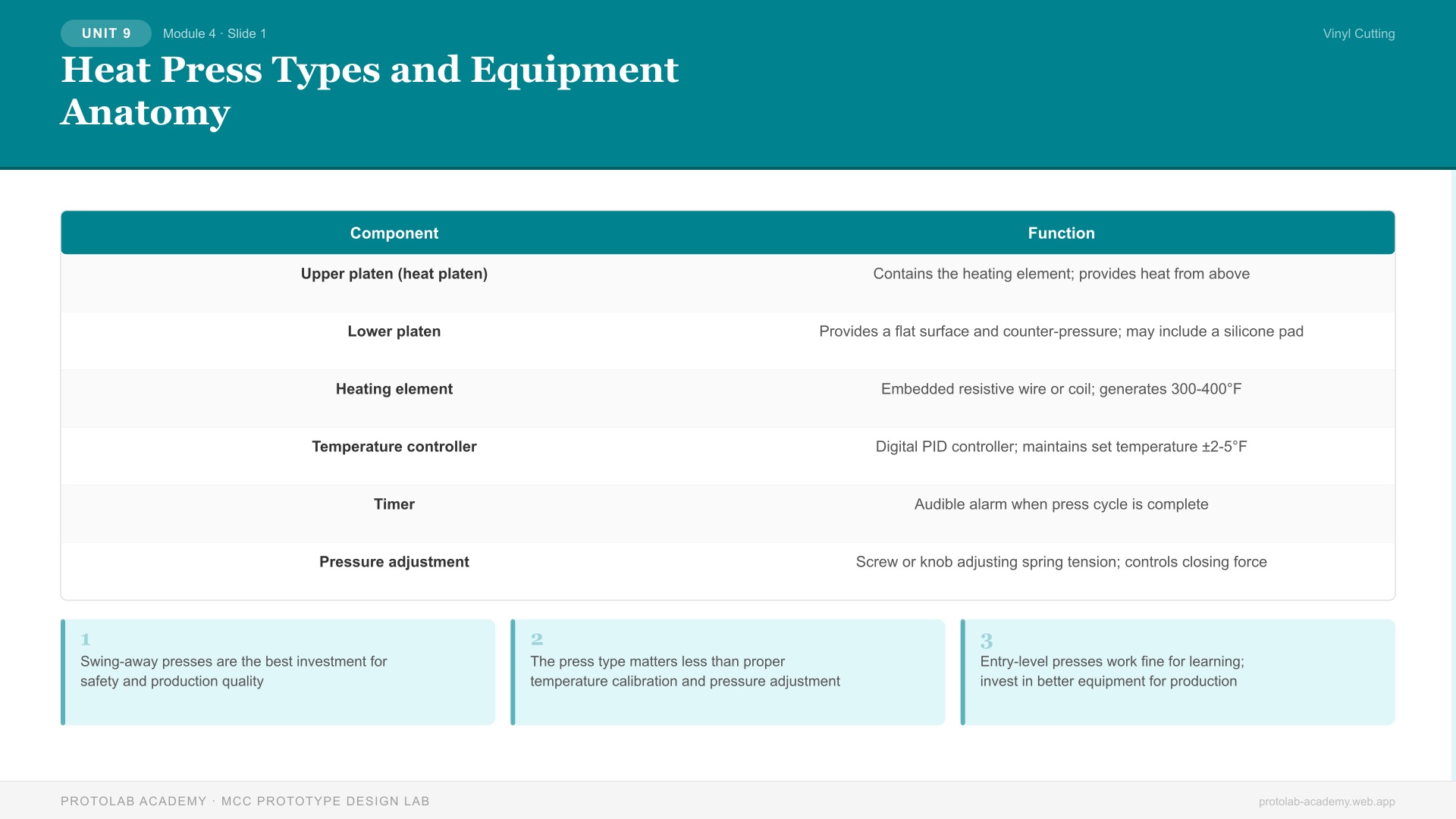

Slide Visual¶
Slide Overview¶
This slide introduces the different heat press designs, their mechanical components, and the specifications that determine which press is appropriate for different production needs.
Instruction Notes¶
Heat Press Design Types¶
Clamshell Press The most common and affordable design. The upper platen is hinged at the back and opens upward like a clamshell. Advantages: compact footprint, lower cost, simple mechanism. Disadvantages: the upper platen hovers over the work area when open (burn risk), and the hinge angle means slightly uneven pressure from front to back.
Swing-Away Press The upper platen swings to the side (typically left) on a pivot arm, providing complete access to the lower platen. Advantages: full access for positioning, no burn risk from hovering platen, more even pressure distribution. Disadvantages: requires more workspace, heavier, and more expensive.
Draw (Drawer-Style) Press The lower platen slides out toward the operator on rails while the upper platen remains fixed. Advantages: operator never reaches under the hot platen, excellent for production environments, some models have dual lower platens for alternating pressing. Disadvantages: most expensive, largest footprint.
Key Components¶
| Component | Function |
|---|---|
| Upper platen (heat platen) | Contains the heating element; provides heat from above |
| Lower platen | Provides a flat surface and counter-pressure; may include a silicone pad |
| Heating element | Embedded resistive wire or coil; generates 300-400°F |
| Temperature controller | Digital PID controller; maintains set temperature ±2-5°F |
| Timer | Audible alarm when press cycle is complete |
| Pressure adjustment | Screw or knob adjusting spring tension; controls closing force |
| Teflon cover | Non-stick cover on upper platen; prevents adhesive transfer |
| Silicone pressure pad | Compressible pad on lower platen; ensures even pressure |
Specifications Comparison¶
| Specification | Entry Level | Mid-Range | Professional |
|---|---|---|---|
| Platen size | 12"×10" | 15"×15" | 16"×20" to 16"×24" |
| Temperature range | 200-450°F | 200-500°F | 200-500°F |
| Temperature accuracy | ±10°F | ±5°F | ±2°F |
| Pressure type | Spring adjustment | Spring adjustment | Pneumatic (auto) |
| Timer | Manual | Digital auto-open | Digital auto-open |
| Weight | 30-50 lbs | 60-100 lbs | 100-200 lbs |
| Price range | $150-300 | $400-800 | $1000-3000+ |
Specialty Press Attachments¶
- Mug press: Curved heating element for 11oz, 15oz, and travel mugs
- Hat/cap press: Curved lower platen matching hat crown shape, 4"×7" element
- Plate press: Circular element for ceramic plates (8"-10" diameter)
- Mini press: Small 3"×5" platen for labels, tags, and small items
Key Talking Points¶
- Swing-away presses are the best investment for safety and production quality
- The press type matters less than proper temperature calibration and pressure adjustment
- Entry-level presses work fine for learning; invest in better equipment for production
- Specialty attachments expand capabilities without needing separate machines
Learning Objectives (Concept Check)¶
- Can students identify the three main press types and their advantages?
- Can students name all major components?
- Do students understand how platen size affects project capability?
