Slide 001: Structured Light Scanning Principles¶

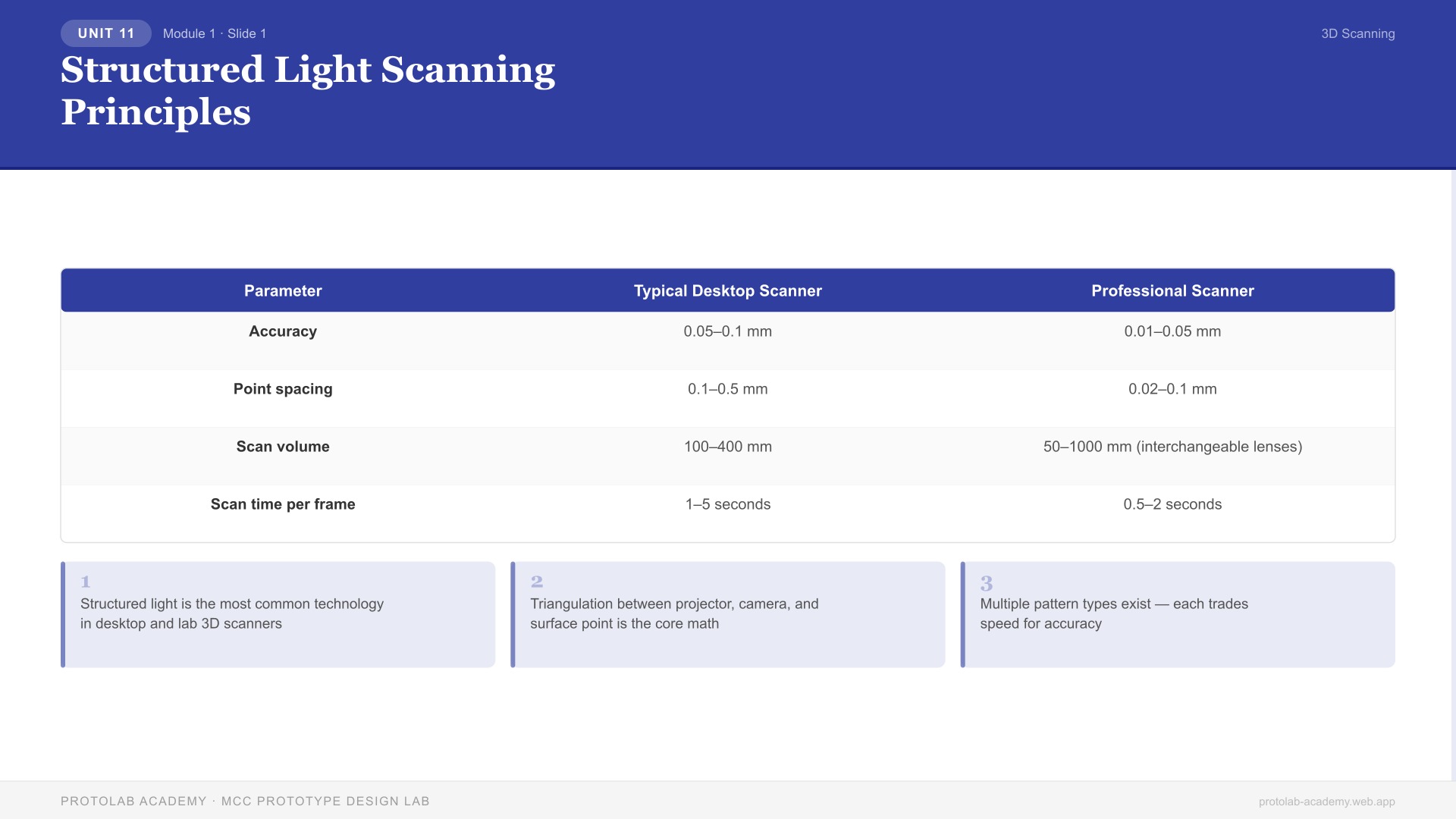

Slide Visual¶
Slide Overview¶
This slide introduces structured light 3D scanning — the most common scanning technology found in desktop and professional lab environments. Students learn how pattern projection and triangulation work together to capture surface geometry, and why structured light is the dominant technology for makerspace-scale applications.
Instruction Notes¶
How Structured Light Scanning Works¶
Structured light scanning uses a projector (DLP, LED, or laser-based) to cast a known pattern onto the object surface. A camera, offset from the projector at a calibrated baseline distance and angle, observes how the projected pattern deforms across the 3D surface. The deformation encodes depth information — flat surfaces show undistorted patterns, while curved or raised surfaces stretch, compress, or shift the pattern.
The mathematical foundation is triangulation. The projector, the camera, and any given surface point form a triangle. Since the projector-camera baseline is known and the projected pattern position is known, the system solves for the third vertex — the 3D position of the surface point. Modern systems compute millions of these triangulations per frame, generating dense point clouds in seconds.
Pattern Types¶
Different pattern strategies trade off between speed, accuracy, and noise resistance:
- Binary stripe patterns: Alternating black/white stripes of varying widths. Each surface point receives a unique binary code based on which stripes illuminate it. Robust but requires multiple projections (8-12 frames typical).
- Phase-shifted sinusoidal patterns: Smooth gradient stripes shifted in phase across multiple frames. Offers sub-pixel accuracy but sensitive to ambient light and surface reflectance.
- Single-shot coded patterns: Unique local patterns allow 3D capture from a single frame. Faster but lower resolution — used in real-time applications like face tracking.
Key Specifications¶
| Parameter | Typical Desktop Scanner | Professional Scanner |
|---|---|---|
| Accuracy | 0.05–0.1 mm | 0.01–0.05 mm |
| Point spacing | 0.1–0.5 mm | 0.02–0.1 mm |
| Scan volume | 100–400 mm | 50–1000 mm (interchangeable lenses) |
| Scan time per frame | 1–5 seconds | 0.5–2 seconds |
Strengths and Limitations¶
Structured light excels at capturing organic shapes, faces, art objects, and medium-scale parts. It struggles with highly reflective surfaces (specular reflection scatters the pattern), transparent objects, very dark surfaces (absorb projected light), and fine edges or sharp corners where the pattern becomes ambiguous.
Key Talking Points¶
- Structured light is the most common technology in desktop and lab 3D scanners
- Triangulation between projector, camera, and surface point is the core math
- Multiple pattern types exist — each trades speed for accuracy
- Surface properties (reflectance, color, transparency) directly affect scan quality
- Dulling spray or scanning powder can mitigate reflective/transparent surface challenges
Learning Objectives (Concept Check)¶
- Explain the triangulation principle behind structured light scanning
- Identify at least two pattern projection strategies and their trade-offs
- Describe typical accuracy and resolution specifications for desktop scanners
- List surface types that challenge structured light scanners
