Slide 001: Scanner Calibration Procedures¶

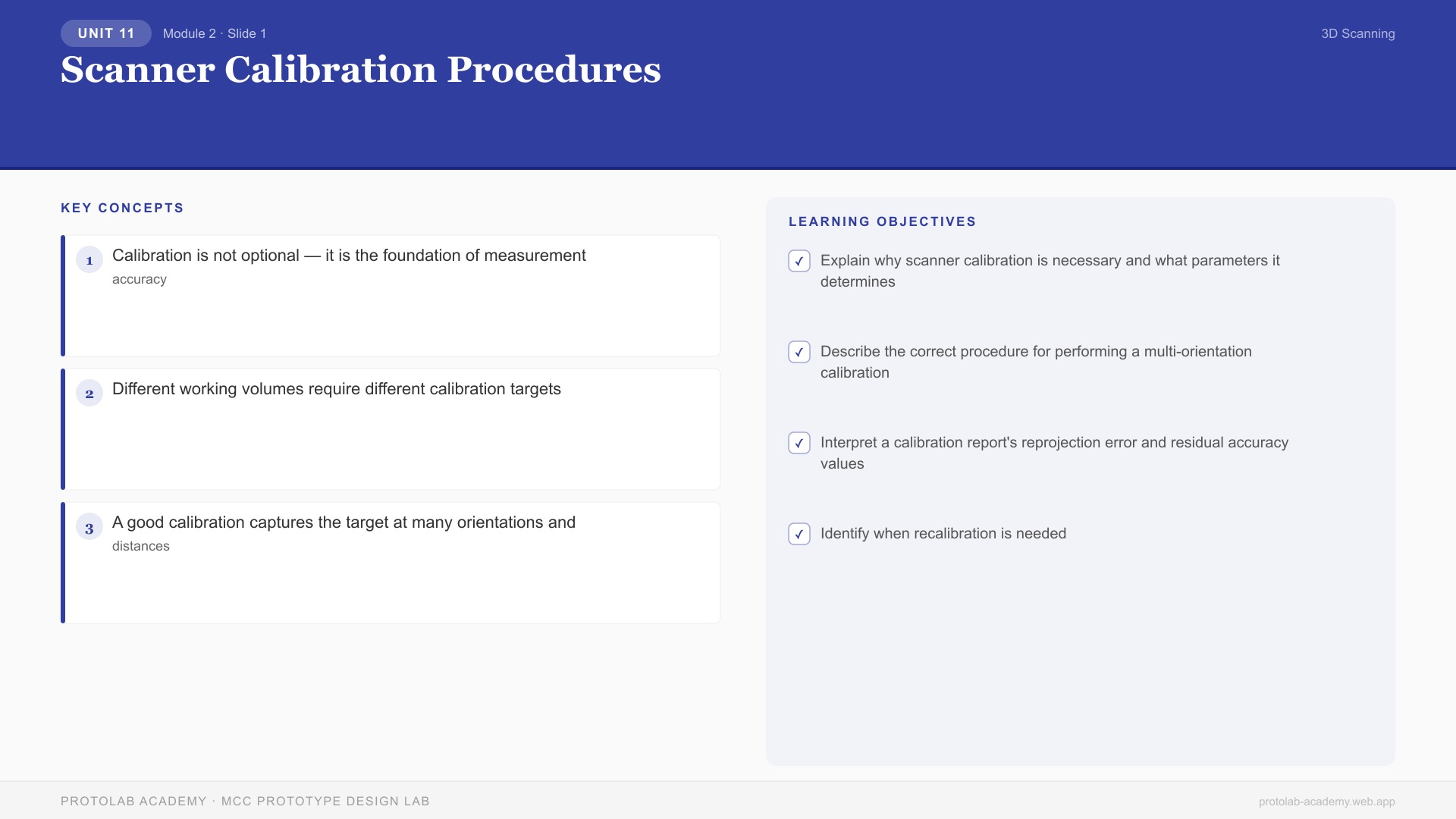

Slide Visual¶
Slide Overview¶
This slide covers the complete calibration workflow for desktop 3D scanners. Students learn why calibration is necessary, how calibration targets work, the step-by-step calibration procedure, and how to verify calibration quality. This is a prerequisite skill before any scanning session.
Instruction Notes¶
Why Calibrate?¶
Every 3D scanner contains optical components (lenses, sensors, projectors) that must work together with sub-millimeter precision. Manufacturing tolerances, thermal expansion, mechanical shock from transport, and lens distortion all introduce systematic errors. Calibration measures and compensates for these errors by establishing the precise mathematical relationship between all optical components.
Without calibration, the triangulation equations produce coordinates that may be internally consistent but are not dimensionally accurate. A 10 mm part might measure as 10.3 mm, or a flat surface might appear curved. Calibration eliminates these systematic biases.
Calibration Target Design¶
Desktop structured light scanners typically use flat calibration panels (boards) with precision-manufactured patterns:
- Checkerboard patterns: Alternating black/white squares whose corner positions are known to ±0.005 mm. The scanner detects corners in the camera image and compares to known positions.
- Dot patterns: Arrays of circular dots whose center positions are precisely known. Circle detection algorithms locate dot centers with sub-pixel accuracy.
- Coded targets: Unique dot arrangements that allow the software to identify which target is which, enabling automatic orientation detection.
Targets are manufactured from dimensionally stable materials (glass-filled ceramic, aluminum with printed patterns) to resist thermal expansion and warping.
Calibration Procedure (Typical Desktop Scanner)¶
- Select correct calibration target for your working volume (scanners may include multiple targets for different volume sizes)
- Place target on a stable surface at the scanner's optimal working distance
- Launch calibration wizard in scanner software
- Capture target at multiple positions and orientations — typically 8-15 captures at different angles (tilted left, right, forward, back) and distances (near, mid, far within working range)
- Software computes intrinsic parameters (focal length, principal point, lens distortion coefficients) and extrinsic parameters (projector-camera relative position and orientation)
- Review calibration report — check reprojection error (should be < 0.1 pixels) and residual accuracy (should meet scanner specification)
- Verify with reference artifact — scan a known object (gauge block, calibration sphere) and compare measured vs. nominal dimensions
When Calibration Goes Wrong¶
Common calibration failures include: using a damaged or warped target, insufficient orientation variety (all captures at similar angles), ambient light washing out the pattern, and vibration during capture. If calibration residuals exceed specification, repeat the process from step 1.
Key Talking Points¶
- Calibration is not optional — it is the foundation of measurement accuracy
- Different working volumes require different calibration targets
- A good calibration captures the target at many orientations and distances
- Always verify calibration by measuring a known reference object
- Recalibrate after transport, temperature changes, or when accuracy seems degraded
Learning Objectives (Concept Check)¶
- Explain why scanner calibration is necessary and what parameters it determines
- Describe the correct procedure for performing a multi-orientation calibration
- Interpret a calibration report's reprojection error and residual accuracy values
- Identify when recalibration is needed
Last Updated: 2026-03-19
