Slide 002: Scanning Technique and Turntable Operation

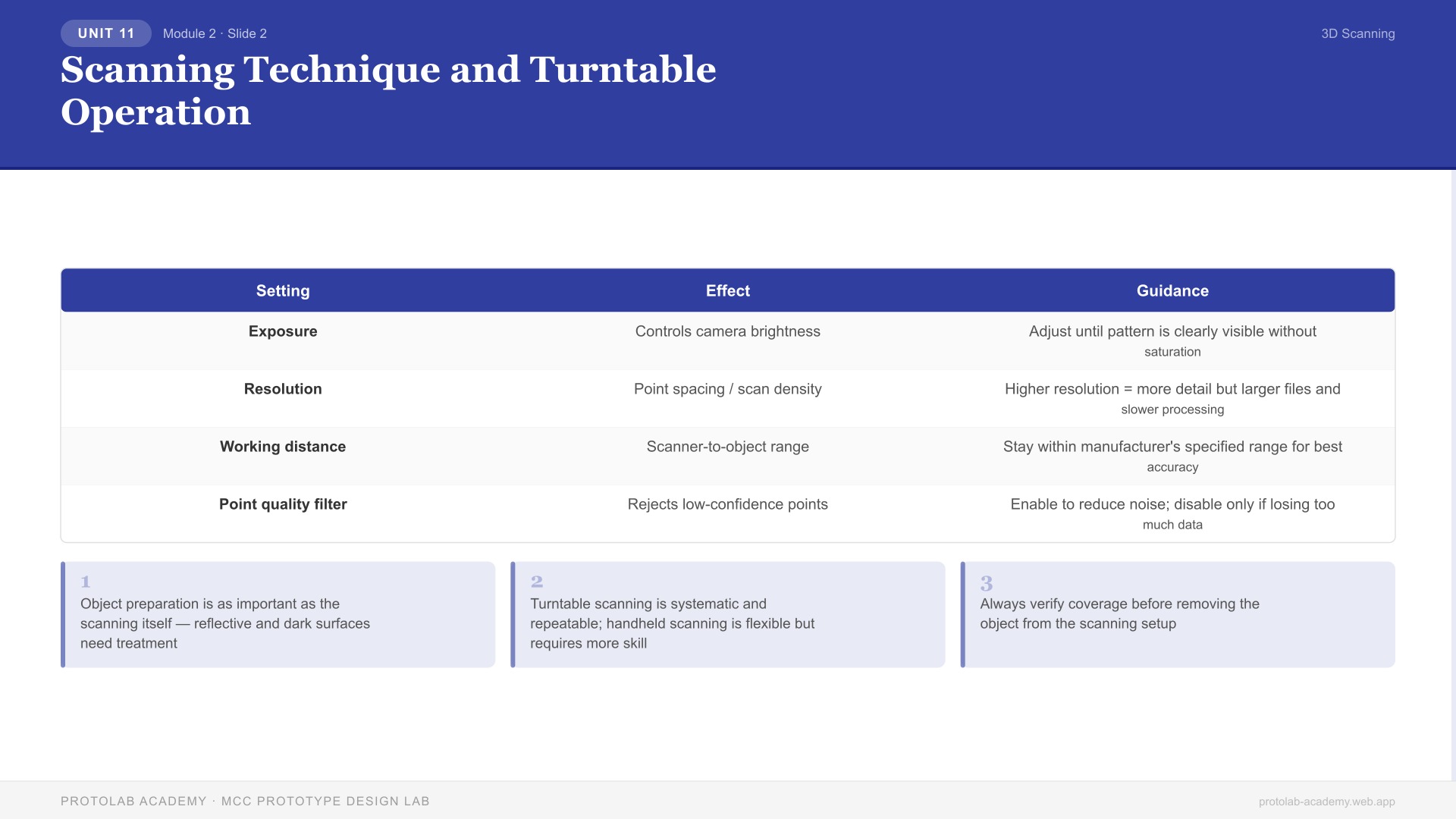

Slide Visual

Scanning Technique and Turntable Operation

Slide Overview

This slide teaches practical scanning technique — how to configure scanner settings, position objects, operate turntables, and execute a complete multi-angle scanning session. Students learn the workflow from object preparation through to a complete raw scan dataset ready for alignment.

Instruction Notes

Pre-Scan Object Preparation

Before scanning, assess the object for potential challenges:

  • Surface reflectance: Shiny, chrome, or mirror-finish surfaces require dulling treatment (scanning spray or powder). Apply a thin, even coat from 20-30 cm distance — the goal is a matte surface, not an opaque coating.
  • Color and contrast: Very dark (black) surfaces absorb projected light; very bright (white) surfaces may overexpose. Adjust scanner exposure accordingly, or apply scanning spray for extreme cases.
  • Transparency: Glass, clear acrylic, and translucent materials require opaque coating or alternative scanning methods.
  • Size vs. working volume: If the object exceeds the scanner's working volume, plan a multi-position scanning strategy with reference targets for alignment.

Scanner Configuration

Key settings to configure before scanning:

Setting Effect Guidance
Exposure Controls camera brightness Adjust until pattern is clearly visible without saturation
Resolution Point spacing / scan density Higher resolution = more detail but larger files and slower processing
Working distance Scanner-to-object range Stay within manufacturer's specified range for best accuracy
Point quality filter Rejects low-confidence points Enable to reduce noise; disable only if losing too much data

Turntable Scanning Workflow

Automated turntables rotate the object in controlled angular steps while the scanner captures from a fixed position:

  1. Center the object on the turntable — offset objects produce inconsistent working distances
  2. Set angular step: 15-30° per rotation step (12-24 scans per revolution). Smaller steps for complex geometry; larger steps for simple shapes
  3. First pass — equator scan: Scanner level with object center, capturing the main body
  4. Second pass — elevated angle: Tilt scanner 30-45° above horizontal to capture top surfaces
  5. Third pass (if needed): Invert object or tilt scanner below horizontal for bottom surfaces
  6. Verify coverage: Review the accumulated point cloud for gaps before removing the object

Handheld Scanning Technique

For objects too large for a turntable or requiring in-situ scanning:

  • Maintain consistent distance (within working range) and angle (60-90° to surface)
  • Move slowly — 5-10 cm/second maximum for most handheld scanners
  • Use overlapping, parallel passes like "mowing a lawn"
  • Watch the real-time preview — if tracking is lost, return to a previously scanned area to re-acquire
  • Reference targets on the object or surrounding fixture help maintain tracking on featureless surfaces

Common Scanning Mistakes

  • Starting to scan before verifying calibration
  • Forgetting to adjust exposure for the specific object surface
  • Insufficient angular steps (not enough overlap for alignment)
  • Moving the object between scan passes
  • Scanning in direct sunlight or under flickering fluorescent lights

Key Talking Points

  • Object preparation is as important as the scanning itself — reflective and dark surfaces need treatment
  • Turntable scanning is systematic and repeatable; handheld scanning is flexible but requires more skill
  • Always verify coverage before removing the object from the scanning setup
  • Multiple elevation angles are needed to capture top and bottom surfaces — a single equator pass leaves holes
  • Real-time preview is your quality control tool during scanning

Learning Objectives (Concept Check)

  • Describe the object preparation steps needed before scanning
  • Configure scanner exposure and resolution settings for different surface types
  • Execute a turntable scanning session with appropriate angular steps and elevation passes
  • Identify and correct common scanning mistakes during a session
