Slide 001: Glass Chemistry and Atomic Structure¶

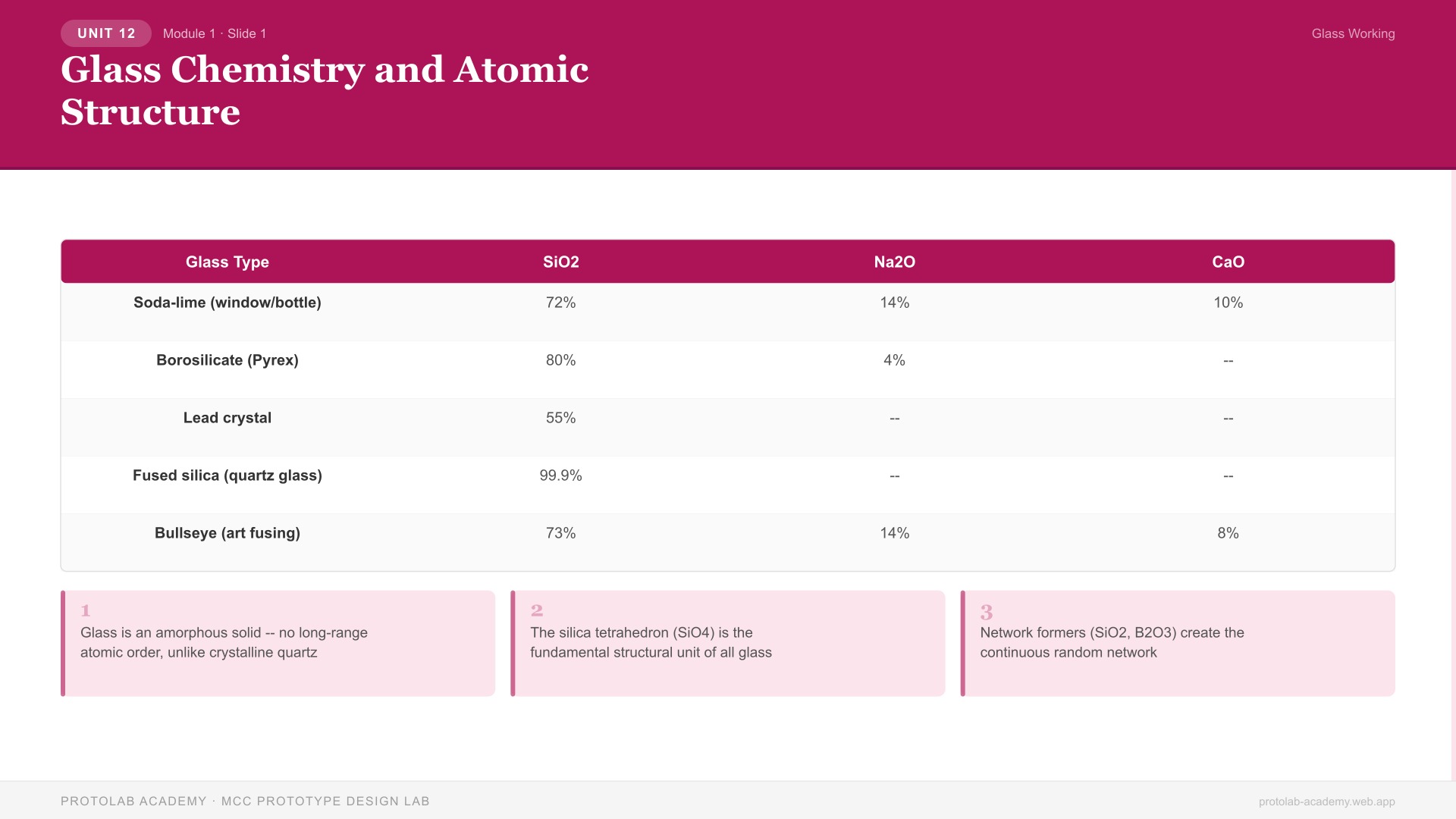

Slide Visual¶

Glass Chemistry and Atomic Structure

Slide Overview¶

This slide introduces the fundamental chemistry of glass, focusing on the silica tetrahedron network structure, network formers and modifiers, and how atomic arrangement determines macroscopic properties. Students learn why glass is classified as an amorphous solid rather than a crystalline one, and how compositional changes create the different glass families used in hot and cold glass work.

Instruction Notes¶

Glass is an amorphous solid, meaning its atoms lack the long-range periodic order found in crystalline materials like quartz. Despite sharing the same chemical formula (SiO2), glass and crystalline quartz have fundamentally different atomic arrangements, which accounts for their dramatically different physical properties. Quartz melts at 1713C (3115F); soda-lime glass softens at approximately 700C (1292F) -- the disordered network is far easier to disrupt.

The Silica Tetrahedron¶

The basic building block of all silicate glass is the silica tetrahedron: one silicon atom bonded to four oxygen atoms in a tetrahedral geometry. The Si-O bond length is approximately 1.62 angstroms, and the O-Si-O bond angle is 109.5 degrees. In crystalline quartz, these tetrahedra are arranged in a perfectly repeating lattice with a consistent Si-O-Si bridging angle of approximately 144 degrees. In glass, the tetrahedra connect in a random network -- the Si-O-Si bridging angle varies from 120 to 180 degrees, creating a disordered structure that lacks a defined melting point and instead softens gradually over a temperature range known as the glass transition range (Tg).

Network Formers, Modifiers, and Intermediates¶

Network formers are oxides that can form the continuous random network on their own. SiO2 is the primary network former in most commercial glasses. Boron trioxide (B2O3) is another network former, which is why borosilicate glass (Pyrex, Duran) has enhanced thermal properties -- the boron atoms create a tighter, more interconnected network with lower thermal expansion.

Network modifiers are oxides that break up the silica network by providing additional oxygen ions that do not bridge two silicon atoms. Sodium oxide (Na2O) is the most common modifier -- it disrupts Si-O-Si bridges, creating non-bridging oxygens (NBOs). Each NBO weakens the network locally. This disruption lowers the melting point (from 1713C for pure silica to approximately 1000C for soda-lime), lowers viscosity at working temperatures, but also increases the coefficient of thermal expansion (CTE) and decreases chemical durability.

Stabilizers (intermediate oxides) partially rebuild network integrity. Calcium oxide (CaO) is the primary stabilizer in soda-lime glass -- it prevents the glass from being water-soluble (without CaO, sodium silicate glass dissolves in water -- this is actually how water glass / sodium silicate solution is made). Alumina (Al2O3) acts as an intermediate, sometimes entering the network as a former, sometimes acting as a modifier, depending on concentration.

Common Glass Compositions¶

Glass Type	SiO2	Na2O	CaO	B2O3	Other	CTE (x10^-6/K)	Working Temp
Soda-lime (window/bottle)	72%	14%	10%	--	4% MgO, Al2O3	8.5-9.5	1000C (1832F)
Borosilicate (Pyrex)	80%	4%	--	13%	3% Al2O3	3.2-3.5	1260C (2300F)
Lead crystal	55%	--	--	--	30% PbO, 15% K2O	8.0-9.0	900C (1652F)
Fused silica (quartz glass)	99.9%	--	--	--	trace	0.55	1800C (3272F)
Bullseye (art fusing)	73%	14%	8%	--	5% misc	~9.0 (COE 90)	1000C (1832F)

Why This Matters for Students¶

Understanding this chemistry is essential because every property students will encounter -- thermal expansion, annealing behavior, hardness, optical clarity -- traces directly back to the atomic structure. When a student asks "why does soda-lime crack when quenched but borosilicate doesn't?" the answer lies in how many non-bridging oxygens exist in the network and how much the structure expands with heat. When they ask "why can't I fuse Bullseye glass to Spectrum glass?" the answer is CTE mismatch caused by different modifier ratios.

Demonstrate this concept with a physical analogy: a chain-link fence (crystalline) versus a tangled fishing net (amorphous). Both are made of the same material, but the random arrangement of the net makes it behave differently under stress.

Key Talking Points¶

Glass is an amorphous solid -- no long-range atomic order, unlike crystalline quartz
The silica tetrahedron (SiO4) is the fundamental structural unit of all glass
Network formers (SiO2, B2O3) create the continuous random network
Network modifiers (Na2O) break Si-O-Si bridges, lowering melting point but increasing thermal expansion
Stabilizers (CaO) restore partial network integrity and chemical durability
The ratio of formers to modifiers determines all downstream properties (CTE, hardness, working temperature)
Glass has no sharp melting point -- it softens gradually through a glass transition range

Learning Objectives (Concept Check)¶

[ ] Can the student explain why glass is classified as amorphous rather than crystalline?
[ ] Can the student identify the role of network formers vs. modifiers in glass chemistry?
[ ] Can the student connect atomic structure to macroscopic properties like thermal expansion?
[ ] Can the student identify at least three common glass types and their primary compositional differences?
[ ] Can the student predict how adding more Na2O would change a glass's properties?

Adaptations for Different Learning Styles¶

Visual Learners¶

Use color-coded 3D model of silica tetrahedron network: silicon atoms in blue, bridging oxygens in red, non-bridging oxygens in yellow
Side-by-side comparison diagram: crystalline quartz lattice (ordered grid) vs. glass network (random web)
Animated transition showing how adding Na2O breaks Si-O-Si bridges and creates NBOs
Pie charts comparing compositions of different glass families

Kinesthetic Learners¶

Build physical model using toothpicks (Si-O bonds) and marshmallows (atoms) -- crystalline first, then break some bonds to show amorphous structure
Handle actual samples of soda-lime, borosilicate, and fused silica glass -- feel the weight differences (density varies with composition)
Thermal demo: heat soda-lime and borosilicate rods side by side in a torch flame; observe how soda-lime softens much faster

Auditory Learners¶

Verbal analogy: "Imagine a crowded dance floor. Crystalline = everyone in formation, amorphous = everyone dancing randomly. Both are dancing, but the organized group moves predictably."
Discussion: tap glass samples on a hard surface -- different compositions produce different tones (lead crystal rings; soda-lime thuds)
Think-pair-share: "If you wanted to make glass easier to melt, what would you add? Why?"

Reading/Writing Learners¶

Provide composition table handout with CTE values and working temperatures for each glass type
Written exercise: "Given these two glass compositions, predict which has higher CTE and explain why"
Glossary handout: network former, modifier, stabilizer, NBO, CTE, Tg, annealing point, strain point

Standards and References¶

ASTM C162 - Standard Terminology of Glass and Glass Products: - Defines amorphous solid, glass transition temperature, annealing point, strain point, and other essential terms - Provides standardized nomenclature for glass compositions and properties

ASTM E228 - Standard Test Method for Linear Thermal Expansion: - Methodology for measuring CTE values referenced in composition tables - Students should understand that CTE values they use come from standardized testing

OSHA 29 CFR 1910.1053 - Respirable Crystalline Silica: - While this slide focuses on chemistry rather than safety, the connection between silica structure and silica dust hazard should be introduced here - Crystalline silica (quartz dust from cutting/grinding) is regulated; amorphous silica (glass dust) is less hazardous but still requires controls

Session Details¶

Time Allocation: 30 minutes (20 min presentation + 10 min activity/discussion)
Breakpoints for Discussion:
After tetrahedron explanation: "Can you draw a tetrahedron? How many faces does it have?" (4 -- reinforces geometry connection)
After modifier section: "Why would a glassblower WANT to add Na2O even though it weakens the glass?" (Answer: makes it workable at lower temperatures)
After composition table: "Which glass would you choose for a lab beaker? Why?" (Answer: borosilicate -- low CTE, resists thermal shock)
After CTE discussion: "What happens if you fuse glass A (CTE 90) with glass B (CTE 96)?" (Answer: stress, cracking, delayed failure)

Discussion Prompts¶

Material Selection: "You're designing a glass piece that will sit on a windowsill in Arizona (hot sun, cold nights, 60F daily temperature swings). Which glass type do you choose and why?"
Composition Engineering: "Ancient Roman glass often has a greenish tint. What impurity do you think causes this, and why didn't the Romans remove it?" (Answer: iron oxide from sand; they lacked purification technology)
Real-World Connection: "Your phone screen is made of aluminosilicate glass (Gorilla Glass). What role does alumina play, and why is it better than soda-lime for this application?"
Critical Thinking: "If pure silica glass has the best properties (lowest CTE, highest working temp, best chemical resistance), why isn't all glass made from pure silica?"

Instructor Notes¶

Begin with physical glass samples if available -- let students hold and compare soda-lime (window glass), borosilicate (lab beaker), and lead crystal before explaining why they feel different
The composition table is a reference tool, not a memorization target -- students should know the general families and trends, not exact percentages
Common student confusion: "glass transition" vs. "melting point" -- emphasize that glass does NOT melt at a specific temperature; it gradually softens across a range. This is fundamentally different from ice melting at 0C
Connect this slide to Module 1 Slide 002 (CTE and annealing): the chemistry here explains the physics there
Safety note: if handling glass samples, remind students that even "cold" glass edges can cut. Demonstrate safe handling from day one

Common Misconceptions Corrected¶

Myth: "Glass is a liquid that flows slowly over centuries." Reality: This is a persistent myth based on old cathedral windows being thicker at the bottom. The thickness variation is from the manufacturing process (crown glass), not flow. Glass at room temperature has a viscosity of approximately 10^40 Pa*s -- it would take longer than the age of the universe to observe measurable flow.
Myth: "All glass is the same -- just SiO2." Reality: Most glass contains 5-30% modifiers and stabilizers. Only specialty fused silica is nearly pure SiO2, and it requires extremely high temperatures (1800C+) to work.
Myth: "Tempered glass is a different composition." Reality: Tempered glass is the same composition as regular glass -- the difference is a thermal or chemical treatment that creates compressive surface stress, not a different chemistry.

Accommodations for Neurodiversity¶

ADHD Support¶

Provide printed composition table as a reference card students can keep at their bench
Use physical glass samples as tactile anchors during lecture -- pass them around during explanation
Break the chemistry content into two 10-minute segments with a hands-on activity between them
Key takeaway card: "Glass = SiO2 network + modifiers. More modifiers = easier to work, weaker to thermal shock."

Autism Spectrum Support¶

Provide detailed slide agenda at start: "This slide covers: 1) What glass is made of, 2) How composition affects properties, 3) Five glass types and their uses"
Use consistent terminology throughout -- always say "network modifier," never switch to "flux" or "additive" without defining the synonym
The composition table provides concrete, precise data which many students on the spectrum find more accessible than verbal analogies

Dyslexia Support¶

Use sans-serif font, 16pt minimum on all slide text
Color-code the composition table: formers in blue, modifiers in orange, stabilizers in green
Provide audio recording of the instruction notes for students who learn better by listening
Key terms bolded and defined in a separate glossary handout

Sensory Processing Support¶

If using a torch for the thermal demo, warn students in advance about the sound (hissing gas) and heat
Keep room lighting consistent -- avoid dimming/brightening for slides if it causes discomfort
Glass tapping activity (auditory demo) should be optional for sound-sensitive students

Last Updated: 2026-03-19 Content Review: Q1 2026
