Slide 001: Glass Scoring and Breaking Fundamentals¶

Slide Visual¶

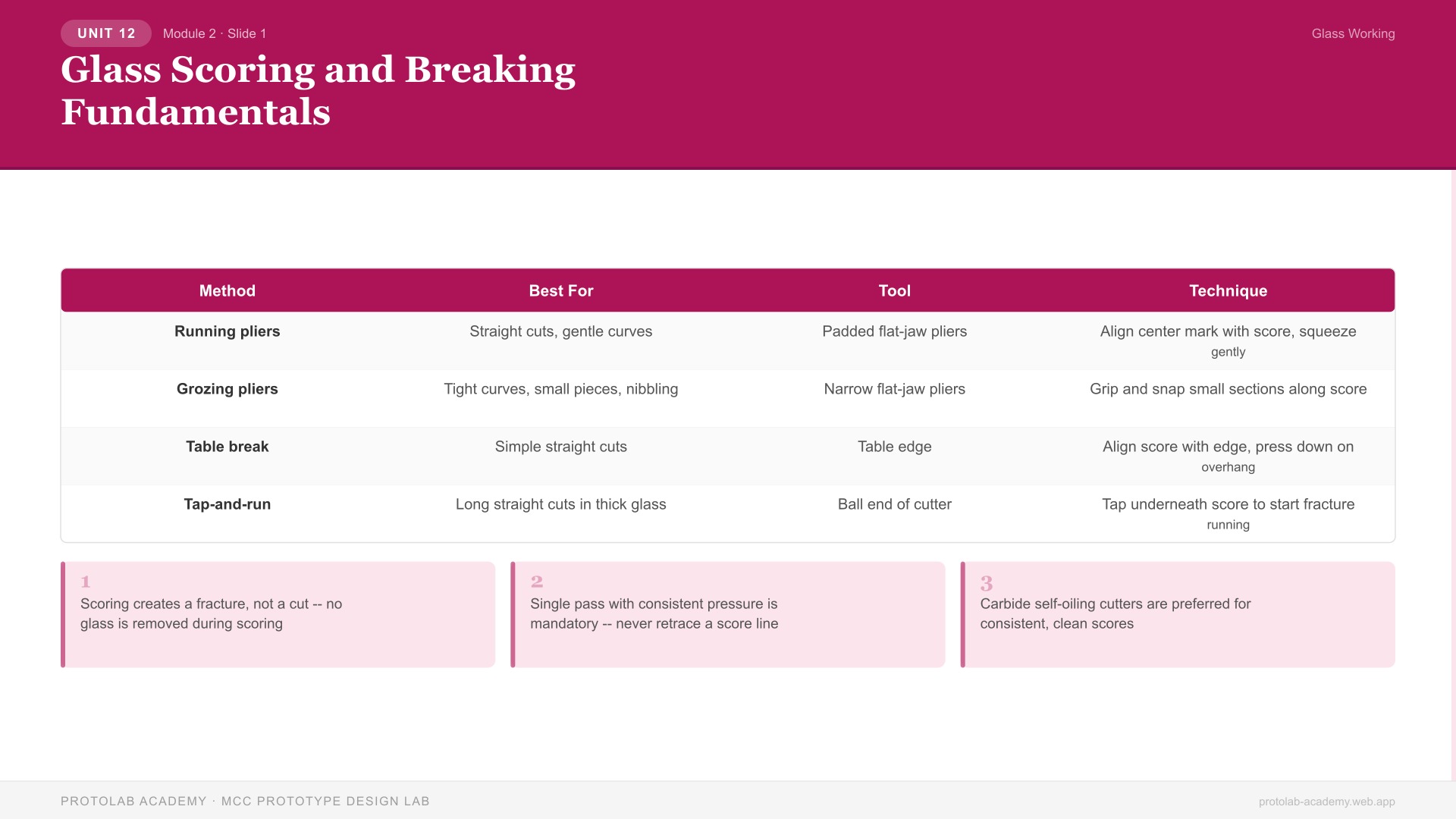

Glass Scoring and Breaking Fundamentals

Slide Overview¶

This slide covers the mechanics of glass scoring and breaking, including cutter types, proper technique for straight and curved scores, breaking methods, and common mistakes that lead to bad breaks. Students learn that scoring is a controlled fracture initiation, not a cutting operation, and that the physics of fracture propagation determines the quality of every cut.

Instruction Notes¶

Glass cutting is a misnomer -- no material is removed during scoring. A glass cutter creates a shallow surface fracture approximately 0.1mm deep that concentrates stress along the intended break line. When bending force is applied opposite the score, the fracture propagates through the full thickness of the glass, producing a clean break. Understanding this mechanism prevents the most common student error: pressing too hard or making multiple passes over the same score.

The Physics of Score-and-Snap¶

The science behind scoring is fracture mechanics. The score creates a stress concentrator -- a point where applied force is magnified by the geometry of the crack tip. The stress intensity at a sharp crack tip can be 100-1000x the applied stress, which is why a properly scored piece breaks cleanly along the score with minimal applied force (often just the weight of running pliers). The fracture propagates at approximately 1500 m/s through the glass -- effectively instantaneous. The quality of the break depends entirely on the quality of the score: a clean, consistent score with a sharp crack tip produces a clean break; a crushed, chipped, or inconsistent score produces a ragged, unpredictable break.

Glass Cutter Types¶

There are two primary glass cutter types relevant to educational settings:

Steel wheel cutters are inexpensive ($3-8) and suitable for beginners learning basic straight cuts. The wheel is hardened steel, approximately 5mm diameter, ground to a sharp edge. Steel wheels dull relatively quickly (200-400 linear feet of scoring before replacement) and must be replaced or resharpened. They require more pressure than carbide wheels, increasing the risk of over-scoring.

Carbide wheel cutters last significantly longer (2000-5000 linear feet) and produce more consistent scores. Self-oiling cutters with carbide wheels are the recommended standard for educational settings -- the oil reservoir in the handle feeds cutting oil to the wheel through a wick, reducing friction, extending wheel life, and producing a cleaner score line. The oil is typically a light cutting oil or kerosene. Standard educational recommendation: Toyo TC-17 or equivalent self-oiling carbide cutter ($15-25).

Specialty cutters: pistol-grip cutters reduce hand fatigue for extended sessions. Strip cutters clamp to the glass edge and maintain parallel alignment for consistent strip widths. Circle cutters pivot around a suction cup for circular cuts.

Scoring Technique¶

Proper scoring technique requires three elements: consistent pressure, constant speed, and a single pass.

The cutter should be held at approximately 90 degrees to the glass surface (some cutters are designed for a slight 5-10 degree tilt toward the direction of travel)
Pressure should be firm enough to hear a faint scratching sound -- if the score is silent, pressure is too light (fracture not initiating); if it produces white chips or powder, pressure is too heavy (crushing rather than fracturing)
Score speed should be approximately 12-18 inches per second for straight cuts -- fast enough to maintain consistency, slow enough for control
The score must be made in a single continuous pass from one edge of the glass to the other. Never stop mid-score and never retrace a score line
Retracing crushes the glass at the fracture edges, creates chips, and produces an unpredictable break. This is the single most common beginner mistake.

For straight cuts, a straightedge guide is essential for beginners. The guide should be positioned accounting for the offset between the cutter wheel and the edge of the cutter head (typically 2-3mm). For curved cuts, the technique changes: the cutter follows a template or pattern line, and the curve must be gradual enough that the fracture can follow. Tight inside curves cannot be scored in a single line -- they require a series of scored segments that are broken away progressively ("nibbling"). This technique takes practice and is a key skill for stained glass work.

Breaking Methods¶

Method	Best For	Tool	Technique
Running pliers	Straight cuts, gentle curves	Padded flat-jaw pliers	Align center mark with score, squeeze gently
Grozing pliers	Tight curves, small pieces, nibbling	Narrow flat-jaw pliers	Grip and snap small sections along score
Table break	Simple straight cuts	Table edge	Align score with edge, press down on overhang
Tap-and-run	Long straight cuts in thick glass	Ball end of cutter	Tap underneath score to start fracture running

Running pliers are the standard tool for straight breaks. They apply even bending force on both sides of the score line, opening the fracture cleanly. Position the pliers so the center alignment mark is directly over the score, with the curved jaw on top (toward the scored surface). Squeeze gently -- if the score is good, minimal force is needed. If the break doesn't start easily, the score may be too light; re-scoring is NOT an option. The piece must be discarded or a new score made at least 1/4 inch from the first.

Grozing pliers are used to nibble away excess glass along curved scores. Small bites (1/8 inch or less) with grozing pliers remove glass progressively along the score line. Attempting to remove too much at once causes uncontrolled breaks.

Key Talking Points¶

Scoring creates a fracture, not a cut -- no glass is removed during scoring
Single pass with consistent pressure is mandatory -- never retrace a score line
Carbide self-oiling cutters are preferred for consistent, clean scores
Score must run edge to edge -- stopping mid-glass produces an uncontrolled break
Inside curves require progressive nibbling, not a single curved score
Running pliers for straight breaks, grozing pliers for curves and small pieces
Common failures: too much pressure (chips), too little pressure (incomplete fracture), multiple passes (crushed edges)
A bad score cannot be fixed -- start over with a new score at least 1/4 inch away

Learning Objectives (Concept Check)¶

[ ] Can the student explain why scoring is a fracture initiation, not a cut?
[ ] Can the student demonstrate correct cutter angle, pressure, and speed on a practice piece?
[ ] Can the student select the appropriate breaking method for straight vs. curved scores?
[ ] Can the student identify a good score (faint line, consistent sound) vs. a bad score (white powder, chips)?
[ ] Can the student execute a progressive nibbling sequence for an inside curve?

Adaptations for Different Learning Styles¶

Visual Learners¶

Cross-section diagram showing the 0.1mm score fracture and how it propagates through the glass thickness under bending force
Side-by-side photographs: good score (clean, faint line) vs. bad score (white, chipped, crushed)
Video of fracture propagation in slow motion (if available -- glass fracture videos are widely available online)
Step-by-step photo sequence of the nibbling technique for inside curves

Kinesthetic Learners¶

Immediate hands-on practice: provide each student with scrap glass and a cutter within the first 10 minutes of this lesson
Pressure calibration exercise: students make 5 scores at different pressures and compare results, developing muscle memory for the correct pressure
Running pliers practice: students break their scored pieces and evaluate break quality against their score quality
Curved scoring exercise: provide cardboard templates of increasing curve complexity

Auditory Learners¶

Scoring by sound: demonstrate the difference between a correctly-pressured score (light scratching hiss), an over-pressured score (crunching/grinding), and an under-pressured score (near-silent)
Talk through the breaking motion: "I'm positioning the running pliers, center mark on the score, curved jaw up, gentle squeeze... listen for the crack propagating..."
Discussion: "Why can't you re-score a line? What physically changes about the glass at the score?"

Reading/Writing Learners¶

Provide a scoring troubleshooting chart: symptom (white powder, no break, jagged break) -> cause -> correction
Written exercise: "Describe the scoring and breaking process in your own words, including what happens at the atomic level"
Reference card: cutter types, recommended pressure, breaking methods, and when to use each

Standards and References¶

OSHA 29 CFR 1910.133 - Eye and Face Protection: - Safety glasses required during all scoring and breaking operations -- glass chips and splinters are projected during breaking - Side shields required on safety glasses when breaking glass

ANSI Z535 - Safety Signs and Colors: - Glass cutting areas should be marked with appropriate hazard signage - Sharp object hazard signs at all glass cutting stations

OSHA 29 CFR 1910.138 - Hand Protection: - Cut-resistant gloves (ANSI A4+) recommended for all glass handling - During scoring, some practitioners prefer bare-hand contact for tactile feedback -- if so, gloves must be donned immediately after scoring, before breaking

Session Details¶

Time Allocation: 35 minutes (15 min demonstration + 20 min hands-on practice)
Breakpoints for Discussion:
After fracture mechanics explanation: "Why does a scored piece break with so little force, when unscored glass is very strong?" (Answer: stress concentration at the crack tip amplifies the applied force 100-1000x)
After cutter types: "Why would you spend $25 on a carbide cutter when a $5 steel cutter does the same job?" (Answer: consistency, longevity, less pressure needed = fewer bad scores)
After scoring technique: "What do you do if your score looks bad?" (Answer: start over -- a bad score produces a bad break. NEVER re-score.)
After breaking methods: "When would you choose grozing pliers over running pliers?" (Answer: tight curves, small pieces, nibbling sequence)

Discussion Prompts¶

Failure Analysis: "Your score looks perfect but the glass breaks off-line. What are three possible causes?" (Score too light to initiate fracture; glass has internal stress from manufacturing; running pliers not centered on score)
Material Science Connection: "How does glass thickness affect scoring and breaking? Would you score a 2mm sheet the same way as a 6mm sheet?" (Thicker glass needs slightly more scoring pressure and more breaking force; running pliers may not work on very thick glass -- tap-and-run method needed)
Process Design: "You need to cut 50 identical pieces for a stained glass project. How do you ensure consistency?" (Template, straightedge guide, consistent setup, quality check on first 3 pieces before continuing)
Safety Integration: "What PPE do you need for scoring and breaking, and why?" (Safety glasses with side shields for chips; cut-resistant gloves for handling; closed-toe shoes for dropped glass)

Instructor Notes¶

Have at least 2x as much scrap glass as you think you need for practice -- students will consume glass rapidly during the learning phase
Start students on 3mm clear float glass -- it scores and breaks cleanly, providing clear feedback on technique
The most important teaching moment is the FIRST bad score: show the student what went wrong, have them compare their bad score to a good one, then have them try again immediately
Do not let students practice unsupervised until they have demonstrated safe handling and correct PPE use
Clean up protocol: sweep and wet-mop after every practice session. Glass splinters on the floor are an injury waiting to happen. Provide a dedicated glass scrap bin (not regular trash)
SAFETY CALLOUT: Broken glass edges are razor-sharp. Demonstrate safe handling: grip flat surfaces, never slide fingers along edges, use a dustpan and brush (never bare hands) for small fragments

Common Misconceptions Corrected¶

Myth: "Press harder for a better score." Reality: Excessive pressure crushes the glass rather than initiating a clean fracture. The ideal score uses moderate, consistent pressure -- just enough to hear a light scratching sound.
Myth: "Go over the score again to make it deeper." Reality: Re-scoring destroys the clean fracture edges created by the first pass. The second pass crushes and chips the already-fractured surface, producing a ragged break.
Myth: "Glass cutting is like wood cutting -- the cutter removes material." Reality: No material is removed. The cutter initiates a surface fracture; breaking propagates that fracture through the full thickness.
Myth: "You can score any shape in a single pass." Reality: Tight inside curves (radius less than about 1 inch) cannot be scored and broken in one piece. They require progressive nibbling -- multiple score-and-break cycles removing small sections.

Accommodations for Neurodiversity¶

ADHD Support¶

Hands-on practice within the first 10 minutes -- long demonstrations before any practice loses engagement
Provide pre-scored pieces for breaking practice so students can experience success quickly before mastering the full scoring technique
Break the session into 3 segments: demo (5 min), straight cuts practice (10 min), curves practice (10 min) with brief transitions between

Autism Spectrum Support¶

Provide explicit, numbered steps: "Step 1: Position straightedge. Step 2: Place cutter at far edge. Step 3: Pull toward you in one motion. Step 4: Remove straightedge. Step 5: Position running pliers."
Scoring pressure is a common anxiety point for students who prefer precision -- provide a practice piece with a marked "pressure gauge" (three test scores labeled "too light," "correct," "too heavy") so they can calibrate
The sound feedback (scratching = correct) provides a consistent, reliable sensory cue

Dyslexia Support¶

Photo-based instruction cards at each cutting station rather than text-heavy guides
Color-coded tools: mark running pliers with green tape, grozing pliers with orange tape, for easy identification
Scoring troubleshooting chart uses icons rather than text where possible

Sensory Processing Support¶

Glass breaking produces a sharp snapping sound -- warn students before each demonstration break
The scratching sound of scoring may be uncomfortable for sound-sensitive students; offer earplugs for practice sessions
Glass splinters on skin can be alarming -- ensure students know this is normal and that tweezers and first aid are available

Last Updated: 2026-03-19 Content Review: Q1 2026
