Slide 002: Glass Grinding and Polishing¶

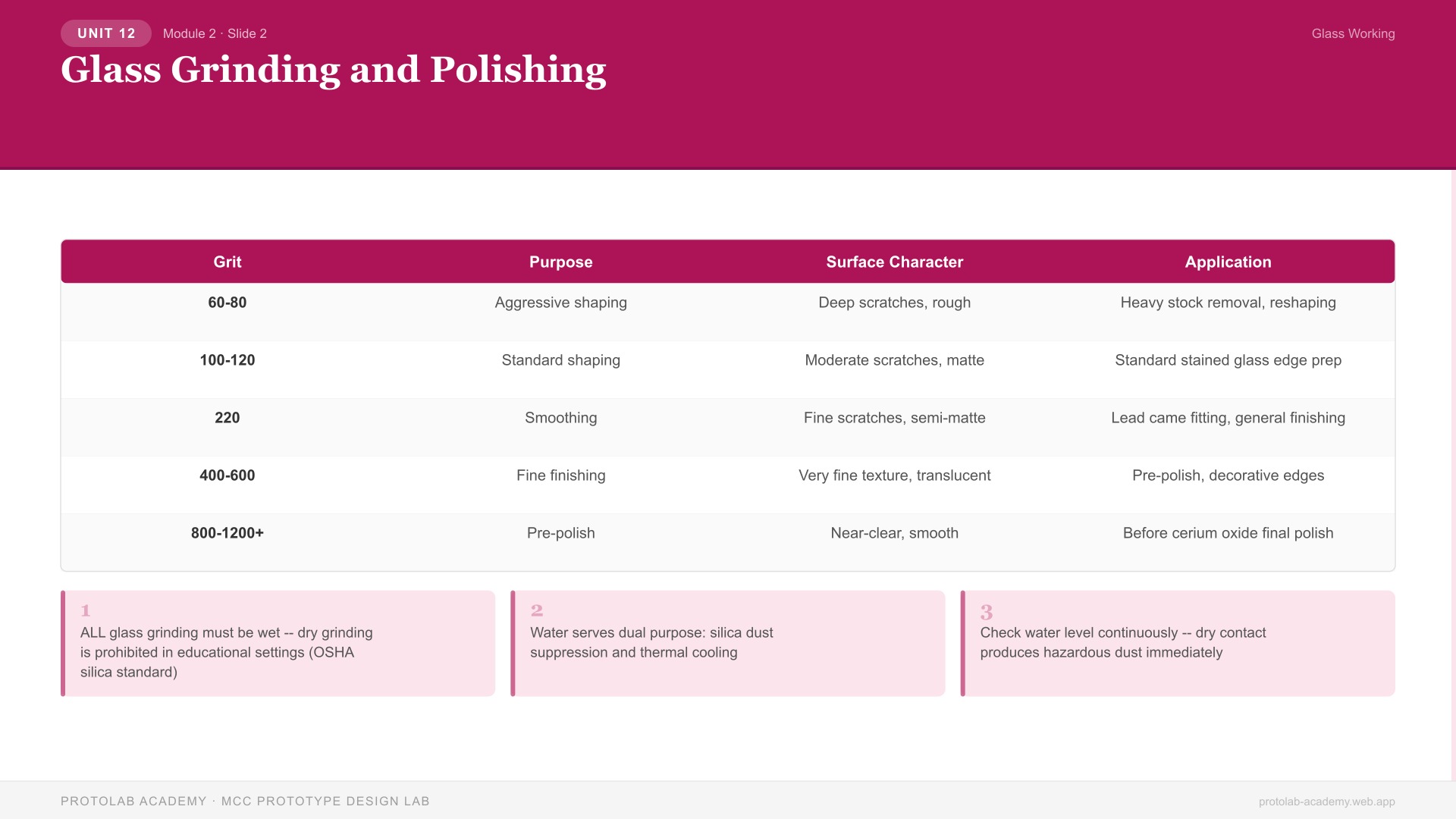

Slide Visual¶

Glass Grinding and Polishing

Slide Overview¶

This slide covers wet grinding and polishing techniques for glass edges, including equipment operation, grit progression, edge profiles, and the critical role of water in dust suppression and thermal management. Students learn to produce finished edges that are safe to handle and suitable for copper foil adhesion or lead came fitting.

Instruction Notes¶

After scoring and breaking, glass edges are sharp, irregular, and unsuitable for assembly. Grinding shapes the edge to match the pattern, removes sharp protrusions, and creates a surface texture that copper foil adhesive can grip. Polishing (optional for structural work, essential for decorative) brings the edge to a smooth, even finish. Both operations must be performed wet -- this is a non-negotiable safety requirement.

Equipment: The Glass Grinder¶

The standard equipment for educational glass grinding is the glass grinder -- a small tabletop unit (such as the Inland Wizard, Glastar, or Diamond Tech) with a diamond-coated cylindrical bit and an integral water reservoir. The diamond bit (typically 3/4" or 1" diameter) rotates at approximately 3500 RPM in a water bath. The student feeds the glass edge against the spinning bit while the water sponge or drip system keeps the contact point wet.

Water serves two non-negotiable functions: 1. Silica dust suppression: prevents the airborne particles that cause silicosis. Even a few seconds of dry contact produces enough respirable silica dust to be hazardous -- OSHA PEL is 50 ug/m3, which is invisibly small 2. Thermal cooling: prevents localized thermal stress that causes edge cracking or chipping. Diamond grinding generates significant friction heat; without water, the glass edge temperature can spike above 200C in seconds, causing micro-cracks that weaken the edge

The water reservoir must be checked and refilled regularly during grinding sessions. If the water level drops below the bit contact point, grinding must stop immediately. Dry grinding of glass in an educational setting is prohibited per OSHA 29 CFR 1910.1053 crystalline silica standards. Instructors should implement a visual check protocol: water visible at the contact point at all times.

Alternative Equipment¶

Wet belt grinder/sander: uses abrasive belts (silicon carbide or diamond) with water feed. Provides flat grinding surfaces suitable for straight edges and bevels. More aggressive material removal than the rotary grinder. Standard in production stained glass studios.

Diamond hand pads: flexible diamond-coated pads (available in grits from 60 to 3500) used with water for hand finishing. Essential for areas that cannot reach the grinder -- inside curves, notches, and complex shapes. Students should learn both machine and hand grinding.

Bench grinder with diamond wheel: more aggressive than the glass grinder, suitable for heavier stock removal. Requires continuous water drip and splash guard. Not typically used in introductory courses.

Grit Progression and Edge Quality¶

Grit progression determines edge quality. For most stained glass work, a single diamond bit (approximately 100-grit equivalent) is sufficient -- the goal is edge shaping, not optical polish. For decorative work or pieces where the edge will be visible, a progression is used:

Grit	Purpose	Surface Character	Application
60-80	Aggressive shaping	Deep scratches, rough	Heavy stock removal, reshaping
100-120	Standard shaping	Moderate scratches, matte	Standard stained glass edge prep
220	Smoothing	Fine scratches, semi-matte	Lead came fitting, general finishing
400-600	Fine finishing	Very fine texture, translucent	Pre-polish, decorative edges
800-1200+	Pre-polish	Near-clear, smooth	Before cerium oxide final polish

Each grit stage removes the scratch pattern left by the previous stage. Skipping grits leaves visible scratches that cannot be removed by the finer stage alone -- each stage can only remove scratches approximately half its own grit size. Jumping from 100 to 600 grit wastes time and produces poor results.

Edge Profiles for Assembly¶

Edge profiles matter for assembly. For copper foil work, a slightly rough 100-grit edge is actually preferred -- the micro-texture gives the adhesive more surface area to grip. A polished edge causes foil to peel. For lead came work, edges should be smoother (220+) to fit cleanly into the came channels without snagging. For decorative exposed edges, polishing to 600+ grit or fire polishing (Module 4) may be required.

Grinding Technique¶

Grinding pressure is a critical technique element. Light, consistent pressure produces even edges. Excessive pressure causes three problems: 1. Accelerated bit wear: diamond coating is abraded faster, increasing consumable cost 2. Edge chipping: mechanical overload fractures the glass edge rather than grinding it smoothly 3. Heat buildup: overwhelms the water cooling, causing thermal micro-cracks

Students should let the diamond bit do the work -- the glass should move slowly and steadily against the bit, not be forced. A common teaching cue: "If you're pushing hard, you're pushing wrong."

The glass should be held flat on the grinder platform and moved in a smooth, sweeping motion. Do not hold the glass at an angle (unless intentionally creating a bevel). Keep fingers at least 1 inch from the grinding bit at all times -- the diamond surface will grind fingernails and skin as readily as glass.

Key Talking Points¶

ALL glass grinding must be wet -- dry grinding is prohibited in educational settings (OSHA silica standard)
Water serves dual purpose: silica dust suppression and thermal cooling
Check water level continuously -- dry contact produces hazardous dust immediately
Standard diamond bit (100 grit) is sufficient for most stained glass edge preparation
Grit progression for decorative work: 80-120 -> 220 -> 400-600 -> 800+
Never skip grits -- each stage removes only the scratches of the previous stage
Light pressure produces better results -- let the diamond do the cutting
Rough edges (100 grit) are preferred for copper foil adhesion; smoother for lead came
Keep fingers at least 1 inch from the grinding bit at all times

Learning Objectives (Concept Check)¶

[ ] Can the student explain why wet grinding is mandatory and what hazards dry grinding creates?
[ ] Can the student select the appropriate grit and edge finish for the intended assembly method?
[ ] Can the student demonstrate proper grinding pressure and technique on the glass grinder?
[ ] Can the student maintain correct water levels and recognize when to stop and refill?
[ ] Can the student describe the grit progression sequence and explain why skipping grits is ineffective?

Adaptations for Different Learning Styles¶

Visual Learners¶

Side-by-side photos of edges at each grit level: 80, 120, 220, 400, 600 -- showing progressive smoothing
Cross-section diagram showing edge profile differences for copper foil vs. lead came applications
Video of correct grinding technique: slow sweeping motion, light pressure, constant water contact
Magnified photos (10x) showing the difference between a chipped edge (too much pressure) and a smooth edge (correct pressure)

Kinesthetic Learners¶

Immediate hands-on: each student grinds a practice piece within the first 5 minutes of instruction
Pressure calibration: students grind three edges at light, medium, and heavy pressure, then compare results under magnification
Tactile check: students run a fingertip (carefully) along ground edges at different grits to feel the difference
Water level exercise: students practice checking and refilling the reservoir as part of their setup routine

Auditory Learners¶

Sound of correct grinding: a smooth, consistent hiss. Sound of over-pressure: grinding/crunching noise. Sound of dry bit: high-pitched screech (STOP immediately)
Verbal cue during demonstration: "Hear that smooth sound? That's correct pressure. Now listen..." (increase pressure) "...that crunching means I'm pushing too hard."
Discussion: "Why is the 100-grit edge better for copper foil than a polished edge?" (Answer: micro-texture provides grip for adhesive)

Reading/Writing Learners¶

Grinding parameter reference card at each grinder station: grit, pressure, speed, water check interval
Written exercise: "Create a grinding plan for a decorative fused glass piece where the edges will be visible. List grits in order with purpose of each."
Troubleshooting chart: symptom (chipped edge, uneven grinding, glass cracking) -> probable cause -> correction

Standards and References¶

OSHA 29 CFR 1910.1053 - Respirable Crystalline Silica: - All glass grinding operations fall under this standard - Wet methods are the primary engineering control for silica dust suppression - Exposure monitoring may be required if dry grinding is ever performed (it should not be in educational settings) - PEL: 50 ug/m3 as 8-hour TWA

OSHA 29 CFR 1910.138 - Hand Protection: - Cut-resistant gloves recommended for handling glass before and after grinding - During grinding, some practitioners use thin cut-resistant gloves; others prefer bare hands for control -- either is acceptable if proper technique (fingers 1"+ from bit) is maintained

ANSI B7.1 - Safety Requirements for the Use, Care, and Protection of Abrasive Wheels: - Applicable to wet belt grinders and bench grinders used in glass work - Specifies guard requirements, speed ratings, and operating procedures

NIOSH Hazard Alert - Worker Exposure to Silica During Countertop Manufacturing: - While focused on stone, the wet grinding controls and silica exposure data are directly applicable to glass grinding operations

Session Details¶

Time Allocation: 30 minutes (10 min demonstration + 20 min supervised practice)
Breakpoints for Discussion:
After equipment overview: "What are the two things that happen if the water runs out?" (Answer: silica dust exposure and thermal cracking of the edge)
After grit progression: "You're making a stained glass panel with copper foil. What grit do you stop at? Why?" (Answer: 100 grit -- rough texture helps foil adhesion)
After technique demo: "What does it sound like when you're pressing too hard?" (Answer: crunching/grinding noise instead of smooth hiss)
After practice begins: circulate and check water levels, pressure, and finger positioning on every student within the first 3 minutes

Discussion Prompts¶

Process Efficiency: "You need to grind 200 pieces for a large stained glass window. How do you organize the work for maximum efficiency and minimum bit wear?"
Quality vs. Speed: "A student's edges are functional but not perfectly smooth. The piece will be copper foiled and the edges won't be visible. Does it matter? Why or why not?"
Equipment Selection: "You're setting up a new glass studio. You can afford either a glass grinder or a wet belt sander, but not both. Which do you buy and why?"
Safety Scenario: "You notice the water in your grinder is running low but you only have one more piece to grind. What do you do?" (Answer: STOP. Refill water. Then finish. No exceptions.)

Instructor Notes¶

Check and refill all grinder water reservoirs before class begins -- students should see a full reservoir as the baseline standard
Replace diamond bits before they become ineffective -- a dull bit forces students to use excessive pressure, creating bad habits and safety risks
First 3 minutes of supervised practice are critical: check every student's water level, pressure, and finger position. Correct immediately. Bad habits formed in the first 3 minutes persist
Common student frustration: curved pieces are harder to grind than straight pieces. Teach the "rotating sweep" motion for curves early
Provide magnifying loupes or a USB microscope for students to examine their edge quality -- seeing the difference between grit levels at 10x magnification is more convincing than any lecture
SAFETY CALLOUT: If any student is observed grinding without adequate water, stop the entire class for a safety reminder. This is a zero-tolerance protocol.

Common Misconceptions Corrected¶

Myth: "A little dry grinding is fine -- the dust isn't that bad." Reality: Respirable silica particles are invisible. A few seconds of dry grinding can produce airborne concentrations exceeding OSHA PEL. Wet grinding is non-negotiable.
Myth: "Pressing harder makes grinding faster." Reality: Excessive pressure causes chipping, bit wear, and heat buildup. Light, consistent pressure with a sharp bit is faster than heavy pressure with a damaged edge.
Myth: "I can skip from 100 grit to 600 grit to save time." Reality: The 600-grit stage cannot remove 100-grit scratches. Each grit removes only the scratch pattern of the previous grit. Skipping grits wastes time and produces poor results.
Myth: "The grinder water just keeps the glass cool." Reality: Cooling is important, but dust suppression is the primary safety function. Silicosis is irreversible; a thermal crack is just a broken piece of glass.

Accommodations for Neurodiversity¶

ADHD Support¶

Hands-on practice within 10 minutes of starting the lesson -- grinding is inherently engaging and tactile
Set a timer visible at each station: "Check water every 5 minutes" -- removes the need to remember
Provide a variety of scrap glass shapes to grind -- straight edges, curves, notches -- to maintain novelty

Autism Spectrum Support¶

Grinding follows a clear, repeatable procedure: position glass, check water, grind with light pressure, check result, repeat
Provide explicit measurements: "Light pressure means your hand moves the glass at about 1 inch per second with no visible deflection"
The sound feedback system (smooth hiss = correct, crunching = too hard) provides consistent, rule-based sensory guidance

Dyslexia Support¶

Grit progression chart uses color coding: red (60-80), orange (100-120), yellow (220), green (400-600), blue (800+)
Photo-based reference cards at each station rather than text instructions
Edge quality examples mounted on a display board, labeled with application (copper foil, lead came, decorative)

Sensory Processing Support¶

The grinder produces a consistent ~65dB hum plus water splashing sounds -- offer earplugs for noise-sensitive students
Water splash from the grinder may be uncomfortable for some students -- a splash guard and apron help
The vibration from the grinding bit transmitted through the glass can be unpleasant -- thin foam grip pads are available
If the sound of grinding is overwhelming, schedule grinding practice for shorter sessions with breaks

Last Updated: 2026-03-19 Content Review: Q1 2026
