Slide 001: Flameworking Fundamentals¶

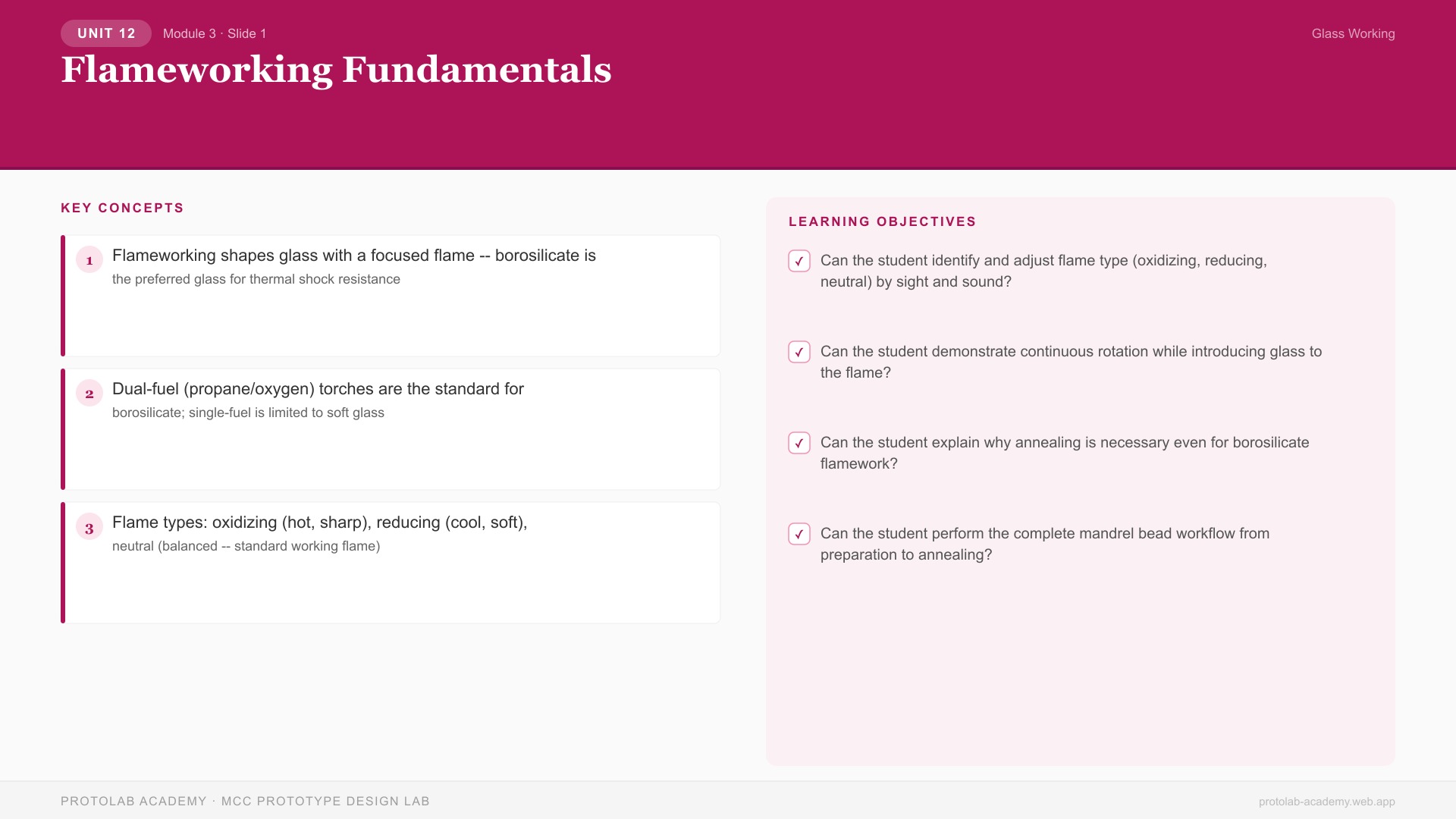

Slide Visual¶

Flameworking Fundamentals

Slide Overview¶

This slide introduces flameworking (also called lampworking or torch work) -- the technique of shaping glass using a focused flame. Students learn torch types, flame chemistry, glass rod manipulation, and the fundamental movements used to create beads, simple sculptures, and functional forms from borosilicate glass.

Instruction Notes¶

Flameworking is the oldest hot glass technique, dating back thousands of years to ancient Egyptian and Mesopotamian bead making. Modern educational flameworking uses bench-mounted torches that mix fuel gas (propane or natural gas) with oxygen to produce a flame hot enough to soften borosilicate glass. The distinction between "lampworking" (historical term, from oil lamp flames used centuries ago) and "flameworking" (modern term) is purely semantic -- they refer to the same technique.

Torch Types and Fuel Systems¶

The two primary torch types students will encounter are:

Single-fuel surface mix torch (e.g., Hot Head, Minor Bench Burner): Simpler design, burns propane or MAPP gas with ambient air (no separate oxygen supply). Produces a lower-temperature flame (approximately 1800-2000F / 982-1093C). Suitable for soft glass (soda-lime, COE 104) and basic borosilicate work. Lower cost ($30-150). Limitations: cannot reach full borosilicate working temperature consistently; limited flame control.

Dual-fuel premix torch (e.g., Nortel Minor, GTT Lynx, Carlisle CC): Mixes propane with compressed oxygen before the burner face. Produces a significantly hotter flame (approximately 3000-3600F / 1649-1982C). Full control over flame chemistry (oxidizing, reducing, neutral). Standard for serious borosilicate work and required for complex forms, tube work, and scientific glass. Cost: $200-800+. Requires an oxygen concentrator ($300-1500) or compressed oxygen tank system.

Fuel system safety requirements: - All fuel connections use left-hand thread (reverse thread) fittings to prevent accidental cross-connection - Flashback arrestors on both fuel and oxygen lines -- prevents flame from traveling back into the supply - Leak testing with soapy water at every connection point before first use of each session - Gas supply shutoff valve accessible from the working position (within arm's reach) - Ventilation: minimum 100 CFM exhaust per torch station, positioned to draw combustion products away from the operator

Flame Chemistry¶

Flame chemistry is critical because it directly affects glass quality. Students must learn to identify and adjust three flame types:

Oxidizing flame (excess oxygen): - Sharp, pointed inner cone; hissing sound; pale blue color - Burns hotter (~3600F at the tip) - Causes boiling and surface bubbles in glass if overused - Produces metallic oxide colors in some glass formulations - Used for: cleanup passes, popping surface bubbles, specific color work

Reducing flame (excess fuel): - Soft, bushy, yellow-orange outer envelope; less distinct inner cone; quieter sound - Burns cooler (~2800F) - Reduces metallic oxides in the glass -- some colors (silver-rich glasses, certain reds and purples) require reduction to achieve their final hue ("striking" colors) - Can deposit carbon soot on the glass surface if too reducing - Used for: color striking, lustering effects, gentle heating

Neutral flame (balanced oxygen and fuel): - Clean, defined inner cone; moderate sound; blue color - Standard working flame for most operations (~3200F) - No chemical effect on the glass surface - Used for: general heating, shaping, joining, most routine work

Teaching the adjustment: Start with fuel only (soft yellow flame), then slowly increase oxygen until the inner cone tightens and the flame turns blue. The transition from reducing to neutral to oxidizing is smooth and continuous. Students must learn to adjust by ear (pitch rises with oxygen) and by visual observation (inner cone sharpens with oxygen).

Fundamental Working Movements¶

Rotation is the most critical skill. The glass rod or piece must rotate continuously in the flame to heat evenly. Without rotation, gravity pulls softened glass downward (glass viscosity at working temperature is approximately 10^4 poise -- it flows readily under gravity). The rotation rate depends on the glass viscosity: colder glass rotates slower; hotter, more fluid glass requires faster rotation to maintain symmetry. Beginners struggle with rotation consistency -- this is the skill that requires the most practice time. A common teaching exercise: rotate a glass rod in the flame for 5 minutes without shaping, focusing only on smooth, consistent rotation.

Introduction is the technique of gradually bringing cold glass into the flame to prevent thermal shock. Even borosilicate (which has much better thermal shock resistance than soda-lime due to lower CTE) must be introduced to the flame gradually. Start at the outer edge of the flame (cooler zone, ~800F) and move into the hot zone over 15-30 seconds. Abrupt introduction causes the surface to expand faster than the interior, generating tensile stress that can crack the rod -- a loud "ping" followed by a piece of glass flying across the studio.

Shaping uses gravity, tools (graphite paddles, mashers, tweezers, raking tools), and the flame itself. The key principle: glass responds to the last force applied. If you shape with a paddle and then rotate in the flame, the flame heat will soften the paddle marks. If you want to preserve a shape, remove the piece from the flame before the surface softens further.

Introductory Project: Mandrel Bead¶

Bead making is the standard introductory project because it teaches all three fundamental movements in a single piece:

Prepare mandrel: Dip thin steel rod (1/16" or 3/32") in bead release compound (kiln wash slurry), dry completely. Bead release prevents the glass from bonding to the steel.
Heat mandrel: Warm the mandrel in the flame until it is too hot to touch but not glowing -- approximately 400-500F. Cold mandrels thermal-shock the glass on contact.
Introduce glass rod: Bring the working end of a glass rod into the flame, rotating, until the tip is molten and glowing orange.
Wind glass onto mandrel: Touch the molten glass tip to the heated mandrel, then rotate the mandrel to wind glass around it. Keep the mandrel in the flame during winding to maintain temperature.
Shape: Use the flame and gravity to round the bead. Rotate continuously. Use graphite tools if desired for specific shapes (cylinder, bicone, lentil).
Anneal: After shaping, the bead MUST be annealed -- either in a kiln (preferred, anneal at 1050F for borosilicate, 960F for soft glass) or in a fiber blanket (acceptable for classroom production, provides slow cooling but not precise annealing).

Workspace Setup¶

The workspace setup for flameworking requires specific attention: - Torch mounted on a fireproof surface (steel table, kiln shelf, or cement board) - Fuel lines secured and leak-tested before each session - Ventilation extracting combustion products and any glass fumes -- 100 CFM minimum per station - Fire extinguisher within 10 feet (ABC-rated) - Clear zone: no flammable materials within 3 feet of the torch in all directions - Hot glass parking area: a kiln shelf or fiber blanket designated for pieces awaiting annealing - IR thermometer for verifying bead release has dried and mandrels are at temperature

Key Talking Points¶

Flameworking shapes glass with a focused flame -- borosilicate is the preferred glass for thermal shock resistance
Dual-fuel (propane/oxygen) torches are the standard for borosilicate; single-fuel is limited to soft glass
Flame types: oxidizing (hot, sharp), reducing (cool, soft), neutral (balanced -- standard working flame)
Continuous rotation is the single most important skill -- prevents gravity drips and ensures even heating
Cold glass must be introduced gradually to the flame edge before moving to the hot zone (15-30 seconds)
Mandrel-wound beads are the standard introductory project -- teach rotation, introduction, and shaping in one exercise
All flameworked pieces must be annealed, even borosilicate -- internal stress causes delayed failure
Workspace requires fireproof surface, secured fuel, ventilation (100 CFM), and fire extinguisher within 10 feet
Flashback arrestors on all fuel lines are non-negotiable safety equipment

Learning Objectives (Concept Check)¶

[ ] Can the student identify and adjust flame type (oxidizing, reducing, neutral) by sight and sound?
[ ] Can the student demonstrate continuous rotation while introducing glass to the flame?
[ ] Can the student explain why annealing is necessary even for borosilicate flamework?
[ ] Can the student perform the complete mandrel bead workflow from preparation to annealing?
[ ] Can the student identify all required workspace safety elements before beginning torch work?

Adaptations for Different Learning Styles¶

Visual Learners¶

Side-by-side flame photographs: oxidizing (sharp cone, pale blue), neutral (clean cone, blue), reducing (bushy, orange-tipped)
Slow-motion video of glass rod introduction to flame, showing the transition from solid to softening to molten
Step-by-step bead-making photo sequence with captions at each stage
Workspace layout diagram showing torch, ventilation hood, hot glass area, fire extinguisher positions

Kinesthetic Learners¶

Flame adjustment exercise: students turn oxygen up and down, observing and listening to the flame change. No glass -- just learning the torch first
Rotation practice with a cold glass rod (no flame) -- rotate for 2 minutes, instructor checks for consistency
First bead attempt within 20 minutes of starting the lesson -- learning by doing is essential for flamework
Mandrel preparation as a warm-up activity: dipping, drying, checking bead release quality

Auditory Learners¶

Flame identification by sound: record audio of oxidizing (hissing), neutral (moderate), and reducing (quiet, almost popping) flames for comparison
Verbal coaching during first bead: "Rotate... keep rotating... now bring it closer... steady... touch the glass to the mandrel... keep rotating..."
Discussion: "What did you hear when your glass cracked? What does that sound tell you about what happened?"

Reading/Writing Learners¶

Torch setup checklist: numbered steps from fuel connection through leak test to flame ignition
Written flame chemistry summary: oxygen-to-fuel ratio, temperature, visual characteristics, sound, applications
Bead-making procedure card at each station with troubleshooting section on the reverse

Standards and References¶

OSHA 29 CFR 1910.253 - Oxygen-Fuel Gas Welding and Cutting: - Covers torch equipment safety requirements applicable to flameworking - Specifies flashback arrestor requirements, fuel line inspection, and storage - Requires cylinders to be secured upright and stored in well-ventilated areas

NFPA 51 - Standard for the Design and Installation of Oxygen-Fuel Gas Systems: - Covers permanent installation requirements for torch systems in educational settings - Specifies piping materials, pressure regulation, and emergency shutoff requirements

OSHA 29 CFR 1910.157 - Portable Fire Extinguishers: - Requires fire extinguisher within 50 feet of Class B hazard (flammable gas); studio standard is within 10 feet of torch - Annual inspection and maintenance required

ANSI Z49.1 - Safety in Welding, Cutting, and Allied Processes: - Section on torch safety, hot work permits, and ventilation requirements - Applicable to flameworking operations in educational and commercial settings

Session Details¶

Time Allocation: 45 minutes (15 min demo/lecture + 30 min supervised practice)
Breakpoints for Discussion:
After torch types: "Why would you choose a dual-fuel torch over a single-fuel? When is single-fuel adequate?" (Answer: dual-fuel for borosilicate and color work; single-fuel for soft glass and simple projects)
After flame chemistry: "You want to strike a ruby red glass. Which flame type?" (Answer: reducing -- excess fuel creates the chemical environment needed to develop the red color)
After rotation demo: "What happens if you stop rotating with molten glass on the mandrel?" (Answer: gravity pulls it into a teardrop/drip -- the bead becomes asymmetric)
After first bead attempt: "What was hardest? What would you do differently?" (Most common answer: maintaining rotation while winding glass)

Discussion Prompts¶

Process Comparison: "How is flameworking different from kiln fusing? Both involve heating glass -- what determines which technique you use for a given project?"
Equipment Decision: "You're starting a flameworking studio on a $500 budget. What's your minimum equipment list?" (Torch, fuel, mandrels, bead release, safety glasses, ventilation fan, fire extinguisher, fiber blanket)
Flame Science: "Why does an oxidizing flame cause bubbles in glass? What's happening at the molecular level?" (Excess oxygen reacts with glass components or trapped gases, creating gas pockets)
Safety Scenario: "You smell gas but can't see a flame. What's your immediate action sequence?" (Turn off gas at the source, ventilate the room, DO NOT ignite anything, evacuate if smell persists)

Instructor Notes¶

Students are often nervous about working with open flame. Normalize the anxiety but enforce strict safety protocols. Fear is appropriate; paralysis is not.
The first 5 minutes of torch time should be flame adjustment only -- no glass. Students must be comfortable controlling the flame before introducing glass.
Rotation is the make-or-break skill. Some students develop it immediately; others need 30+ minutes of practice. Patience is essential -- rushing past rotation produces frustration on every subsequent project.
Have pre-made mandrels with bead release dried and ready -- bead release takes 15-20 minutes to dry, which disrupts pacing if students must prepare their own in the first session
Keep a "bead hospital" (fiber blanket or small kiln) within arm's reach of each torch station. Students must place hot beads in the hospital immediately -- never on the table surface.
SAFETY CALLOUT: Hot glass on a mandrel looks identical to cold glass on a mandrel within 30 seconds of removal from the flame. Establish a "everything from the flame goes to the hospital" rule with zero exceptions.

Common Misconceptions Corrected¶

Myth: "Borosilicate is unbreakable -- it doesn't need annealing." Reality: Borosilicate has better thermal shock resistance than soda-lime, but it still develops internal stress during flameworking. Unannealed borosilicate beads commonly crack 24-48 hours after making -- sometimes explosively.
Myth: "A bigger flame is better." Reality: A larger flame heats a larger area, which makes precise work impossible. For bead making, a focused neutral flame the size of a pencil tip is ideal. Larger flames are used only for larger pieces.
Myth: "You can quench flameworked glass in water." Reality: Rapid cooling of any glass produces extreme thermal shock. Even borosilicate will shatter if quenched from working temperature. All pieces must cool slowly -- kiln anneal or fiber blanket.
Myth: "Flameworking is just for beads." Reality: Flameworking produces scientific apparatus (laboratory glassware), functional pieces (pipes, drinking vessels), sculptures, marbles, pendants, and complex assemblies. Beads are the starting point, not the limit.

Accommodations for Neurodiversity¶

ADHD Support¶

Get to the torch quickly -- 15 minutes of demonstration maximum before hands-on time
Bead making provides immediate, tangible results: a finished bead in 5-10 minutes. This rapid feedback loop supports engagement.
Provide a simple "3-step" card at each station: "1. Rotate. 2. Heat slowly. 3. Shape gently."
Allow students to make multiple beads in rapid succession rather than perfecting one -- volume practice builds skill faster than perfectionist single attempts

Autism Spectrum Support¶

Torch startup is a fixed, numbered procedure: "1. Check connections. 2. Open fuel valve 1/4 turn. 3. Ignite with striker. 4. Adjust fuel to 1-inch flame. 5. Open oxygen slowly. 6. Adjust to neutral."
The relationship between flame adjustment (oxygen knob position) and flame type (oxidizing/neutral/reducing) is logical and reproducible -- explicitly map the knob positions to flame types
Provide exact timing guidance where possible: "Introduce glass to flame edge for 15 seconds, then move 1 inch closer to the center over 10 seconds"

Dyslexia Support¶

Flame type identification chart uses photographs and color coding rather than text descriptions
Bead-making procedure uses numbered photo steps with minimal text
Tool names labeled directly on tools or tool holders with color-coded tags

Sensory Processing Support¶

Torch flames produce a constant hissing/roaring sound (50-70dB depending on torch size) -- offer earplugs
Radiant heat from the torch is significant within 2 feet -- adjust workspace so students can work at comfortable distance
The bright flame can be visually intense -- didymium glasses reduce the sodium flare glare, which some students find more comfortable even at distances where IR protection is not strictly required
Fiber blankets used for bead annealing have a distinctive texture that some students find unpleasant to touch -- provide tongs for placing beads
