Slide 001: Rotary and Sandblast Engraving¶

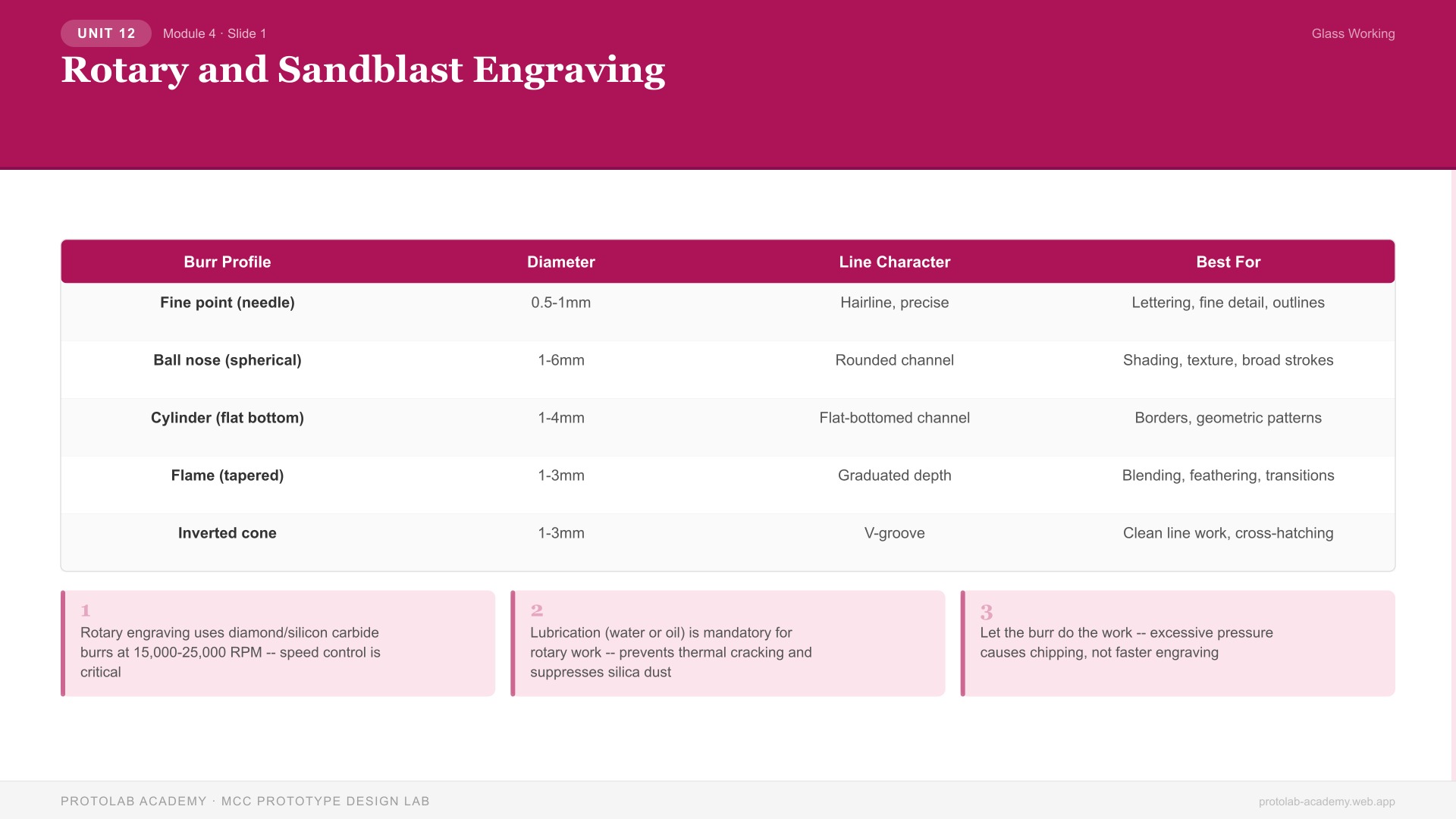

Slide Visual¶

Rotary and Sandblast Engraving

Slide Overview¶

This slide covers the two most accessible mechanical glass engraving methods: rotary engraving (using handheld or bench-mounted rotary tools with diamond burrs) and sandblast engraving (using compressed air and abrasive media with resist masking). Students learn the equipment, technique, and design considerations for each method, including parameter control for consistent results.

Instruction Notes¶

Rotary engraving is the most accessible glass engraving method for educational settings. A rotary tool (Dremel-type or flexible shaft machine) fitted with diamond-coated or silicon carbide burrs abrades the glass surface to create lines, textures, and patterns. The technique is fundamentally a controlled grinding operation at a small scale, and many of the same principles from Module 2 grinding apply: use lubrication, maintain consistent pressure, and respect the material's brittleness.

Rotary Engraving: Equipment and Technique¶

Tool selection: A variable-speed rotary tool is essential. Fixed-speed tools running at 30,000+ RPM are unsuitable for glass -- too fast generates excessive heat and produces rough, chipped cuts. The optimal speed range for most glass engraving is 15,000-25,000 RPM. A flexible shaft attachment provides better control than a handheld body for detailed work, because the motor weight is transferred to a hanger rather than the operator's hand.

Burr selection determines the engraving character:

Burr Profile	Diameter	Line Character	Best For
Fine point (needle)	0.5-1mm	Hairline, precise	Lettering, fine detail, outlines
Ball nose (spherical)	1-6mm	Rounded channel	Shading, texture, broad strokes
Cylinder (flat bottom)	1-4mm	Flat-bottomed channel	Borders, geometric patterns
Flame (tapered)	1-3mm	Graduated depth	Blending, feathering, transitions
Inverted cone	1-3mm	V-groove	Clean line work, cross-hatching

Students should experiment with multiple burr profiles on scrap glass before committing to a project piece. Diamond-coated burrs are the standard -- silicon carbide stones are cheaper but wear faster and produce rougher results.

Speed and pressure control: Too fast generates excessive heat (thermal cracking risk) and produces rough, chipped cuts. Too slow causes the burr to grab and skip across the surface. 15,000-25,000 RPM with light, consistent pressure is the standard. Students should let the burr do the work -- pressing hard does not speed up engraving; it causes chipping and premature burr wear. A useful teaching cue: "The weight of the tool is enough pressure."

Lubrication with water or light oil serves the same functions as in Module 2 grinding: dust suppression (critical for silica hazard prevention), cooling, and cleaner cuts. For handheld work, a small water drip system, a wet sponge pad under the work, or periodic manual application with a brush is sufficient. For bench-mounted work, a recirculating water system is preferred. Dry rotary engraving produces silica dust and requires P100 respiratory protection and LEV.

Sandblast Engraving: Mechanism and Equipment¶

Sandblast engraving uses a fundamentally different mechanism: instead of a rotating abrasive tool, it directs a stream of abrasive particles at the glass surface under compressed air pressure. The particles impact the glass and remove material through micro-fracturing. The result is a frosted, matte surface where the blast contacts the glass, contrasting with the clear, polished areas protected by resist material.

The sandblast process requires three components:

Compressor: Providing 40-90 PSI. A minimum 3 HP compressor with a 20+ gallon tank is recommended for consistent pressure during extended blasting sessions. Smaller compressors cycle too frequently and produce inconsistent results.
Blast cabinet or blast gun: A blast cabinet (enclosed box with gloves, viewing window, and dust collection) is the standard for educational settings -- it contains the abrasive media and silica dust. Blast guns (open-air) require full respiratory protection, hearing protection, and a designated blast area. Cabinet blasting is strongly preferred in educational settings.
Abrasive media: Common media for glass:

Media	Aggressiveness	Finish	Mesh Size	Best For
Aluminum oxide	High	Deep frosted	80-220	Deep carving, fast etching
Silicon carbide	Very high	Deep, sharp	60-180	Fastest cutting, hardest glass
Glass bead	Low	Satin, soft	100-325	Light surface etch, gentle finish
Garnet	Medium	Moderate frost	80-150	General purpose, economical

Masking (Resist Application)¶

Masking is the design skill in sandblasting. Vinyl resist film is the standard material: self-adhesive, available in various thicknesses: - 3-mil: light surface etch, single-stage designs - 5-mil: moderate depth carving, multi-stage capable - 10-mil+ (often called "blast mask"): deep multi-stage carving, extended blast times

The design is cut into the resist using a vinyl cutter (digital, from vector artwork -- Silhouette, Cricut, or commercial plotters) or by hand with a craft knife (for simple designs). The resist protects covered areas while the exposed areas receive the blast.

Multi-stage carving is an advanced technique: remove resist in stages, blasting deeper in some areas and shallower in others to create three-dimensional relief effects. Stage 1: blast entire exposed area lightly. Stage 2: remove additional resist from areas intended to be deeper. Stage 3: blast again. Each stage adds depth to the previously exposed areas while starting fresh on newly exposed areas. The result is graduated depth that creates shadow, dimension, and photographic-quality relief.

Blast Parameters¶

Parameter	Range	Effect
Distance	4-12 inches	Closer = faster, more aggressive; farther = softer, more even
Pressure	40-90 PSI	Higher = faster cutting, coarser texture
Media type	See table above	Determines aggressiveness and surface texture
Nozzle size	3/32" - 1/4"	Smaller = more precision; larger = faster coverage
Duration	15 sec - 5+ min	Controls depth: 15-30 sec for surface etch, 2-5 min for deep carving

Skilled sandblast artists work at 6-8 inches distance, 50-70 PSI, and control depth by timing. The operator must keep the blast moving evenly to avoid creating hotspots that cut deeper than intended. A consistent sweeping motion (like spray painting) produces the most even results.

Key Talking Points¶

Rotary engraving uses diamond/silicon carbide burrs at 15,000-25,000 RPM -- speed control is critical
Lubrication (water or oil) is mandatory for rotary work -- prevents thermal cracking and suppresses silica dust
Let the burr do the work -- excessive pressure causes chipping, not faster engraving
Sandblasting removes material through micro-fracture impact -- produces frosted matte finish
Vinyl resist masking is the design element in sandblasting -- protects areas that stay clear
Media selection determines aggressiveness: aluminum oxide > silicon carbide > glass bead
Depth is controlled by distance, pressure, media type, nozzle size, and duration
Multi-stage resist removal creates 3D relief effects in deep sandblast carving
Cabinet blasting is required in educational settings -- contains dust and media

Learning Objectives (Concept Check)¶

[ ] Can the student select appropriate burr profile and speed for a given rotary engraving design?
[ ] Can the student explain the sandblast masking process and how resist thickness affects capability?
[ ] Can the student identify the variables that control sandblast depth and texture?
[ ] Can the student set up and operate a blast cabinet with correct parameters for a given media type?
[ ] Can the student plan a multi-stage sandblast carving sequence?

Adaptations for Different Learning Styles¶

Visual Learners¶

Burr profile chart with photographs of the engraving character each burr produces on glass
Side-by-side comparison of sandblast results at different pressures and distances
Video of multi-stage carving process showing resist removal and progressive deepening
Before/after photographs: flat glass -> resist applied -> first blast -> resist removed -> second blast -> finished piece

Kinesthetic Learners¶

Rotary practice on scrap: students try each burr profile, writing their name or a simple design to calibrate speed and pressure
Vinyl resist application practice: students apply, cut, and peel resist on flat glass before blasting
Blast cabinet operation: students set up media, adjust pressure, and blast a test piece with timing control
Comparison exercise: blast the same design at 40 PSI and 70 PSI, then compare depth and texture

Auditory Learners¶

Rotary engraving by sound: correct speed produces a smooth, consistent hiss; too fast produces a high-pitched whine; too slow produces intermittent grabbing sounds
Sandblasting by sound: consistent blast = even coverage; fluctuating sound = pressure variation (compressor cycling)
Discussion: "What advantages does sandblasting have over rotary engraving? When would you choose each?"

Reading/Writing Learners¶

Parameter reference card for both rotary and sandblast engraving (speeds, pressures, media types, distances)
Design planning worksheet: students plan a sandblast project including resist type, media selection, blast parameters, and staging sequence
Written comparison: "List three advantages and three limitations of rotary engraving vs. sandblast engraving"

Standards and References¶

OSHA 29 CFR 1910.94 - Ventilation: - Section on abrasive blasting ventilation requirements - Blast cabinets must have exhaust ventilation and dust collection systems - Open-air blasting requires respiratory protection and area isolation

OSHA 29 CFR 1910.1053 - Respirable Crystalline Silica: - Sandblasting glass produces silica dust -- enclosed cabinet blasting with dust collection is the required engineering control - If open-air blasting is performed (not recommended in educational settings), full respiratory protection program is required

OSHA 29 CFR 1910.95 - Occupational Noise Exposure: - Sandblasting generates noise levels of 85-100+ dB depending on equipment and media - Hearing protection required above 85 dB (8-hour TWA) - Blast cabinet operation typically requires hearing protection

NIOSH Publication 2002-109 - Preventing Silicosis and Deaths from Sandblasting: - Comprehensive guidance on silica hazards specific to sandblasting operations - Recommends enclosed blasting (cabinets) as the primary engineering control

Session Details¶

Time Allocation: 40 minutes (15 min lecture/demo + 25 min supervised practice)
Breakpoints for Discussion:
After rotary burr selection: "You want to engrave a detailed portrait on a wine glass. Which burr profiles and sizes do you need?" (Answer: fine point for outlines, ball nose for shading, flame for blending)
After sandblast media: "A client wants a subtle, soft frosted logo. Which media do you choose?" (Answer: glass bead at low pressure -- produces soft satin finish, not deep aggressive etching)
After resist masking: "Your design has areas that need to be 3mm deep and areas that need to be 1mm deep. How many stages do you need?" (Answer: at least two -- blast shallow areas first, mask them, then continue blasting deep areas)
After blast parameters: "You're getting uneven frosting -- darker in the center, lighter at the edges. What are you doing wrong?" (Answer: not sweeping evenly, dwelling too long in the center)

Discussion Prompts¶

Method Selection: "A customer wants their company logo on 500 drinking glasses. Which method -- rotary or sandblast -- and why?" (Sandblast -- faster, more consistent, easily repeatable with vinyl resist from a vinyl cutter)
Safety vs. Access: "A small home studio wants to do sandblasting but can't afford a blast cabinet. What are their options and what are the risks?"
Design Challenge: "You want to create a photographic-quality portrait on a glass panel. Describe your process from photo to finished piece."
Material Science: "Why does sandblasting produce a frosted surface? What's happening to the glass at a microscopic level?" (Micro-fractures create irregular surface geometry that scatters light instead of transmitting it)

Instructor Notes¶

Start with rotary engraving before sandblasting -- rotary gives students direct, immediate feedback on their technique and introduces the concept of controlled material removal
For rotary practice, provide flat glass pieces (not curved) for the first session -- curved surfaces require additional technique that confuses beginners
The blast cabinet is intimidating for first-time users. Walk each student through the setup and first blast individually before turning them loose
Common sandblast error: blasting too close at too high pressure. The result is deep, uneven pits instead of smooth frost. Start students at 8 inches and 50 PSI and let them adjust from there
Vinyl resist application is a skill in itself -- air bubbles under the resist cause unprotected spots that blast through. Demonstrate the squeegee technique for bubble-free application
SAFETY CALLOUT: Blast cabinet gloves must be inspected before every use. A pinhole in a blast glove directs abrasive media onto bare skin at high velocity -- this causes immediate tissue damage. Replace gloves at the first sign of wear.

Common Misconceptions Corrected¶

Myth: "Higher RPM means faster rotary engraving." Reality: Higher speed generates more heat and produces rougher, more chipped results on glass. The optimal range (15,000-25,000 RPM) balances cutting speed with surface quality.
Myth: "Sandblasting is just pointing the nozzle and blasting." Reality: Consistent distance, pressure, angle, and sweeping speed all affect the result. Sandblasting requires as much skill as rotary engraving -- just different skills.
Myth: "You can sandblast without a cabinet if you wear a mask." Reality: An N95 mask is insufficient. Open-air sandblasting of glass requires P100 respiratory protection, hearing protection, blast suit, face shield, and area isolation. A cabinet is not optional in educational settings.
Myth: "Thicker resist is always better." Reality: Thicker resist protects against deeper blasting but is harder to cut precisely. For light surface etching, 3-mil resist provides cleaner detail than 10-mil resist.

Accommodations for Neurodiversity¶

ADHD Support¶

Rotary engraving provides immediate, visible results -- each stroke produces a visible mark, maintaining engagement
Provide multiple small scrap pieces rather than one large project piece -- completing several small engravings feels more productive than working on one large piece
Sandblasting produces dramatic results quickly (15-30 seconds for a surface etch), providing rapid visual feedback

Autism Spectrum Support¶

Parameter tables provide exact values for speed, pressure, distance, and media type -- eliminate ambiguity
Vinyl resist application follows a precise, repeatable sequence: clean surface, position resist, squeegee from center outward, trim edges
The blast cabinet has consistent, controllable variables -- students can experiment systematically by changing one variable at a time

Dyslexia Support¶

Burr profile chart uses photographs paired with example engravings rather than text descriptions of line character
Blast parameter reference card uses icons: pressure gauge icon for PSI, ruler icon for distance, clock icon for duration
Vinyl resist types marked with color-coded strips on the rolls: thin = yellow, medium = orange, thick = red

Sensory Processing Support¶

Blast cabinets are loud (70-90 dB) -- hearing protection is recommended even when not required by OSHA standards
The vibration of the rotary tool can be uncomfortable for extended periods -- offer frequent breaks and show students how to hold the tool to minimize transmitted vibration
Blast media ricocheting inside the cabinet produces a continuous rattling sound -- some students may prefer to observe rather than operate initially

Last Updated: 2026-03-19 Content Review: Q1 2026
